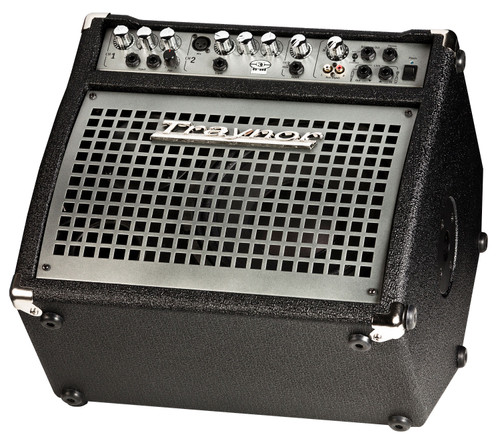

Traynor K1 Keyboard Amplifier (Discontinued)
Part # K1
Model # K1

The Traynor K1 Keyboard Amplifier offers comprehensive features and crystal clear acoustic reproduction in an ultra compact combo amplifier format. Built for maximum versatility, the 120 watt K1 can be used upright for projecting across a stage.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Traynor K1 Keyboard Amplifier offers comprehensive features and crystal clear acoustic reproduction in an ultra compact combo amplifier format. Built for maximum versatility, the 120 watt K1 can be used upright for projecting across a stage, on a typical speaker stand when used as a single speaker micro PA, or as a personal wedge monitor, tucking easily under a keyboard rig on even the most crowded stage.

The simple yet effective input section of the K1 provides one stereo input with EQ, a second full function mono channel with XLR combi-jack microphone jack and EQ, a third mono channel with 1/4-inch TRS balanced input, and an additional pair of RCA auxiliary inputs, ideal for CD or MP3 Player.

The K1 uses a single 10-inch low frequency woofer and a 4.75-inch high frequency driver in the 120-watt mono combo. A Link jack in the master section allows two K1's to be connected together, combining the full mixing functions of both units when creating a true stereo 240-watt system. Classic K Series features such as a balanced Line output, speaker-canceling headphone jack, all metal bar handles and speaker standmount adaptor are included.

The Traynor K1 Keyboard amplifier is built in North America using solid marine grade cabinet construction and an all-metal punched grill to protect the high quality speaker components. Like all amplifiers in the Series, Yorkville's Two Year Unlimited Warranty covers the Traynor K1.

Features

Features

  • Ultra compact 120-watt wedge format keyboard amplifier
  • Full Mixer Features on Input
  • Stereo Link Function
  • Integrated Standmount Adaptor
  • Rubber feet on bottom and sides for convenient, compact storage
  • Full punched metal grille
  • Headphone and 1/4" Balanced Post-EQ, Pre-Master Line Outs
  • Solid plywood cabinet construction, not MDF or particle board
Specification
Cabinet Program Power (Watts)120 Watts
Cabinet Impedance (Ohms)4
Power @ min. impedance (Watts)150
Speaker Configuration - LF (Size / Power)10-inch/150 Watts
Speaker Configuration - HF (Size / Power)2.5/50-watt
Frequency Response (Hz +/-3dB)20 - 20k
Inputs4 (incl. Stereo Aux)
Channel 1 - inputsStereo, 2 X 1/4-inch inputs
Channel 1 - controlsGain, 2 Band Eq, Pan control
Channel 2 - inputsMono 1/4-inch input
Channel 2 - controlsGain, 2 Band EQ.
Channel 3 - inputsMono 1/4-inch input
Input Sensitivity (mV)250 (1Vrms on Aux)
Line Out (type / configuration)Mono Balanced + Gnd Lift Sw./1/4-inch jack
Line Out Sensitivity (Vrms)1
LED IndicatorsPower
Other FeaturesLINK: 2 jacks (link-out and link-in) used with two K1''s only.Stereo RCA Aux Input
Dimensions (DWH, inches)16" (400 mm) x 18" (460 mm) x 14" (350 mm)
Weight30 lbs (14 kg)
