- Description
Details

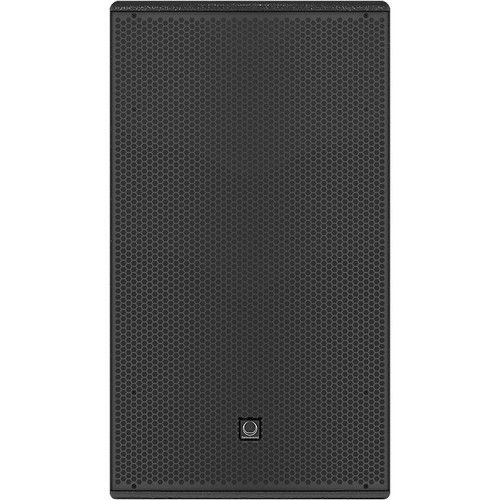

Weather resistant for outdoor use to IP54, the 2,000W TCS115B-R is a front-loaded 15" subwoofer system designed for a wide range of fixed installation and portable PA applications. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the TCS115B-R provides optimal low-frequency reinforcement when used in conjunction with all TCS Series loudspeakers.
A bass reflex port design enclosure, with a high power, double suspension 15" low-frequency driver that utilizes a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, better heat dissipation, higher power handling capacity, and improved efficiency. The TCS115B-R provides fast and accurate transient response for virtually distortion-free operation – even in your most demanding performances.
Finished in a highly durable semi-matte black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple internal rigging points allow bracket mount and suspension in any orientation. A dedicated range of fly plates and coupler kits are also available separately for constructing tightly packed custom full-range and subwoofer enclosure arrays for aesthetically pleasing and venue specific coverage requirements. Connectivity is provided in the form of a captive cable tail, which enters the cabinet by means of a sealed cable gland on an aluminum panel.
- Features
Features
- Front-loaded subwoofer for installation applications
- 500W continuous, 2,000W peak power
- All components weather resistant to IP54 for outdoor use
- Double suspension 15" low-frequency driver with inside/outside wound coil
- Low distortion bass reflex port design
- 15 mm (5/8") birch plywood enclosure with hard-wearing semi-matte black paint finish
- Architecturally styled powder coated perforated plated steel mesh grille with foam backing
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Captive cable tail with sealed cable gland on the aluminum connector panel
- 10-Year Warranty Program
- Designed and engineered in the U.K.
- Specification
Dimensions (H x W x D) 32.9" (834 mm) x 18.5" (469 mm) x 17.8" (452 mm) Weight 74.7 lbs (33.9 kg) - Documents
