Turbosound DUBLIN TCX-10WH 10" -Way Weather-Resistant Loudspeaker (Discontinued)
Turbosound DUBLIN TCX-10WH 10" -Way Weather-Resistant Loudspeaker (Discontinued)
Turbosound DUBLIN TCX-10WH 10" -Way Weather-Resistant Loudspeaker (Discontinued)
By Turbosound

Turbosound DUBLIN TCX-10WH 10" -Way Weather-Resistant Loudspeaker (Discontinued)

Write a Review
Part #:
DUBLIN TCX-10WH
Model #:
DUBLIN TCX-10WH
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

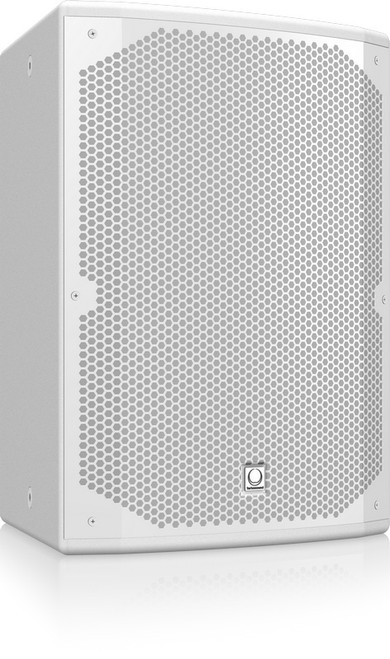

The Turbosound DUBLIN TCX-10WH 10 inch Loudspeaker is a 2 way loudspeaker for portable PA and installation applications. It is 2 way loudspeaker for portable PA and installation applications and features a high excursion 10" low frequency driver with low mass voice coil for improved transient response.

Description

The Turbosound DUBLIN TCX-10WH 10 inch Loudspeaker is a 2 way loudspeaker for portable PA and installation applications. It is 2 way loudspeaker for portable PA and installation applications and features a high excursion 10" low frequency driver with low mass voice coil for improved transient response. It has 1" high temperature dome compression driver with extended high frequency reproduction. The Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays.

Features
  • 2 way loudspeaker for portable PA and installation applications
  • 250 Watts continuous, 1000 Watts peak power
  • High excursion 10" low frequency driver with low mass voice coil for improved transient response
  • 1" high temperature dome compression driver with extended high frequency reproduction
  • Rotatable converging elliptical waveguide provides 90° H x 60° V dispersion
  • M10, M8 and M6 rigging points compatible with TURBOSOUND and OmniMount brackets
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Concealed pole mount socket enables mobile applications
  • Integral handle for lifting and carrying
  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matt white paint finish
  • Powder coated perforated steel mesh grille with foam backing
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Specifications
COMPONENTS 1 x 10” (254mm) LF driver, 1 x 1” (25mm) HF driver on a Converging Elliptical Waveguide
FREQUENCY RESPONSE 100Hz - 20kHz ±3dB, 68Hz - 20kHz ±10dB
NOMINAL DISPERSION 90°H x 60°V @-6db points
POWER HANDLING 250 watts r.m.s., 500 watts program
SENSITIVITY 95dB 1w @ 1m
MAXIMUM SPL 119dB continuous, 125dB peak
NOMINAL IMPEDANCE 8 ohms
CROSSOVER 2k5Hz
CONSTRUCTION 15mm (5/8”) birch plywood, finished in black semi-matt textured paint
GRILLE Powder coated perforated mild steel
OPTIONS White semi-matt textured paint
DIMENSIONS (H x W x D) 19.4” x 14.6” x 13.1” (492 mm x 370 mm x 332 mm)
NET WEIGHT 33.2 lbs (15.1 kg)

Related Products

Sold Out
Turbosound NuQ-10DP 10" Powered Loudspeaker (Discontinued) Turbosound NuQ-10DP 10" Powered Loudspeaker (Discontinued)

Turbosound NuQ-10DP 10" Powered Loudspeaker (Discontinued)

The NuQ-10DP features a new generation of innovative Class D power amplifier module, utilizing revolutionary 96kHz DSP technology. It consists of a front loaded 10" neodymium LF driver and...
MSRP: $1,839.99
$1,599.99

Usually arrives in 5-9 business days.

MSRP: $1,839.99
$1,599.99
Sold Out
EAW SMS5 5" 2-Way Weather Resistant Surface-Mounted Loudspeaker (Discontinued)

EAW SMS5 5" 2-Way Weather Resistant Surface-Mounted Loudspeaker (Discontinued)

Careful acoustic design and the use of advanced materials contribute to the exceptional music fidelity and speech intelligibility exhibited by the EAW Commercial SMS5 (black) and SMS5W (white)...
$0.00

Usually arrives in 5-9 business days.

$0.00
Sold Out

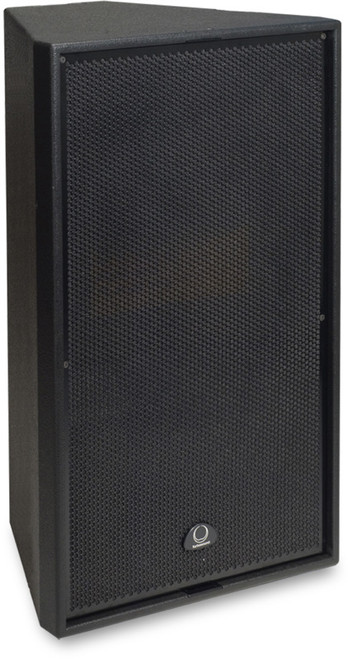

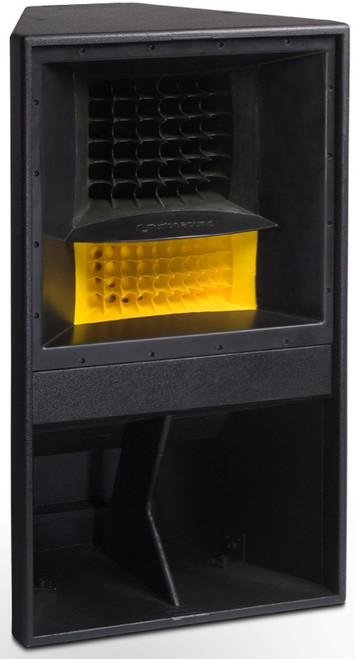

Turbosound TA-500 15" Loudspeaker (Discontinued) Turbosound TA-500 15" Loudspeaker (Discontinued)
