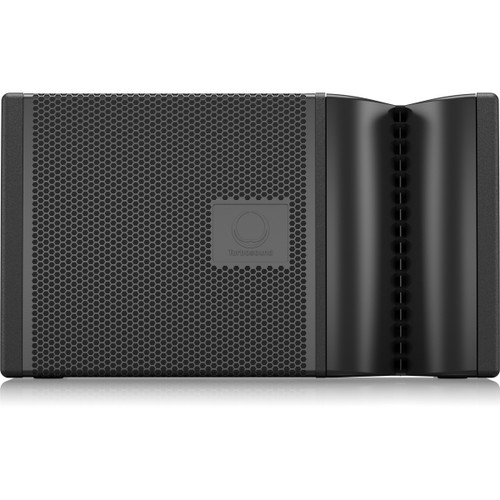

Turbosound BERLIN TBV123 Arrayable 2-Way 12" Constant Curvature Loudspeaker with Dendritic Waveguide
The 2-way full range TBV123 is an arrayable, switchable passive/biamplified 2,400W 12" loudspeaker system that is ideally suited for touring, portable, and installed sound reinforcement applications. Designed to work in conjunction with LAKE DSP and LAB GRUPPEN amplification, the TBV123 provides optimal performance for FOH, offstage fill, stereo in-fill or distributed fill applications in a wide range of venues – including nightclubs, concert halls, houses of worship, and more.
Custom-Engineered Drivers
TURBOSOUND is recognized worldwide for designing and building some of the most iconic loudspeakers and subwoofers. The TBV123 loudspeaker features a carbon fiber loaded 12" neodymium low-frequency driver, and dual aluminium dome 1" neodymium motor compression drivers mounted on a 100° horizontal by 15° vertical dispersion constant curvature Dendritic waveguide, which maximizes the direct sound field while reducing reverberant energy.
Plywood Construction
Finished in a highly durable semi-matt black paint, the cabinet is constructed from 18 mm (3/4") plywood with a rugged powder-coated perforated steel mesh grille backed with reticulated foam, a convenient dual angle 35 mm pole/speaker stand mount for accurate audience coverage, and a durable handle for easy transport. The TBV123 includes integral suspension hardware for efficient array configuration and aiming, plus multiple internal M10 mount points that allow eyebolt suspension in any orientation.
Touring-Grade Performance
Designed to provide exceptional performance for traveling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,400W TBV123 puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.
