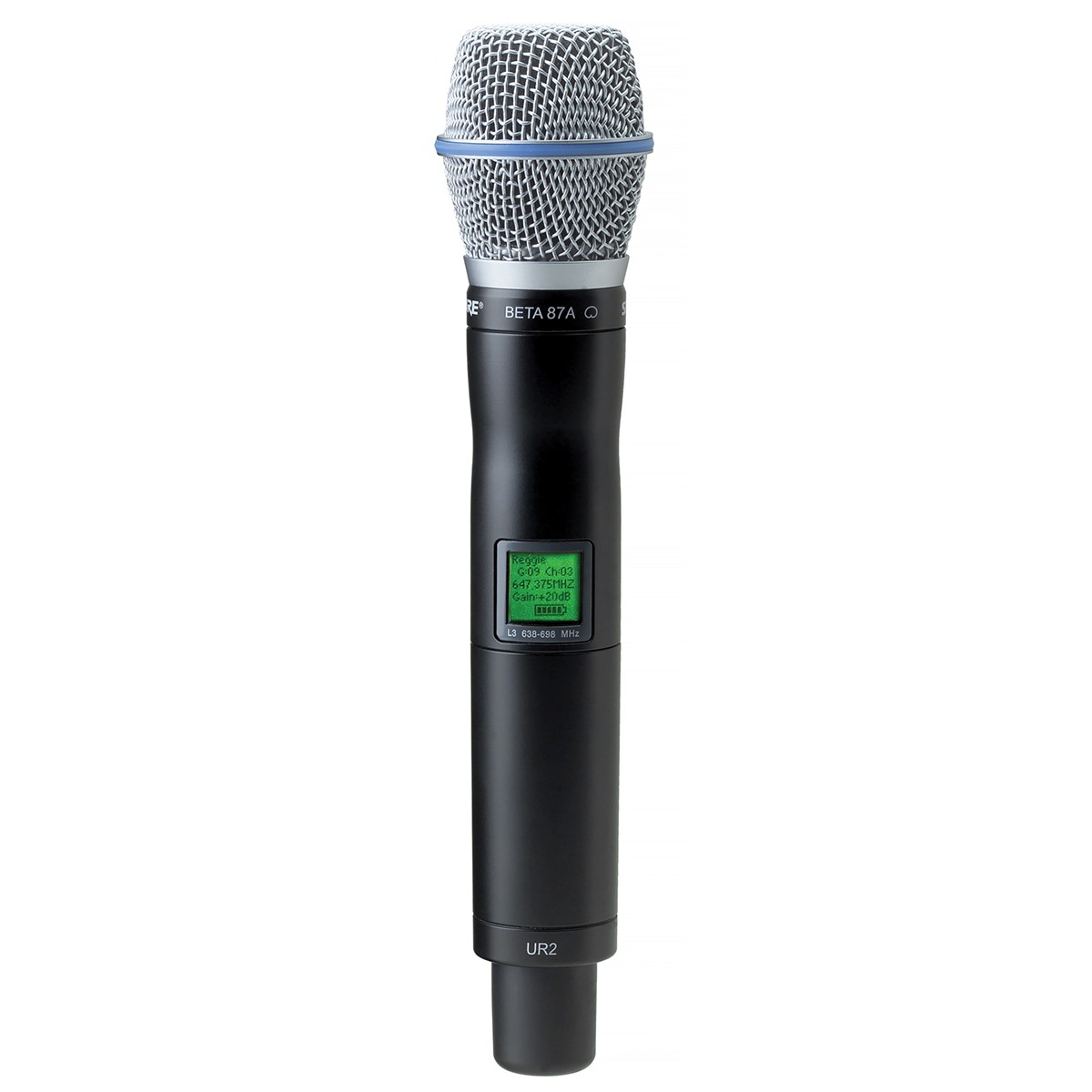

Shure UR2/BETA87A Handheld Wireless Microphone Transmitter (Discontinued)

Description

With an interchangeable BETA®87A microphone cartridge, the UR2/BETA87A features rugged, lightweight construction and an antenna design which advances RF transmission reliability.

The UR2/BETA87A Handheld Wireless Microphone Transmitter works with UHF-R Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

• Switchable RF power
• Frequency and power lockout
• Bit-mapped backlit LCD
• Infrared automatic transmitter sync
• All metal die-cast construction

Specifications

Gain Adjustment Range	–10 to +20 dB
Maximum Input Level	+4.8 dBu
Input Impedance	> 1 MΩ
Output Impedance	50 Ω
RF Power Output	10 mW or 10/50 mW (Region Dependent)
Housing	Aluminum Die-Cast Handle and Aluminum Machined Battery Cup
Power Requirements	2 AA Alkaline
Battery Life (Typical)	6 Hours (High Power), 9.5 Hours (Low Power)
Dimensions (Dia x L)	2" (51 mm) x 10" (254 mm)
Net Weight	0.6562 lbs (0.298 kg)

DOCUMENTS

In The Box

• (1) UR2/BETA87A Handheld Wireless Microphone Transmitter
• (1) Microphone Clip
• (1) Zipper Bag
• (2) AA Batteries
• (1) User Guide
