Inside the Design
This warehouse PA system elevates the audio experience in your manufacturing plant or distribution center. The twelve H6 horn speakers are designed to deliver unparalleled voice clarity and wide 90° x 90° coverage, ensuring clear communication throughout large spaces. These weatherproof loudspeakers stand strong in any environment. The MX9 9-channel rack mount mixer offers seamless Bluetooth connectivity and built-in effects for wireless streaming and precision sound enhancement. The heart of this PA system for warehouse environments lies in the DA2500 500W dual-impedance rack mount power amplifier, delivering consistent power to the speakers while adapting effortlessly to different configurations for optimized performance. Completing this system is the reliable PTT1 push-to-talk microphone, ensuring crystal-clear communication for important announcements and paging.
Ensuring clear speech intelligibility is critical to any sound system, especially in warehouse environments where effective communication is crucial. Whether coordinating a busy manufacturing line, directing warehouse operations, or organizing large employee gatherings, this warehouse sound system delivers unmatched sound quality, adaptability, and ease of use. Designed for seamless, clear communication, this warehouse audio setup features a rugged tabletop push-to-talk gooseneck microphone. With superior voice capture and adjustable gooseneck positioning, this paging microphone enables managers to effortlessly communicate with unparalleled clarity and detail. This exceptional configuration seamlessly blends superior sound quality with operational efficiency to enhance the warehouse environment.
Sound System Features:
- Built to withstand harsh conditions, the H6's IP66 weatherproof rating and polypropylene carbonate enclosure provide complete protection against dust, water, and impacts for reliable performance in demanding environments
- Professional quality mixer features Bluetooth audio streaming, MP3, USB with sound card function, and recording. Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects
- The 9-channel mixer consists of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs
- High-performance switching power supply and Class-D type power amplifier with two 500-watt channels (at 70V and 4½) with 70-volt and 4, 8, or 16-ohm output switches
- Unique dual-impedance operation with independent 4-16½ and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
- The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and warehouse applications
About the System Components

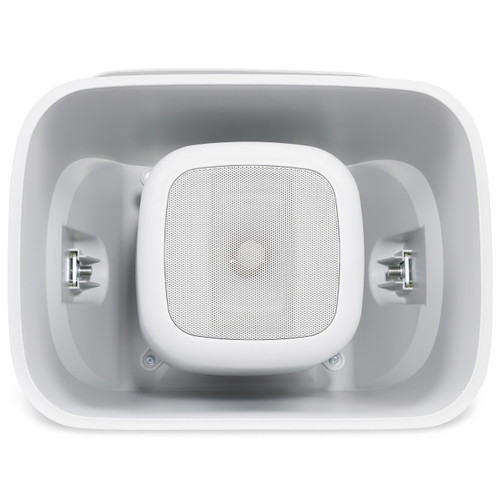

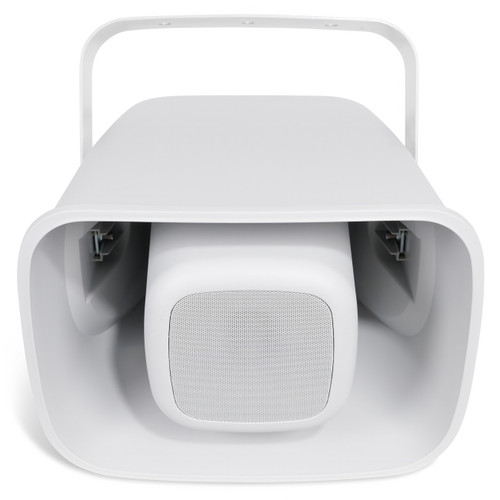

H6 6.5" All-Weather Horn Loudspeakers
The Pure Resonance Audio H6 horn-loaded loudspeaker is a durable and reliable choice for public address systems in challenging environments. Constructed from polypropylene and calcium carbonate, it delivers high-quality paging and announcements over long distances, even in extreme conditions. With an IP66 rating and impact-resistant housing, the H6 is protected against dust, dirt, water, and environmental impacts. Ideal for settings like manufacturing plants, distribution centers, and other warehouse applications, it provides clear speech with power taps up to 60 watts and a wide 90° x 90° coverage angle. Featuring a 6.5" woofer and a 1" tweeter, it offers high-output sound with a frequency response of 120Hz - 18kHz and 93 dB SPL sensitivity. The built-in 60W 70V/100V transformer and heavy-duty mounting bracket ensure flexible, secure installation, making the H6 a practical solution for various applications.

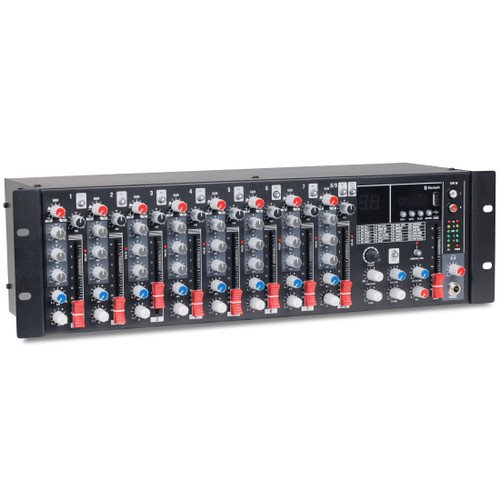

MX9 9-Channel Mixer with Bluetooth & Effects
The Pure Resonance Audio MX9 redefines the rack mount audio mixer, offering versatile mixing, effects, and control of 9 mixing channels, all conveniently packaged in a space-saving 3U chassis. This rack-mounted mixer provides a wide range of inputs with the ability to adapt to virtually any audio source. The MX9 features an onboard 24-bit DSP effects processor, allowing users to quickly and easily add a range of effects to their mixes with simple channel operation. In addition, the generously equipped 9-channel rack mount mixer includes a media player with a display screen that supports Bluetooth audio streaming, MP3, and USB. Featuring an extensive connectivity range for true versatility and professional sound quality, the MX9 is perfect for both fixed installations and mobile rigs.

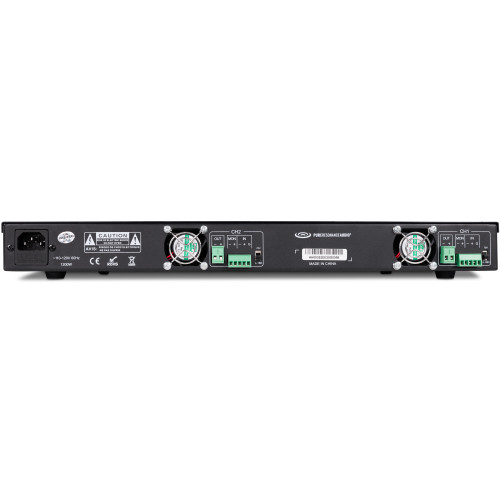

DA2500 Dual-Impedance 500W Power Amplifier
The Pure Resonance Audio DA2500 is a dual-impedance 2-channel Class-D power amplifier with a built-in high-efficiency selectable impedance power supply. Each powerful 500-watt channel has an independent 70V/4-16½ switch allowing them to simultaneously use a different impedance, delivering more flexibility in various commercial applications. This high-performance rack mount audio amplifier is a cost-effective solution housed in a standard 1U 19" lightweight chassis. The DA2500 features short-circuit, overload, and overheating protection with cooling fans to provide heat dissipation, maintaining safe operation in environments with long working hours.

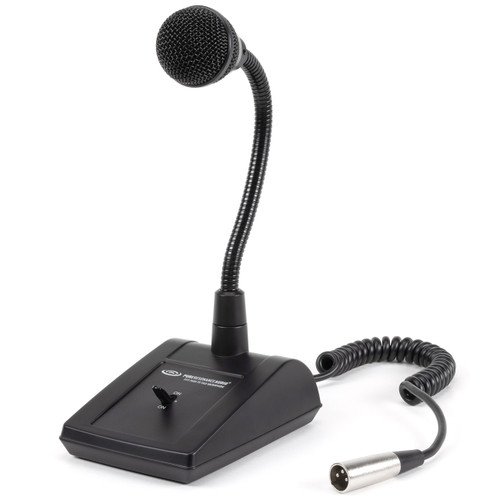

PTT1 Push-to-Talk Paging Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your baseball field sound system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in tough environments.
