Inside the Design
This warehouse sound system combines sixteen weather-resistant PD6 6.5" pendant mount loudspeakers with a powerful RMA500BT Bluetooth rack mount mixer amplifier and PTT1 push-to-talk microphone for paging. The down-firing design of the PD6 pendant speakers directs crystal-clear high fidelity audio in an evenly distributed 150° wide coverage pattern, ensuring your entire space is encompassed in sound. The 500 watt rack mount mixer amplifier is slim and lightweight but has the power to handle a variety of applications. With the RMAs forced air-cooling fan, this warehouse speaker system is ready to work overtime in your open-architecture high ceiling environment and covers approximately 8,000 SF. The durable push-to-talk microphone is excellent for reliable paging and announcements.
For this system, we recommend tapping the PD6 pendant speakers at 16W each. If you have any questions please contact our sales engineers at (888) 256-4112 or sales@proacoustics.com.
Sound System Features:
- The down-firing design of the PD6 pendant mount speaker directs evenly distributed high fidelity sound 150° of coverage
- These treated speakers and two-layer, powder-coated grilles bring high-performance audio and vocal clarity to both indoor and outdoor sound systems
- The RMA500BT 5-channel, 4 Ohm/70 Volt Bluetooth commercial rack mount mixer amplifier provides 500 watts of high-performance Class H power
- The RMA500BT features a forced air-cooling fan, which helps accommodate the long working hours of your warehouse
- The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
- In the event of an emergency, you can quickly use the emergency input to stop all other audio transmissions. This input takes priority letting any integrated emergency voice alarm system be heard loud and clear
About the System Components

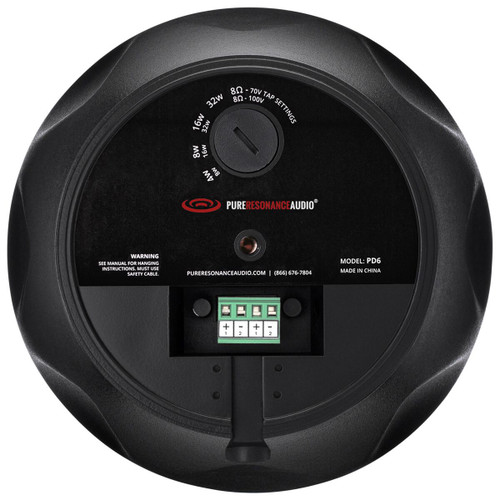

Pure Resonance Audio PD6 6.5" Hanging Pendant Speakers
Designed to meet the needs of indoor and outdoor open-ceiling commercial applications, the Pure Resonance Audio PD6 6.5" full-range pendant speaker is weather-resistant, high powered and easy to install. This 70-volt hanging ceiling speaker is perfect for any open-architecture high ceiling environment where paging, announcements or foreground and background music is required.

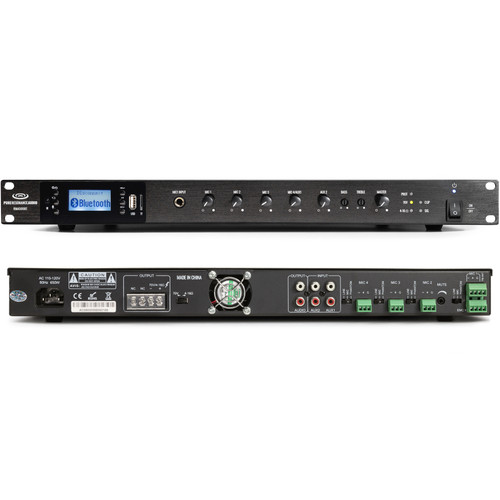

Pure Resonance Audio RMA500BT 500W Bluetooth Mixer Amplifier
The simple to operate Pure Resonance Audio RMA500BT 5-channel commercial rack mount mixer amplifier features 500 watts of high-performance power encased in a slim and lightweight space-saving design. This mixer amplifier provides quick and easy Bluetooth connection as well as the ability to accommodate most input sources like microphones, AV equipment, or computer audio. Adjust the audio levels/settings and control the volume to the PD6 speakers with the included remote control. Not only can you connect your Bluetooth device to the mixer amplifier's multimedia player you can also use an SD card, USB thumb drive, or the built-in FM tuner. The forced air-cooling fan helps accommodate long working hours making this compact and affordable mixer amplifier perfect for your warehouse, factory, or any other open ceiling application where background music, paging, or announcements are needed.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
Pure Resonance Audio PTT1 Push-To-Talk Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your warehouse, factory, or distribution center. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in commercial environments.
