Inside the Design
This warehouse sound system delivers exceptional audio performance for industrial and commercial environments. Equipped with two Pure Resonance Audio S10 10" 70V compact full-range all-weather loudspeakers, it provides wide 90° x 90° coverage for both voice and music. The RMA240BT 5-channel rack-mount Bluetooth mixer amplifier powers the system while allowing for streaming from Bluetooth devices, USB, TF cards, and FM radio. The AtlasIED IPS-ZC4 IP-to-analog four-zone PoE gateway replaces the SIP server for seamless multi-zone paging integration. The system also includes a PTT1 desktop push-to-talk microphone, providing reliable communication and paging capability for warehouses, factories, and similar commercial spaces.
Sound System Features:
- Highly weatherproof S10 loudspeakers with IP66 rating for reliable operation in harsh indoor and outdoor environments
- Wide 90° x 90° coverage angle for full-range music and paging across large warehouse spaces
- RMA240BT 240W rack-mount mixer amplifier supports Bluetooth, USB, TF card, and FM media playback
- Multi-zone paging enabled via AtlasIED IPS-ZC4 PoE gateway
- Push-to-talk microphone ensures clear, dependable announcements and emergency communication
- Easy installation with included wall brackets and cabling support
About the System Components
Pure Resonance Audio S10 10" 70V All-Weather Loudspeakers
The S10 loudspeakers are compact, two-way full-range IP66-rated units designed for indoor and outdoor commercial use. Each speaker delivers 200W continuous power with a 90° x 90° coverage pattern, providing clear and even audio for both music and speech. The durable metal and fiber-reinforced plastic enclosure protects against dust and water, while the included wall-mount bracket allows for secure and flexible installation in warehouse, factory, or dock environments.
Pure Resonance Audio RMA240BT 5-Channel Bluetooth Mixer Amplifier
The RMA240BT 240W rack-mount mixer amplifier offers versatile audio management with five channels, Bluetooth streaming, USB/TF card playback, and FM radio support. Its high-performance Class H amplification ensures consistent output, while the included remote control allows convenient operation from a distance. The RMA240BT is ideal for powering background music and managing paging or announcements in commercial and industrial settings.

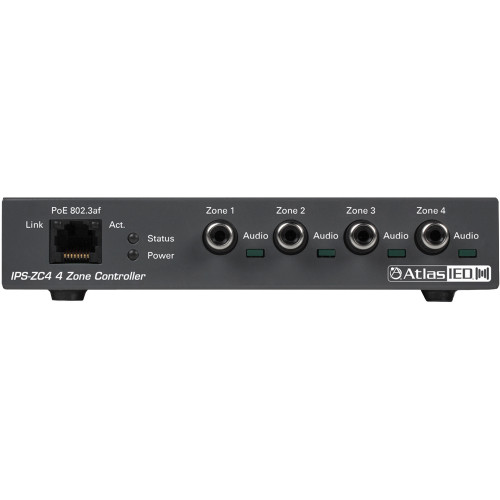

AtlasIED IPS-ZC4 IP-to-Analog Four Zone PoE Gateway
The IPS-ZC4 gateway allows for integration of IP-based paging and multi-zone announcements into analog speaker systems. It converts networked audio streams into four independent analog zones and can work with PoE-enabled devices for easy deployment. This solution is perfect for warehouses, factories, and other commercial spaces that require controlled, reliable multi-zone audio distribution.

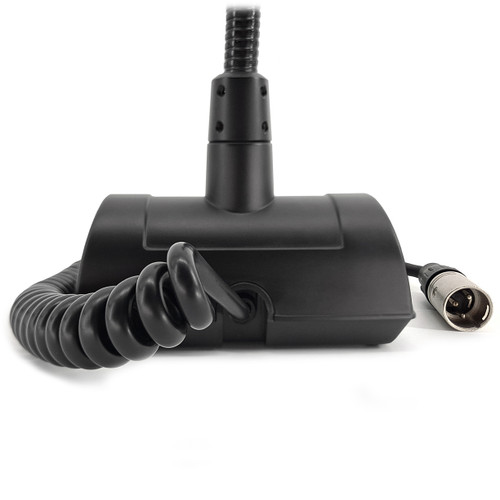

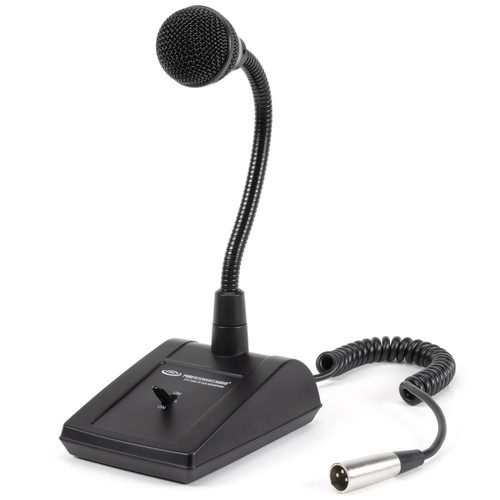

Pure Resonance Audio PTT1 Desktop Push-to-Talk Microphone
The PTT1 desktop gooseneck push-to-talk microphone ensures clear, reliable paging and announcements. Featuring a uni-directional dynamic microphone, dual momentary locking switch, durable gooseneck, and three-pin XLR connector, the PTT1 is ideal for daily use in industrial environments. Its rugged design provides long-lasting performance for warehouse and commercial PA systems.
