Inside the Design
Elevate your audio experience with this weather resistant speaker system designed for both indoor and outdoor installations. Experience crystal-clear sound and impressive vocal clarity with the six S6 6.5" 2-way high-performance 70V surface mount speakers. Complementing these speakers is the feature-packed RMA500BT 500W mixer amplifier, offering versatility and power. Expand your horizons with the BTR1 Bluetooth wireless receiver, boosting your range up to 100ft for seamless audio control. Enjoy exceptional sound quality and convenience in one package ideal for restaurants, wineries, retail stores, parks, public pools and so much more.
In the event of an emergency, the RMA500BTs' emergency input (EMC In) can be configured to stop all other audio automatically. The emergency input takes priority over all other audio allowing an integrated emergency voice alarm system to be heard loud and clear. This input will work with an existing paging system, emergency paging mic, and, most importantly, a relay closure from a fire alarm system.
Sound System Features:
- The IP65-rated all-weather housing protects against direct contact with water and dust, while the UV protection and ABS housing prepare the S6 for demanding outdoor use
- With 60 watts of continuous power handling, the S6 6.5" polypropylene cone woofer and 1" silk membrane tweeter produce a full-range frequency response of 80 - 18kHz and an average SPL of 92 dB high-output sound
- The RMA500BT 5 channel, 4 ohm/70 volt Bluetooth commercial rack mount mixer amplifier provides 500 watts of high-performance Class H power
- The RMA500BT features a forced air-cooling fan, which helps accommodate the long working hours of your commercial application
- Use priority/emergency input to halt other audio and amplify paging/emergency announcements clearly during critical situations
- Stay connected and get ultimate wireless freedom and maximum flexibility with BTR1s extended-range wireless streaming, delivering consistent performance for up to 100 feet (30 meters)
About the System Components

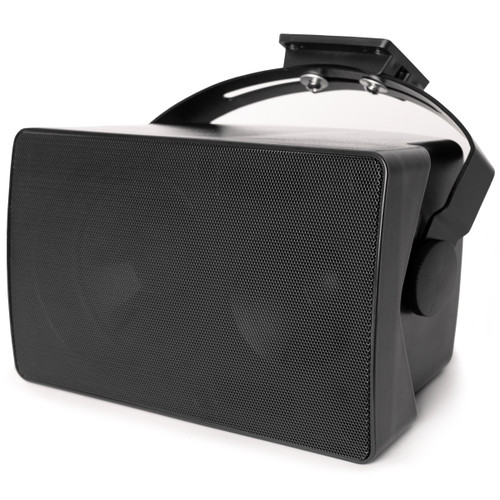

S6 6.5" 70V OUTDOOR SURFACE MOUNT SPEAKER
The Pure Resonance Audio S6 2-way 70-volt surface mount speaker is designed to provide quality audio performance for indoor and outdoor commercial installations. The IP65 weather-resistant rated, UV-protected, and durable ABS enclosure makes the S6 ideal for creating a robust sound atmosphere year-round, indoors and out. This all-weather speaker includes a 6.5" polypropylene woofer and 1" silk membrane tweeter that delivers premium full-range frequency response with a built-in 70V/100V transformer and an 8-ohm bypass. A matching 180-degree mounting bracket allows for quick and easy installation on the wall, under awnings, and overhangs. The S6 is perfect for background and foreground level music, paging, and general-purpose audio where high-quality indoor/outdoor sound is needed.
RMA500BT 500W RACKMOUNT BLUETOOTH MIXER AMPLIFIER
The Pure Resonance Audio RMA500BT 5-channel 70V commercial rack mount mixer amplifier features a whopping 500 watts of high-performance Class H power. All that power is encased in a slim and lightweight space-saving design with a quick and easy Bluetooth connection. This mixer amplifier includes a forced air-cooling fan as well as emergency priority capabilities giving it the ability to accommodate any commercial application. It's an excellent solution for your audio needs.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

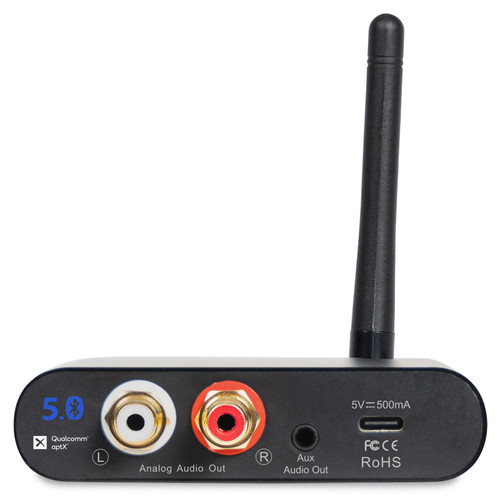

BTR1 BLUETOOTH WIRELESS AUDIO RECEIVER
The Pure Resonance Audio BTR1 is a compact Bluetooth stereo receiver designed for seamless high-definition audio streaming. Featuring Bluetooth 5.0, Qualcomm® aptXª technology, and a high-performance antenna, it delivers synchronized, low-latency sound with a range of up to 100 feet. Built with a durable aluminum enclosure, it withstands commercial environments and integrates easily into sound systems with balanced ⅛" TRS and RCA outputs. The BTR1 is ideal for fitness gyms, classrooms, houses of worship, restaurants, and more, offering quick setup, automatic pairing, and memory for up to 8 devices.
