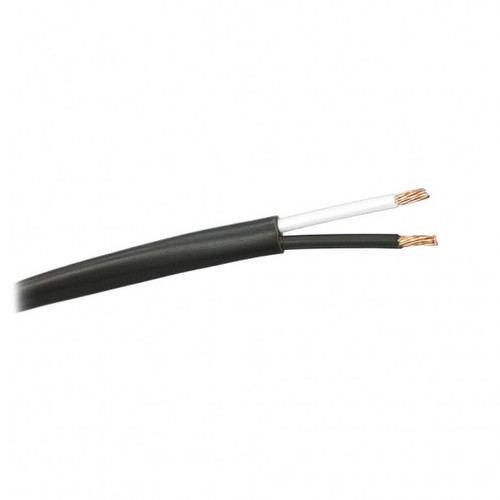

The 226 14/2 non-plenum audio speaker wire delivers consistent performance and reliability for both commercial and residential sound systems. It features 14 AWG stranded bare copper conductors that ensure excellent conductivity and flexibility during installation. Each conductor is insulated in black and white PVC, enclosed in a rugged black PVC jacket designed for long-lasting protection and easy routing through walls, conduit, or ceilings.
Perfect for speaker connections, paging systems, or low-voltage control wiring, this 250 ft spool offers dependable signal transmission with sequential footage markings for efficient setup. With CL3R and FPLR ratings, the West Penn 226 provides a cost-effective, professional-grade solution for general-purpose audio and control wiring in non-plenum environments.
| Number of Conductors | 2 |
|---|---|
| AWG Size | 14 |
| Conductor Stranding | 19 x 27 |
| Conductor Type | Bare copper |
| Nominal DCR | 2.7 Ohm/1000 ft |
| Cabling Lay Length | 4" |
| Twists/Foot | 3 twist/ft |
| Insulation Type | Thermoplastic |
| Insulation Thickness | 0.012" |
| Insulation Color Code | Black and White |
| Jacket Type | PVC |
| Jacket Color | Black |
| Jacket Thickness | 0.017" |
| Nominal Cable O.D. | 0.23" |
| Plenum | No |
| NEC UL Rating | CL3R, FPLR |
| Pull Tension | 79 lbs |
| Bend Radius | 2.07" |
| UL Flammability | UL1666 Vertical Shaft |
| Operating Range | -20 to 60°C |
| UL Voltage Rating | 300V |
