West Penn 25210 2C 10G Stranded Unshielded Plenum Wire - Black, 500ft (Open Box)

Part #:
25210BK0500
Model #:
25210
Was $1,020.78
Now: $713.99
You save $306.79
Availability: In Stock & Shipping Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

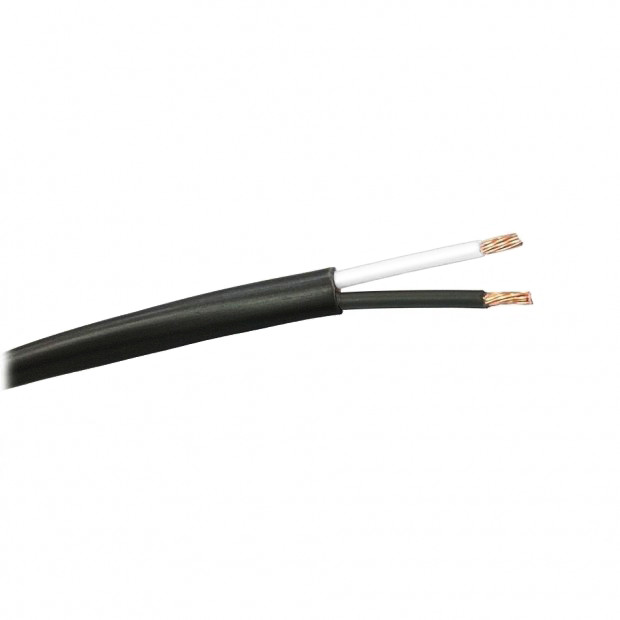

The West Penn 25210 is a 10 AWG, 2-conductor unshielded plenum-rated audio cable, ideal for large venue speaker systems. Featuring flexible plenum PVC insulation and robust bare copper strands, this wire offers low resistance and high performance in demanding environments.

Description

Open Box. NEW Condition. Authorized West Penn Wire Dealer. Documentation and Packaging as new product.

The 25210 audio cable is engineered for large venue speaker systems requiring robust, plenum-rated performance. With its 10 AWG, 2-conductor configuration, this wire delivers reliable, clear audio transmission for demanding applications. Constructed with 65-strand bare copper conductors and a flexible plenum PVC jacket, the 25210 offers durability and flexibility during installation. It meets stringent UL CL2P fire safety standards and is RoHS compliant, ensuring compatibility with various codes and regulations. With low DC resistance of 1.1 Ω per 1,000 feet and a high current capacity of 27 amps per conductor, the 25210 provides reliable power for audio installations across large areas.

Features

  • Conductor Size: 10 AWG, 2-conductor bare copper for superior audio quality
  • Insulation: Plenum-rated PVC for enhanced fire resistance
  • Stranding: 65-strand design for flexibility and durability
  • Low Resistance: 1.1 Ω/1000 ft for efficient power transfer
  • Current Rating: 27 amps per conductor at 25ºC
  • Capacitance: Nominal 28 pF/ft for consistent audio performance
  • Compliance: Meets UL CL2P and NFPA 262 plenum safety standards
  • Environmental: RoHS compliant with an operating range of -20 to 75ºC
  • Durability: Withstands 160 lbs of pull tension and features a bend radius of 1.2 inches
