- Description
Details

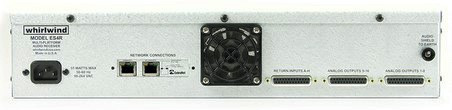

The ES4 system offers sixteen channels of American made, professional quality microphone preamplification and eight line level return channels via a choice of digital transport formats. Each ES4T (transmitter) and ES4R (receiver) can be configured for Cobranet, or Dante formats by simply changing the network module in the unit. The exceptional performance, ease of use, and extreme flexibility make the ES4 series products excellent I/O devices for any digital audio network. The typical Whirlwind ES4 system consists of two components: the ES4T transmitter module, which has sixteen balanced mic/line inputs and eight line level outputs. The matching ES4R receiver module has sixteen line level outputs and eight line level inputs. All inputs have variable gain controls and LED level monitoring.
- Features
Features
- Ease of use
- Extreme flexibility
- Excellent I/O device
- Specification
Available Options ES4T (transmitter module)ES4R (receiver module) ES4T Transmitter Module Input/Output Type Sixteen balanced mic/line inputs, eight line level outputs ES4R Receiver Module Input/Output Type Sixteen line level outputs, eight line level inputs Dimensions (H x W x D) ES4T 5.25" (133.35 mm) x 19.0" (482.6 mm) x 12.5" (317.5 mm) ES4R 3.5" (88.9 mm) x 19.0" (482.6 mm) x 12.5" (317.5 mm) Weight ES4T 12 lbs (5.44 kg) ES4R 9.5 lbs (4.30 kg) Shipping Weight ES4T 15 lbs (6.80 kg) ES4R 12 lbs (5.44 kg) - Documents
