- Description
Details

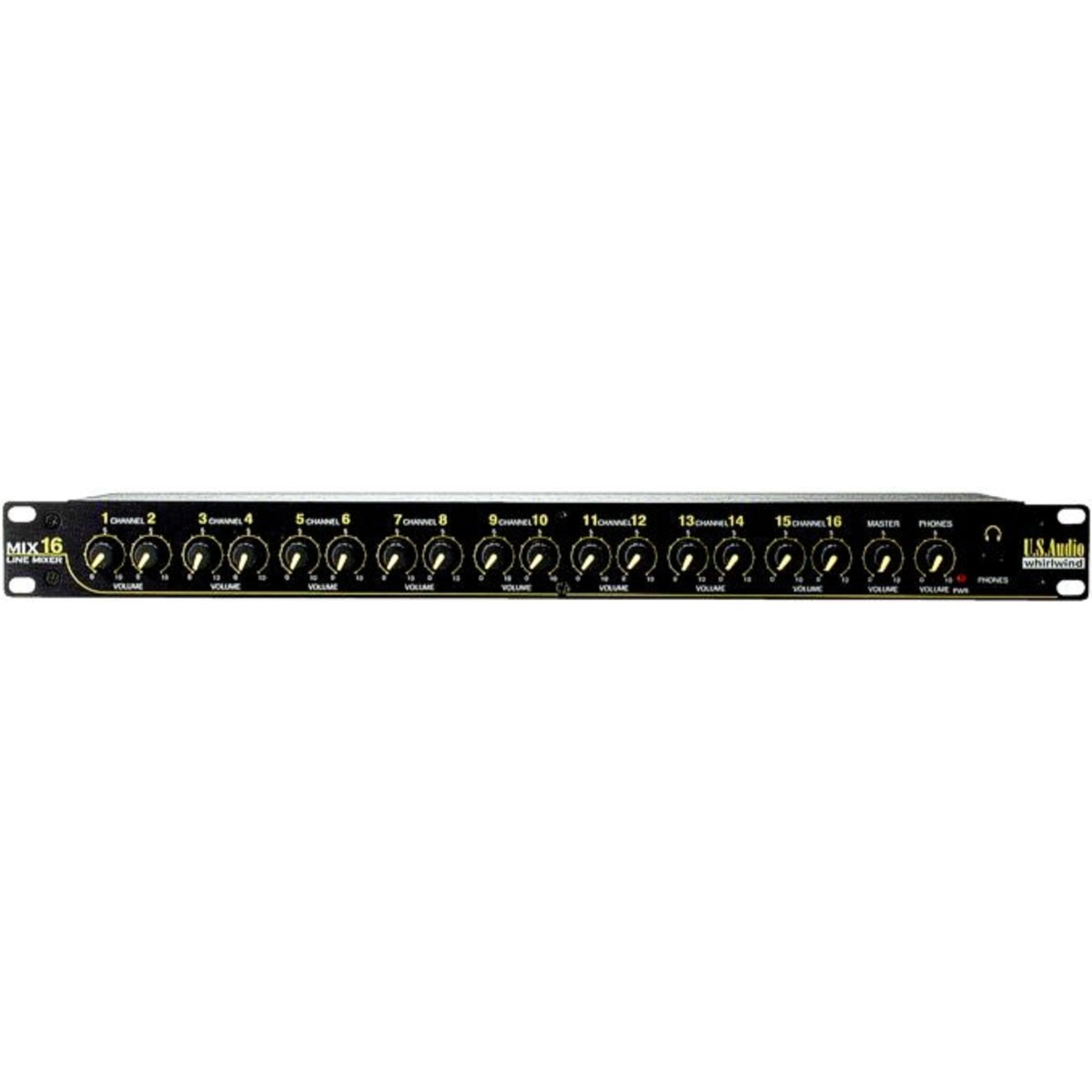

The Whirlwind MIX-16 was designed for use in broadcast production, monitoring, and wherever large numbers of balanced inputs are required in a minimum amount of space. It provides 16 mono balanced 1/4" line-level inputs in a compact, cost-effective 1U package.
Each channel has a volume control, and the output level is controlled by a master volume control. The unit also includes a headphone volume control and headphone jack for monitoring the program mix. The output is balanced or unbalanced line-level via two TRS 1/4" jacks.
- Features
Features
- It provides 16 mono balanced 1/4" line-level inputs in a compact, cost-effective 1U package
- Each channel has a volume control, and the output level is controlled by a master volume control
- The unit also includes a headphone volume control and headphone jack for monitoring the program mix
- The output is balanced or unbalanced line-level via two TRS 1/4" jacks
- Specification
Frequency Response + .5 dBm 20 Hz to 20 kHz
+3 dBm 7 Hz to 58 kHzInput Impedance 20 K ohm unbalanced Maximum Input Level +21 dBm Output Impedance 100 ohm Maximum Output Level +22 dBm Rise Time 6 uS One Channel Unity Gain -81 dBm All Channel Unity Gain -76 dBm T.H.D. + n .015% Range of Gain Controls -60 to +18 dBm Mute Attenuation 60 dBm Total Gain 36 dBm Power Consumption .15 Amps Max. A.C. At 120 VAC
.15 Amps Max. A.C. At 230 VACAC Dropout Voltage +105 VAC at 120 V nominal
+205 VAC at 230 V nominalDimensions (H x W x D) 1.75" (44.45 mm) x 19" (482.6 mm) x 6" (152.4 mm) Weight 6 lbs (2.72 kg) Shipping Weight 7.5 lbs (3.4 kg) - Documents
Documents
