The podMIX is a passive mixing device that combines a microphone with a stereo line-level audio source, for connection into a single mic input of a sound system. Use it with CD and MP3 players, computer sound card outputs, DJ mixers, etc. along with a microphone in sports arenas, conference rooms, banquet halls, gymnasiums and party houses for paging or announcements over background music. Accepts stereo line inputs, reduces them to mic level and sums them with the microphone into a single balanced mono output.
A variable attenuator on the line input allows level matching and mixing between the music source and the microphone.

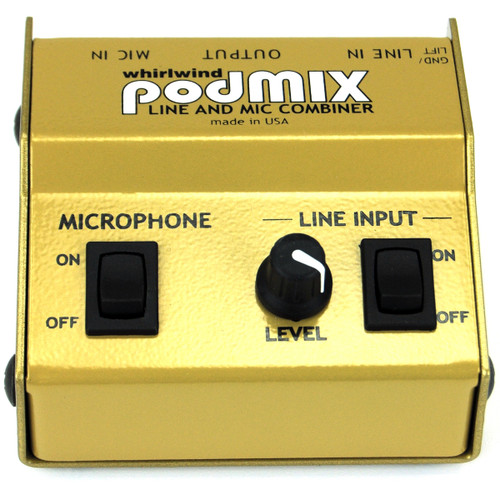

Mute switches on both the mic and line inputs provide convenient on/off control of each signal.
Works with both dynamic and condenser microphones and passes phantom power from the sound system to the mic input.

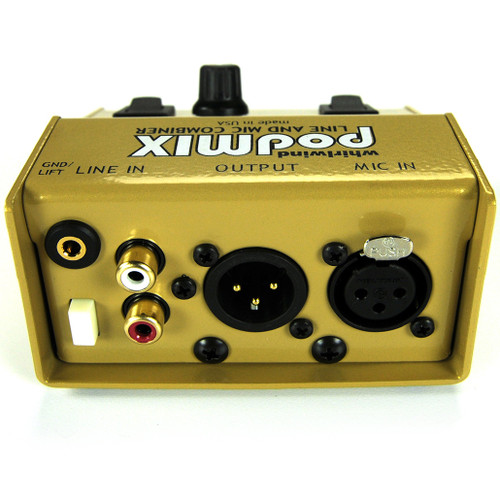

Line signals are input via a single 3.5mm (1/8”) stereo TRS jack or color-coded dual RCA jacks. The microphone input is a balanced female XLR jack and the output is via a balanced male XLR jack.
Features a ground lift switch on the line input to help eliminate hum and buzz.
Can also be used as a high quality DI box.
| Stereo Line Inputs | 1/8" stereo jack or dual RCA phono jacks |
|---|---|
| Impedence | Balanced Low Impedence |
| Output | Single balanced Male XLR jack |
| Weight | 2 lbs (0.90 kg) |
