- Description
Details
The PressPower WP (Press Wall) features 2 mic/line input channels with individual gain controls and 14 transformer-isolated outputs that are individually switchable for mic or line-level operation. Input audio can be applied at the front panel jacks or remotely located input connectors. The PRESSPOWER WP includes a 20-segment LED level meter, an internal test tone generator, a built-in headphone monitor amp with volume control, and 48 VDC phantom power for condenser microphones.
The high-performance input stage provides clean audio even in high RF environments.

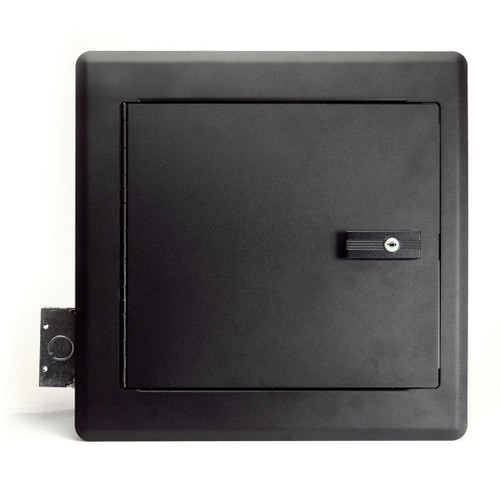

The unit can be installed in walls with standard 16" stud centers and uses 115 VAC - 60 Hz power. A locking, hinged cover protects the unit when not in use.
- Features
Features
- 14 mic or line level outputs
- XLR or 3.5mm transformer balanced output jacks
- Complete ground isolation between outputs
- 2 mic or line level inputs
- Choose front panel inputs or remote connections
- Expander connection for additional outputs
- Test tone for level calibration
- Headphone monitoring of input signals
- Installs between 16" wall stud centers
- Specification
Wall Cutout 12" (304.8 mm) x 12" (304.8 mm) Dimensions (H x W x D) (flush mount) 14.25" (361.95 mm) x 14.25" (361.95 mm) x 4" (101.6 mm) Weight (with case) 24 lbs (10.9 kg) Shipping Weight 30 lbs (13.6 kg) - Documents
