Williams AV AP SY1 BluePOD Conference Mate Bluetooth Audio Conferencing System

Home /
Williams AV AP SY1 BluePOD Conference Mate Bluetooth Audio Conferencing System (Discontinued)

Description

Details

The BluePOD Conference Mate Bluetooth® audio conferencing system is designed to simplify making conference calls in your meeting rooms with your mobile phone. With BluePOD, making a conference call is as simple as tapping the Bluetooth connect button on your phone or connecting your laptop to Bluetooth; no special software is needed The Bluetooth Wireless Access Point (B-WAP) ensures a strong and smooth Bluetooth connection. Let your everyday devices seamlessly take advantage of your already installed AV equipment.

This bundle comes with speakers and microphones for a full audio-conferecing system.

Features

Features

Bluetooth 4.2 with aptX HD Support
Network access with browser
50ft radius
No special software is needed
In-Ceiling speakers and wall-mountable access point

Specification

Power Supply	Input: AC Power Plug is IEC 320-C14 Output: 24VDC @ 6.7A to DIN Plug
Power Switch	Rocker. Backlit red LED indicates power on

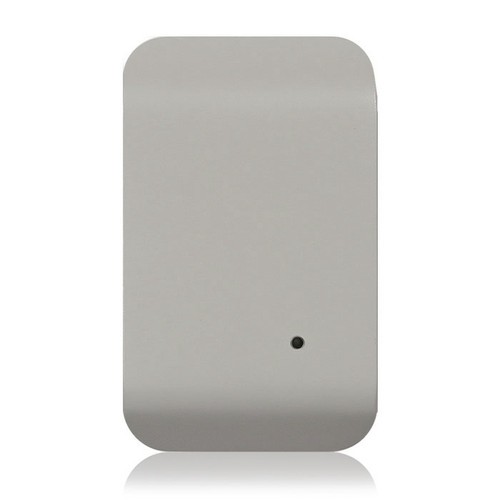

Bluetooth Wireless Access Point	Bluetooth 4.2 with aptX HD Support; Connect with CAT6 cable
Bluetooth Wireless Access Point Chassis	Wall mount type, molded plastic, white (beige) top with grey bottom
Controller Chassis	Desktop type, black, metal with white and red legends on front, white legends on back
Inputs	Accepts balanced or unbalanced analog signals at a 6 position Phoenix style connector with +, gnd, and - connections. Both mic inputs have a +48VDC phantom supply at pins + and - to gnd
USB	(4) Type A USB Receptacle, USB 1.1 or 2.0 Supported
Microphone	48v Phantom Microphone (not included) Williams AV recommend microphone is Audio-Technica Pro 44 Boundary microphone (or equivalent)
Network	Network access with browser; connect to IP address over Ethernet (RJ45, 10/100/1000 Mbps) network

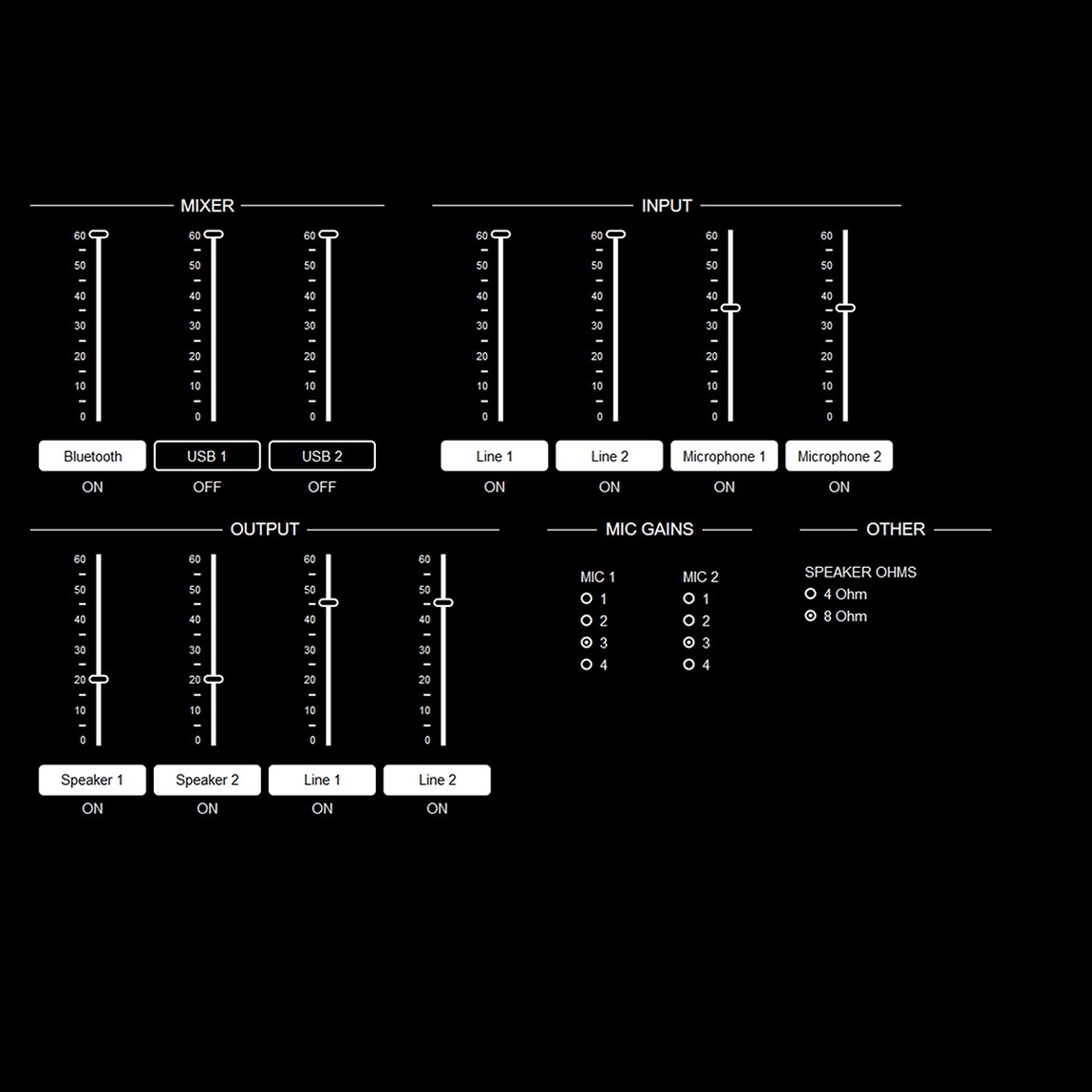

User Access	Mixer controls include volume, mute, etc. are accessible via browser menu
Bluetooth Range	50 ft radius (15.24 m)
Outputs	The line output is a balanced or unbalanced analog signal at a 6 position Phoenix style connector with +, gnd, and - connections
Speaker	Speaker output (2x) has a 25W/channel class D amplifier output impedance is selectable at 8Ω or 4Ω. Each channel output is a 2 position Phoenix style connector with a + and - connection
Integrated Mixer	(2) mic inputs, (2) line inputs and (2) line outputs; (4) USB inputs and (2) speaker outputs. Acoustic Echo Cancellation (AEC) is placed between both microphone inputs and speaker outputs
Operating Environment	32ºF to 104ºF (0ºC to 40ºC) with 0-90% relative humidity Storage: -40ºF to 150ºF (-40ºC to 65ºC )
Warranty	2-year parts and labor
Approvals	CE, FCC, Industry Canada, RoHS2, WEEE, RCM, PSE
Dimensions (H x W x D)	1.5" (38 mm) x 10" (254 mm) x 7.5" (190.5 mm)
Weight	2.75 lbs (1.25 kg)

System Includes
