The Williams AV BA SYS3 Infinium broadcast audio system is a complete Auracast assistive listening solution with a rack-mount controller, two transmitters, 12 receivers, and native Dante. It delivers low-latency wireless audio for large venues, multi-zone installations, and ADA-compliant AV systems.

Description

Williams AV BA SYS3 Infinium Auracast System with Dante, 2 Transmitters and 12 Receivers

The BA SYS3 Infinium broadcast audio system is a complete Auracast assistive listening solution designed for larger venues and multi-zone installations. This professional package includes a BA-C1 rack-mount controller, two BA-T1 transmitters, twelve BA-R1 portable receivers, and a 12-bay charging station, providing everything needed to deploy a turnkey, ADA-compliant wireless audio system. Built on Williams AV's patented modular architecture, the BA SYS3 delivers low-latency, high-fidelity audio to the included receivers and an unlimited number of Auracast-compatible hearing aids, cochlear implants, earbuds, and headphones.

Designed for modern AV environments, the BA SYS3 features native Dante networking, analog audio inputs, and browser-based system configuration for simple deployment and centralized management. Enhanced Scale & Management (ESM) technology supports systems with up to 150 transmitters, enabling scalable, multi-room audio distribution from a single interface. Each BA-T1 transmitter installs using a single CAT5 cable that carries power, audio, and control, providing reliable wireless coverage up to 328 ft (100 m) while minimizing installation time and infrastructure requirements.

Ideal for a wide range of professional applications, the BA SYS3 delivers a scalable, future-ready assistive listening solution that improves accessibility while meeting ADA requirements. Proudly made in the USA and TAA compliant, it provides the flexibility, reliability, and performance required for today's commercial AV installations.

Applications

Theaters & Performing Arts Venues
Lecture Halls & Auditoriums
Corporate Conference Centers
Houses of Worship
Museums & Visitor Centers
Airports & Transportation Hubs
Government & Municipal Facilities
Courtrooms & Legislative Chambers
Universities & Educational Campuses
Convention Centers & Exhibition Halls
Hospitality & Event Venues
Large Multi-Room Commercial AV Installations

Features

Complete Auracast broadcast audio system with controller, 2 transmitters, and 12 receivers
Native Dante and analog audio inputs for seamless AV integration
Low-latency digital audio streaming to unlimited Auracast-compatible devices
Enhanced Scale & Management (ESM) supports systems with up to 150 transmitters
Single CAT5 cable carries power, audio, and control to each transmitter
Centralized configuration and monitoring via front panel or web interface
Wireless coverage up to 328 ft (100 m) per transmitter
Ergonomic BA-R1 receivers with large display and user-adjustable balance control
Compatible with Auracast-enabled hearing aids, cochlear implants, headphones, and earbuds
Includes 12-bay charging station, headphones, neckloops, rack-mount kit, and ADA signage
Patented modular architecture, made in the USA, and TAA compliant

Specifications

BA C1 Controller
Power Supply	Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5 mm ID center positive barrel connector
Power Button	Push On/Push Off latching power button
Ethernet Control Port	(1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T
Dante	(1x) RJ-45 jack
Dimensions (H x W x D)	1.72" (43.69 mm) x 8.45" (214.63 mm) x 8.25" (209.55 mm)
Weight	2.3 lbs (1.04 kg)

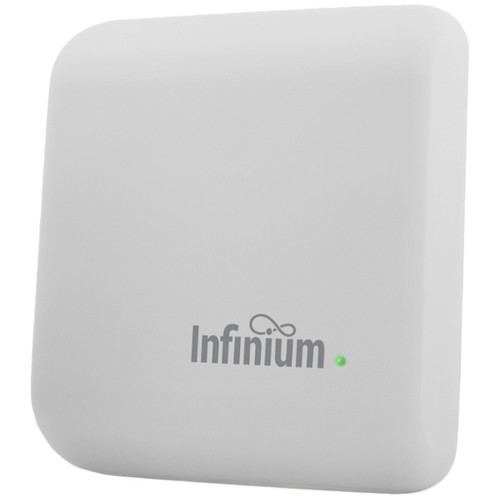

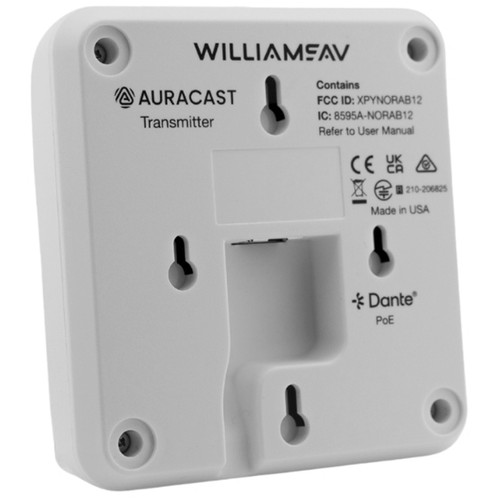

BA T1 Transmitter
Power	PoE (Input)
Connection	RJ45 (1x) with audio, control and PoE
Power ON Indicator	Programmable LED
Transmitter Power Output	Programmable
Compliance Approvals	FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)
Dimensions (H x W x D)	1.19" (30.23 mm) x 4.7" (119.38 mm) x 5" (127 mm)
Weight	0.4 lbs (0.18 kg)

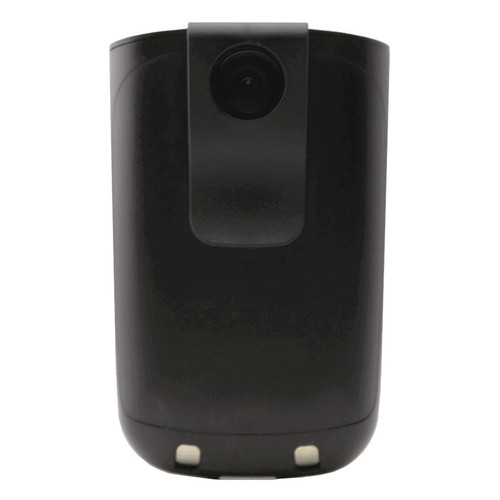

BA R1 Receiver
Battery Type	Lithium Ion (Li-ion) Camera Style Rechargeable Battery; Field Replaceable
Battery Size	3.7 VDC, 1200 mAh
Battery Life	>20 hours
Charging Connections	Dual contacts for use with Infinium Drop In Chargers or USB-C Connector
Button Controls	Power, Increment, Decrement, CH/BAL, Menu/Select
USB-C Connection	Power/Charge (5V @~500 mA) Firmware Updates
Dimensions (H x W x D)	2.48" (63 mm) x 3.9" (99 mm) x 1.19" (30.2 mm)
Weight	0.24 lbs (0.11 kg)

DOCUMENTS

In The Box

(1) BA C1 Infinium Auracast Controller with Dante and Web-Based Management
(2) BA T1 Infinium Auracast Transmitters
(12) BA R1 Infinium R1 Auracast Receivers

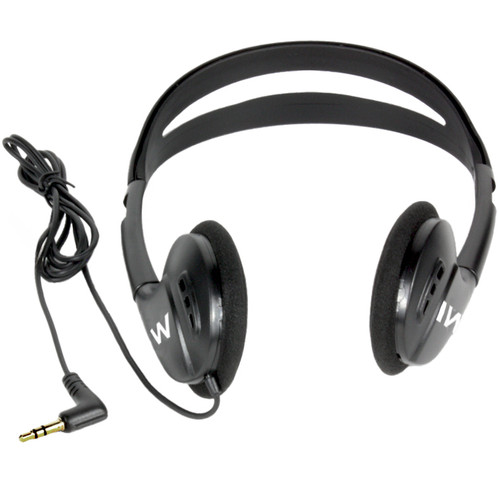

(12) HED 024 Folding Stereo Headphones

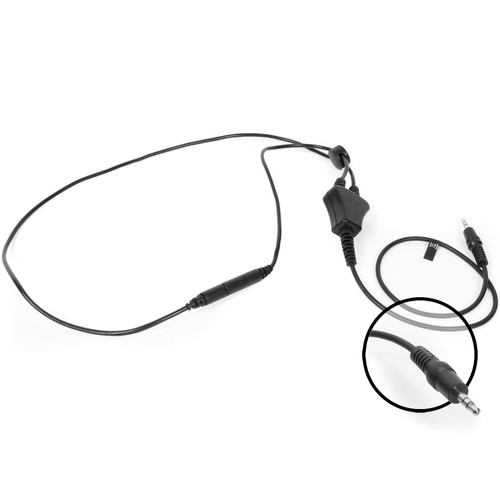

(3) NKL 001-S 18" Stereo Neckloops

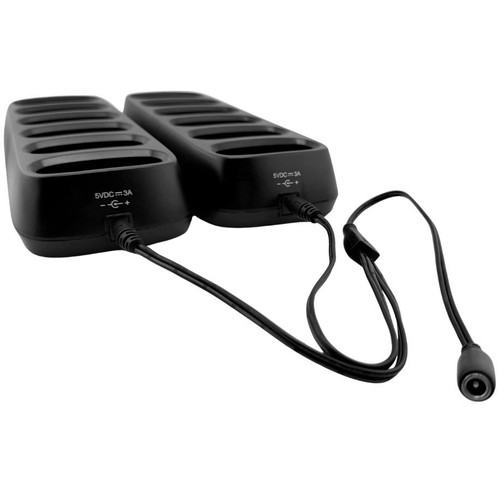

(1) CHG 005 Infinium 12-Bay Drop-In Charger

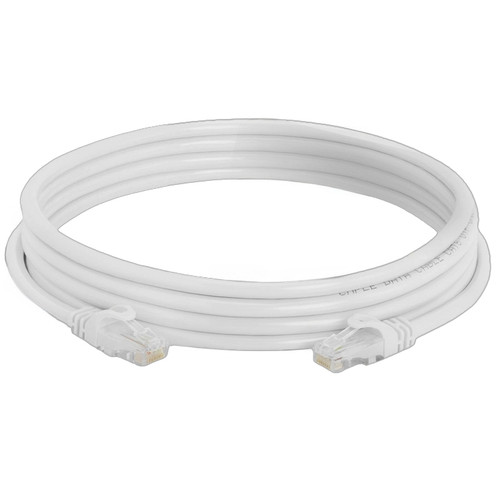

(2) WCA 158 Ethernet Cables - 10ft
(1) IDP 018 Auracast ADA Wall Plaque

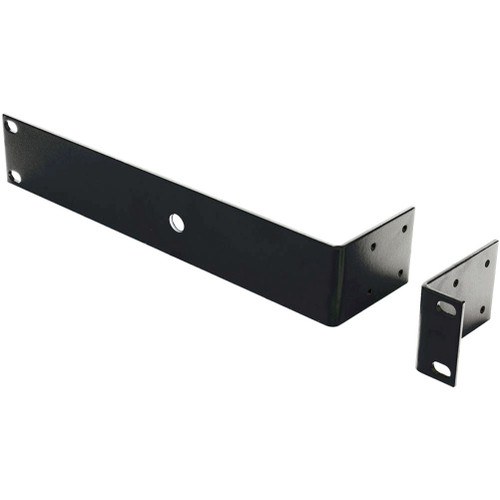

(1) RPK 005 Rack Mount Kit
