The CHG 005 Infinium 12-bay drop-in charger is a high-capacity charging solution designed for efficient management of Infinium Auracast receivers. Built for high-use environments, it supports simultaneous charging of up to twelve receivers, ensuring devices remain powered, organized, and ready for deployment.

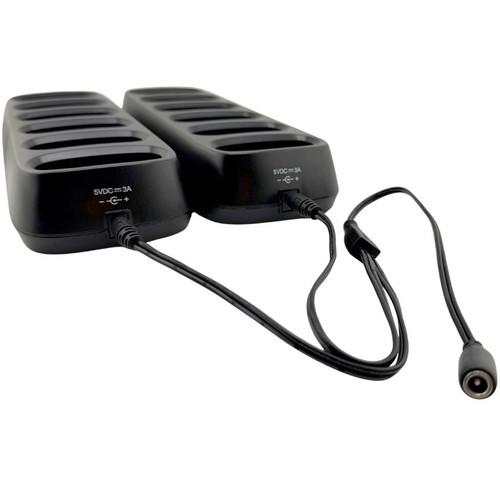

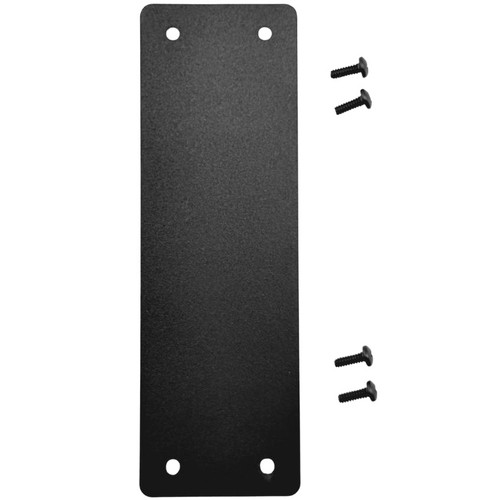

The system consists of two CHG 004 6-bay chargers that integrate into a single 12-bay configuration using the included bracket assembly kit. This modular design allows for flexible installation while maintaining a clean, space-efficient footprint. The drop-in charging bays provide quick and secure docking, making daily operation simple and reliable.

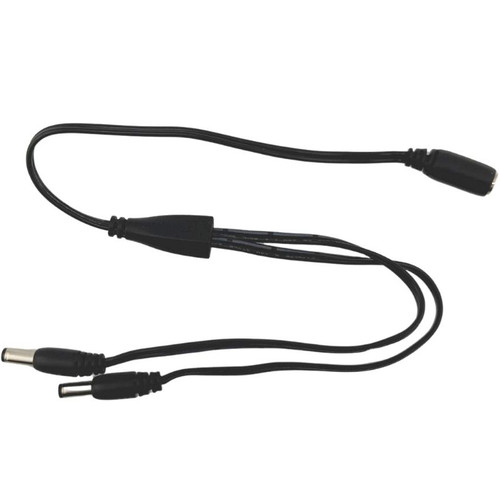

Ideal for classrooms, conference centers, and large assistive listening systems, the CHG 005 includes a power supply, mounting bracket, and Y-splitter cable for complete setup. Designed for use with Infinium receivers, it delivers dependable performance and streamlined device management. Receivers sold separately.
| Charger Power | Input: 5 VDC, 3.0A | Output: 5 VDC, 0.5A per bay |
|---|---|
| Charger Input Connector | DC barrel jack, 2.1 mm pin diameter, center positive |
| Power Supply | TFP 066, Output: 5 VDC, 6A |
| Power Supply Input | 100-240 VAC, 50-60 Hz, 1.4A |
| Charging Time | 4 hours nominal |
| Unit Capacity | 12 units |
| Compatible Units | Infinium BA R1 Receivers |
| Indicators | Red LED (1) - Charger is plugged into power |
| Enclosure | Black, PC/ABS plastic |
| Approvals | CE, UKCA, RCM, RoHS |
| Dimensions (H x W x L) | 1.56" (39.62 mm) x 3.55" (90.17 mm) x 10" (254 mm) |
| Weight | 1.43 lbs (0.65 kg) |
