Williams AV FM R38 Multi-Channel FM Receiver with Surround Earphone and OLED Display

Home /
Shop By Brand /
Williams AV /
Williams AV Assisted Listening Systems /
Williams AV FM R38 Multi-Channel FM Receiver with Surround Earphone and OLED Display

Description

Details

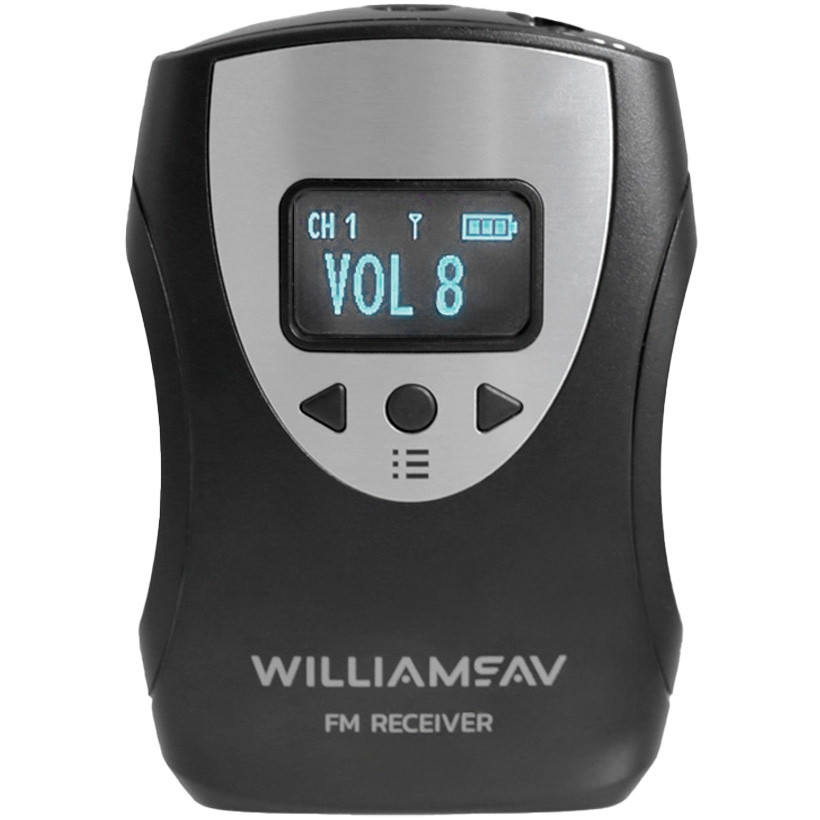

Williams AV FM R38 Multi-Channel FM Receiver

The FM R38 is a multi-channel FM receiver designed for tours, presentations, classrooms, and assistive listening applications. It features a high-resolution OLED display that provides clear visibility of receiver status and allows quick, easy access to all user settings. With 17 pre-set wide-band frequencies (72-76 MHz), the FM R38 ensures reliable operation with all compatible Williams AV transmitters.

Digitally synthesized, the receiver delivers exceptional audio clarity and stable performance. Its digital tuning and squelch minimize interference, while the battery-saving sleep mode extends usage time during inactivity. The FM R38 also includes a new stereo jack paired with the mono jack, increasing compatibility with a variety of earphones and headphones for flexible listening options.

The system comes complete with the PPA R38N receiver, EAR 022 surround earphones, and BAT 001-2 AA alkaline batteries. Rechargeable and portable, the FM R38 is ideal for environments where dependable, high-quality audio is essential, from guided tours and corporate events to educational and assistive listening programs.

Features

Features

Multi-channel FM receiver with digital tuning for precise frequency selection
High-resolution OLED screen for quick status checks and easy setting access
17 pre-set, wide-band frequencies (72-76 MHz) compatible with Williams AV transmitters
Digitally synthesized for exceptional audio clarity and stability
Battery-saving sleep mode extends battery life during inactivity
New stereo jack paired with a mono jack for broader headphone/earphone compatibility
Rechargeable with included AA batteries for convenient portability

Specification

Current Consumption	47 mA nominal at 2.4 VDC
Channels	17 wideband, accessed via menu
Operating Frequencies	72.1 - 72.9 MHz, 74.7 - 75.9 MHz
FM Deviation	75 kHz
Frequency Response	200 Hz - 15 kHz ±3 dB
Signal-to-Noise Ratio	Minimum 65 dB @ 1.0V
Audio Output	35 mW max at 16Ω
Headphone Connector	3.5 mm stereo jack; mono output compatible
Display Screen	1" OLED with power/battery indicator
Battery Life	Alkaline: 50 hrs, NiMH: 32 hrs (1500 mAh)
Battery Type	2 x AA Alkaline or 2 x AA NiMH rechargeable
Color	Black, Black ABS plastic case with aluminum faceplate
Operating Temp Range	32° - 122°F (0° - 50°C)
Dimensions (H x W x D)	4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm)
Weight	0.29 lbs (0.13 kg)

Documents
