The WF SYS1C WaveCAST Wi-Fi assistive listening system is a modern, network-based solution designed to deliver clear, real-time audio streaming over existing Wi-Fi infrastructure. Ideal for small venues, it provides an easy and flexible way to meet ADA hearing accessibility requirements for spaces with up to 50 seats.

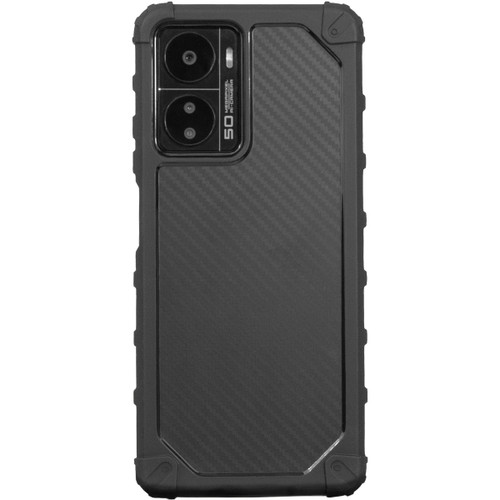

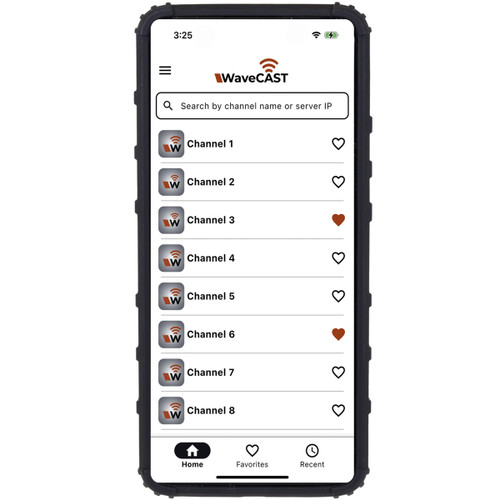

At the core of the system is the WF T5C transmitter, which streams audio directly over Wi-Fi to the included WAV Pro Wi-Fi receivers. These advanced receivers feature a large 6.8-inch full HD+ display, Bluetooth compatibility, and up to 40 hours of continuous streaming under typical use, ensuring a user-friendly and reliable listening experience.
The system includes two WAV Pro receivers, headphones, neckloops for hearing aid compatibility, a rack panel kit, and an ADA wall plaque. Guests can also access audio using their own smartphones via the WaveCAST app, making this system a versatile and scalable solution for assistive listening in conference rooms, classrooms, and worship spaces.
| WF T5C | |
|---|---|
| Audio Input | Combo XLR / 1/4" TRS for mic or line, balanced or unbalanced with selectable phantom power |
| Frequency Response | 31 Hz - 16 kHz (±3 dB, Music preset) |
| DSP Processing | Compression, high-pass and low-pass filters, music, voice, and hearing assistance presets |
| Ethernet Connectivity | RJ-45, 10/100 Base-T, supports up to 328 ft (100 m), required for streaming |
| User Interface | 3.12" OLED display, web interface, and Telnet control over network |
| Power Supply | 24 VDC desktop transformer, 100–240 VAC input |
| Dimensions (H x W x D) | 1.72" (43.69 mm) x 8.45" (214.63 mm) x 8.25" (209.55 mm) |
| Weight | 3.2 lbs (1.45 kg) |
| WF R2 | |
| Display | 6.8" Full HD+ Infinity dot touchscreen 1080 x 2460 Resolution, 396ppi |
| Headphone Jack | 3.5 mm (1/8") stereo headphone jack |
| Bluetooth | 5.2 |
| Battery | 5,000 mAh Lithium Polymer (Li-Po), non-removable |
| Dimensions (H x W x D) | 6.64" (168.7 mm) x 3.02" (76.7 mm) x 0.35" (9 mm) |
| Weight | 0.46 lbs (0.21 kg) without the Williams AV Case |
| HED 024 | |
| Driver Size | 30 mm |
| Nominal Impedance | 16Ω |
| Frequency Response | 20 - 20kHz |
| Max Power Input | 100 mW |
| Sensitivity | 108 dB @ 1kHz |
| Weight | 0.13 lbs (0.059 kg) |
