- Description
Details
The Williams Sound DWS INT 5 PRO Digi-Wave Language Interpretation System is a completely portable, wireless, single-speaker plus 4-language interpretation system. Ideal for up to four languages, plus floor. Up to 50 listeners. Space for up to 70 receivers per tray. Ideal when security, sound quality and flexibility are critical. Designed for small - to medium-size conferences, meetings or other events where one language is shared by four interpreters. System can serve up to 50 listeners. Additional DLT 100 2.0's can be purchased separately to accommodate up to 14 additional languages. Additional DLR 60 2.0's can be purchased separately to accommodate additional listeners. Can serve unlimited number of listeners within recommended range.
The DWS INT 5 PRO is ideal for a one floor / four interpreter scenario. One DLT 100 2.0 transceiver is set up as body-worn transmitter to provide a direct audio feed from a speaker to four interpreters. Interpreters 1, 2, 3 and 4 then use DLT 60 2.0's to both listen to the speaker and transmit their simultaneous interpretation to the audience on 4 separate channels. The audience, using DLR 60 2.0's, can tune in any of these channels (they can toggle back and forth between CH 0 for floor speaker and CH 1-4 for interpreted languages).
- Features
Features
- Can accommodate floor (or common) language, plus 4 languages (expandable up to 14 languages)
- Quick set-up
- No base station, console or mixing board needed.
- Lightweight — saves on shipping costs
- Expandable solution — can grow with your needs
- 2.4GHz operation — legal for use in most countries
- All-day operation on a single, full charge
- Any number of listeners (with DLR 60 2.0 receivers)
- IC-2 Interpreter’s Control Console(s) also can be integrated for interpreter’s booth
- Specification
DLT 100 2.0 Transceiver Color Black and silver Enclosure Shatter resistant PC/ABS plastic Battery Type Li Polymer with smart charge built into transceiver Battery Life Up to 14 hrs talk time per charge Charge Time 5 hrs. TFP 045 with cable and international adapters Channels Up to 15 simultaneous channels (Interpretation mode); Up to 4 simultaneous groups (2 way mode) Operating Frequencies 2.4GHz (ISM band) 2.402 – 2.476GHz FHSS Frequency Response 150 – 11KHz S/N Ratio 69 dB (A weighted) THD 0.33 % Microphone Input Internal microphone (disabled when MIC jack engaged) and 3.5mm stereo jack Audio Output Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041). Internal speaker. 16mW @ 33Ω Range Up to 100ft outdoors and 200ft indoors Modulation GFSK, binary CDMA RF Output 14 dBm Max Security Code 87 bit encryption Controls Front push buttons for volume up/down, quick group select, menu access and selection, MIC on/off, Output 3.5mm stereo/mono jack 30 pin charging jack Side Tone Adjustable: Off (0dB), -6dB, -12dB below volume Speaker Internal speaker (disabled when ear jack is engaged) Indicators LCD (Group, channel, volume level, battery status, mode, signal strength) LED’s Charge status, voting-Red LED around talk button when enabled; Amber LED-voting feature activated Maximum Presenters Two presenters at any given time Dimensions (H x W x D) 4.1" (104 mm) x 2.4" (61 mm) x 0.4" (10 mm) Weight 0.18 lb (0.08 kg) DLR 60 2.0 Receiver Frequency Band 2.4 GHz (ISM band) Modulation GFSK digital transmission Range Up to 100 ft outside, Up to 200 ft inside Multi Channel Up to 15 simultaneous channels (one way mode) Case Material Black ABS Plastic Battery Life Alkaline Disposable (BAT 010-2): Up to 27 hrs; NiMH Rechargeable (BAT 022-2): Up to 21 hrs Battery Type 2 x AAA Alkaline or NiMH Power Save Auto Sleep Mode after 5 min of no RF signal Frequency Response 150 Hz – 11 kHz S/N Ratio 65 dB (A weighted) THD 0.45% Antenna Internal Output 60 mW; 3.5 mm stereo jack with mono output for Headphones / Earphones; Back Speaker Controls Power, Volume +/-, Channel +/-, Setup, Battery Type Display LCD shows status: Battery Level, RSSI, Group/Channel# Indicators Red LED - blinks when charging; Green LED - stays on when charged Docking Connector 30-pin iPod Style for charging and audio out Compatible Transmitter DLT 100 Temp. Range 32° – 122°F (0° to 50°C) Chargers CHG 102, CHG 1012, Digi-Dock Dimensions (H x W x D) 3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) Weight 0.11 lb (0.05 kg) MIC 058 Dual-Headset Microphone Type Unidirectional electret Sensitivity -80 dB Frequency Response 100-12 kHz Impedance 150 Ω Operating Voltage 1-10 VDC Headphones Driver Type 50 mm, dynamic Frequency Response 10 Hz-20 kHz Impedance 46 Ω Max SPL Out 96 dB Max Power Input 100 mW Plugs Dual 3.5 mm Replacement Mic Screen WND 058 Replacement Earpads EAR 058 EAR 022 Earphones Style Around-ear speaker Plug 3.5 mm mono Cord 39” Driver Size 23 mm Nominal Impedance 32Ω Frequency Response 20 - 20kHz Max Power Input 30 mW Sensitivity 118 dB @ 1kHz Weight 0.03 lb (0.02 kg) - In The Box

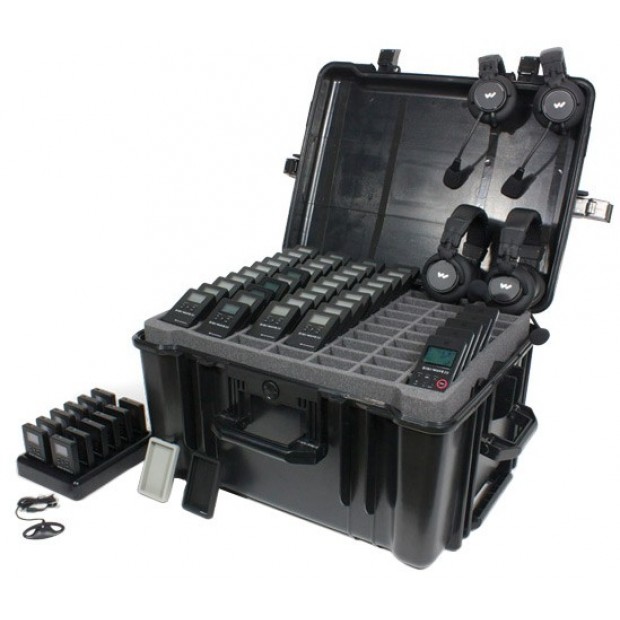

In The Box
- (5) DLT 100 2.0 transceivers
- (50) DLR 60 2.0 receivers
- (50) BAT 022-2 AAA NiMH rechargeable batteries
- (4) MIC 058 dual-headset microphones
- (50) EAR 022 surround earphones
- (1) CHG 1012 12-bay, drop-in charger
- (1) CCS 049 heavy-duty carry case
- (4) CCS 044 BK silicone skins (Black)
- (1) CCS 044 GR silicone skin (Gray)
