Williams Sound DWS PCS 1 300 Digi-Wave Personal Communication System (Discontinued)
Write a Review
Williams Sound DWS PCS 1 300 Digi-Wave Personal Communication System (Discontinued)
Part #:
DWS PCS 1 300
Model #:
DWS PCS 1 300
Availability:
View new model
Contact us for comparable solutions.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
The Williams Sound DWS PCS 1 300 Digi-Wave Personal Communication System features digital technology that makes it easier to hear in everyday situations by reducing background noise and compensating for poor room acoustics or distance from the sound source. It is beneficial for an array of personal listening scenarios from conversations around the coffee table to hearing every word of your favorite TV program. Simply place the DLT 300 near the sound source.
Features
- Crystal-clear audio
- Multiple channels available
- Patented, interference-reduction technology provides seamless, secure operation
- 2.4 GHz operation works well in RF-saturated environments
- Range of up to 100 feet outdoors/200 feet indoors (depending on environmental conditions)
Specifications
| DLR 360 Receiver | |
|---|---|
| Frequency Band | 2.4 GHz (ISM band) |
| Modulation | FSK |
| Multi Channel | Up to 15 simultaneous channels (one way mode) |
| Case Material | Black ABS Plastic |
| Battery Type | 2 x AAA Alkaline or NiMH |
| Battery Life | Alkaline Disposable (BAT 010-2), NiMH Rechargeable (BAT 022-2) |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Audio Frequency Response | Conference Mode: 140 – 11.5 KHz, Intercom Mode: 140 – 7.6 KHz |
| SNR | 65 dB (A-weighted) |
| THD | 0.1% (typical) |
| Antenna | Internal |
| Headphone Audio Output | 3.5 mm stereo jack with mono output for headphones, earphones, or neckloop 27 mW maximum @33Ω mono |
| Controls | Power, Volume +/-, Channel +/-, Setup, Battery Type |
| Display | LCD shows status: Battery Level, RSSI, Group/Channel# |
| Indicators | Red LED - blinks when charging, Green LED - stays on when charged |
| Docking Connector | 30-pin iPod Style for charging and audio out |
| Compatible Transmitter | DLT 300 only |
| Temp. Range | 32° – 122°F (0° to 50°C) |
| Optional Chargers | 2-bay CHG 102, 12-bay CHG 1012, TFP 045 |
| Accessories | Silicone Skin, Lanyard, Wrist Strap |
| Approvals | FCC, Industry Canada, RoHS, CE, WEEE, RCM |
| Warranty | 2 years parts and labor (90 days on accessories) |
| Dimensions (H x W x D) | 3.54” (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) |
| Weight | 0.1034 lbs (0.047 kg) |

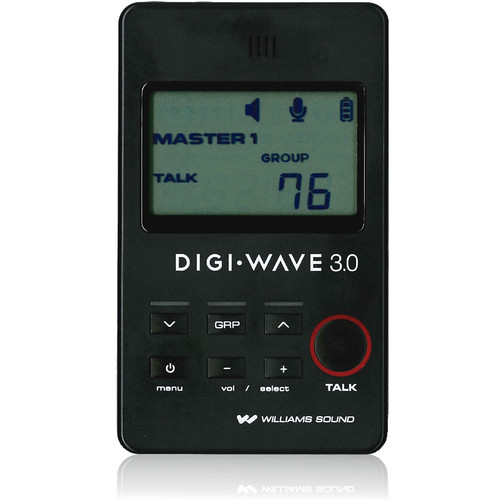

| DLT 300 Transceiver | |
| Color | Black/Silver (Front/Back) |
| Case Material | Black ABS plastic |
| Battery type | Lithium Polymer with smart charge built into transceiver; 2000 mAH |
| Battery life | Up to 14 hrs talk time per charge Current consumption range |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Charge time | 5 hrs. TFP 045 with cable and international adapters |
| Optional Chargers | 2-bay CHG 102, 12-bay CHG 1012, TFP 045 |
| Simultaneous Channels/Groups/Talkers | Up to 15 simultaneous channels (0-14) (Interpretation mode) |
| Operating frequencies | 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS |
| Audio Frequency response (-3dB Knee Level) | Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz |
| SNR | 74 dB (A-weighted, Maximum output) |
| THD | 0.33 % |
| Microphone input | Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (tip/sleeve) |
| Headphone output | 3.5 mm phone jack; 33 Ω load |
| Audio output | Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal speaker |
| Range | Up to 200 ft outdoors and 300 ft indoors |
| Modulation | FSK |
| RF output | 14 dBm Typical |
| Security | 87 bit encryption, Secure Key Code, Setup Lock (SLOC) |
| Outputs | 3.5 mm stereo/mono headphone jack; 30 pin charging jack with audio out to base stations |
| Side tone | -12 dB below volume, tone variation |
| Indicators | LCD |
| LED’s | (charge status) Red LED around talk button when enabled |
| Docking Connector | 30-pin Connector for charging and audio in/out |
| Compatible Receiver | DLR 360 only |
| Dimensions (H x W x D) | 2.43" (61.8 mm) x 4.07" (103.3 mm) x 0.44" (11.3 mm) |
| Weight | 0.181 lbs (0.082 kg) |

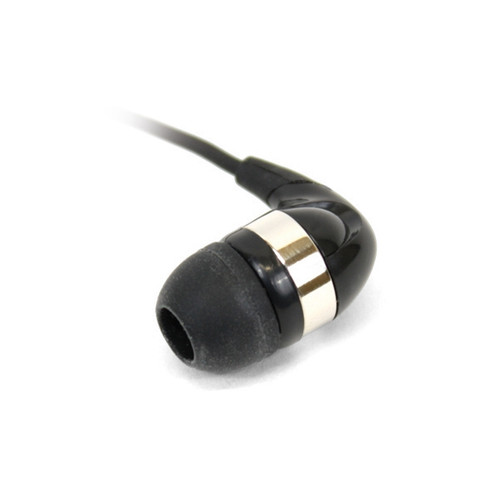

| EAR 041 Earphone | |
| Style | Single, in-ear, isolation earphone |
| Plug | 3.5 mm mono |
| Cord | 39” |
| Driver Size | 10 mm |
| Nominal Impedance | 16Ω |
| Freq. Response | 20 - 20kHz |
| Max Power Input | 5 mW |
| Sensitivity | 104 dB @ 1kHz |
| Replacement Silicone Tip | EAR 043 (0ne pair) |
| Weight | 0.013 lbs (6 g) |

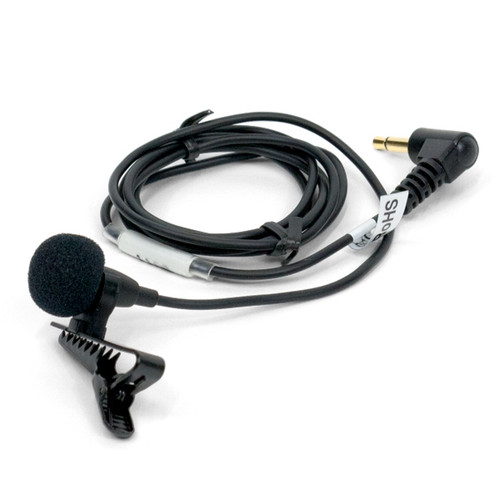

| MIC 090 Lapel Mic | |
| Color | Black |
| Plug | 3.5 mm mono |
| Nominal Impedance | 1500Ω @ 1kHz |
| Phantom Powered | No |
| Operating Voltage | 1.5 - 10VDC |
| Freq. Response | 20 - 18kHz |
| Pick-Up Pattern | Omni-direct |
| Transducer Type | Back electret |
| Max Input Sound Level | 110dB SPL |
| Sensitivity | -56dB ± 3dB |
| Replacement Windscreen | WND 090 |
| Replacement Lapel Clip | CLP 090 |
| Cord | 39” (990.6 mm) |
| Weight | 0.05 lbs (0.023 kg) |
DOCUMENTS
System Includes
- (1) DLT 300 transceiver
- (1) DLR 360 receiver
- (1) BAT 010-2 AAA alkaline batteries
- (1) MIC 090 lapel mic
- (1) EAR 041 earphone

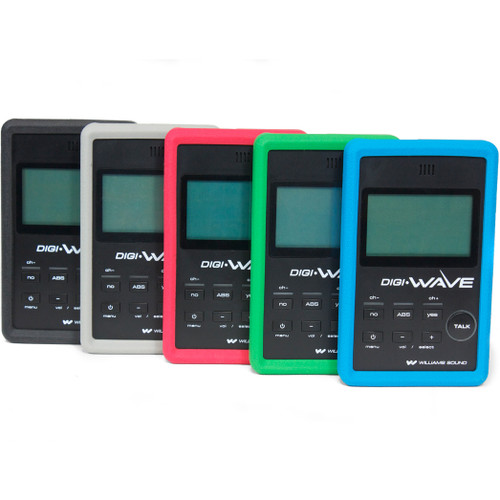

- (1) CCS 044 silicone skin
- (1) CCS 043 system carry case
