Williams AV DWS TGS 11 400 RCH Digi-Wave Tour Guide System
The DWS TGS 11 400 RCH is a wireless tour guide system for one guide and up to 11 listeners. It enhances communication between tour guide and group, and helps overcome background noise and distance from the tour guide. Group members have listen-only capabilities.
Applications Include:
| DLT 400 Transceiver | |
|---|---|
| Color | Black/Silver (Front/Back) |
| Case Material | Black ABS Plastic |
| Battery Type | Lithium Polymer with smart charge built into transceiver 1800 mAH |
| Battery Life | Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Charge Time | 5 hrs. approx. |
| Operating Frequencies | 2.4 GHz (ISM band) 2402 - 2476 MHz FHSS |
| Audio Frequency Response (-3dB Level) | Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz |
| SNR | 73 dB (A-weighted, default Rx volume with mic input) |
| THD | 0.1 % (Default Volume, 1kHz) |
| Microphone Input | Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range |
| Line Input | USB-C |
| Headphone Output | 3.5 mm TRRS headphone jack 25 mW, R 32 ohms |
| Audio Output | Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) |
| Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Modulation | FSK |
| RF Output | 19 dBm Typical |
| Security | 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings |
| Side Tone | -6 dB below volume, tone variation (Off, Low and High settings available) |
| Indicators | OLED |
| LEDs | Red LED around Talk button when enabled Bi-color, changing green and red LED at top |
| Charging Connectors | USB-C; Two contacts for use with CHG 412 |
| Compatible Receiver | DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations |
| Operating Tempurature Range | 14º to 113ºF (-10º to 45ºC) |
| Approvals | FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki |
| Dimensions (H x W x D) | 2.6" (66 mm) x 4.22" (107.3 mm) x 0.5" (12.6 mm) |
| Weight | 3.3 oz (94 g) including battery |
| DLR 400 RCH Receiver | |
| Color | Black |
| Battery Type | Lithium Polymer with smart charge built into transceiver 1800 mAH |
| Battery Life | Up to 32 hrs per charge @ 1ch Rx |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Charge Time | 5 hrs. approx. |
| Operating Frequencies | 2.4 GHz (ISM band) 2402 - 2476 MHz FHSS |
| Audio Frequency Response (-3dB Level) | Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz |
| SNR | 73 dB (A-weighted) |
| THD | 0.1% (Default Volume, 1kHz) |
| Headphone Output | 3.5 mm TRRS headphone jack 25 mW, R32 Ω |
| Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Modulation | FSK |
| RF Sensitivity | -92 dBm |
| Security | 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings |
| Indicators | OLED |
| LEDs | Bi-color, changing green and red LED at top |
| Charging Connectors | USB-C Two contacts for use with CHG 412 |
| Compatible Units | DLT 400, DLT 300 with some limitations |
| Operating Temperature Range | 14º to 113ºF (-10º to 45ºC) |
| Approvals | FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki |
| Dimensions (H x W x D) | 2.6" (66 mm) x 4.22" (107.3 mm) x 0.5" (12.6 mm) |
| Weight | 3.3 oz (94 g) including battery |

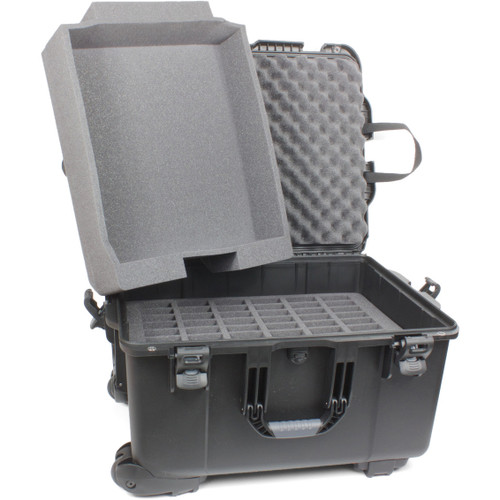

| CCS 054 Carrying Case | |
| Dimensions (H x W x D) | 13.2" (335.3 mm) x 19.7" (500.4 mm) x 26.2" (665.5 mm) |
| Weight | 23 lbs (10.4 kg) |
