- Description
Details

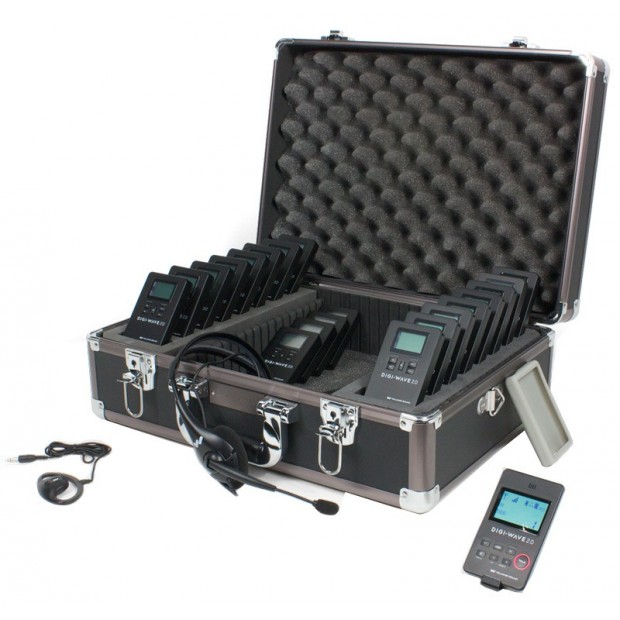

The Williams Sound DWS TGS 20 2.0 Digi-Wave Portable Tour Guide System 20 is a one-way, wireless tour guide system in the 2.4 GHz band. It is great for tour groups of up to 20 members. This system enhances communication between the tour guide and group and helps overcome background noise and distance from the tour guide. It can be used in factories, museums, tourist attractions, or bus tours. Group members have listen-only capabilities.
- Features
Features
- Single-presenter/multiple-listener system – expandable to multiple presenters/unlimited participants
- Completely portable – no base station required
- Easy to use, push-to-talk functionality
- Frequency-hopping technology subject to less interference, offers greater reliability in an array of tour group applications.
- Four independent tour groups can be operating simultaneously within a range of up to 100 feet outdoors/200 feet indoors (in 1- or 2-way mode, depending on environmental conditions). Outside of this range, other groups can be in operation.
- Legal for use in most countries.
- 2-year-warranty
- Specification
DLT-100 2.0 Transceiver Color Black and silver Enclosure Shatter resistant PC/ABS plastic Battery type Li Polymer with smart charge built into transceiver Battery life Up to 14hrs talk time per charge Charge time 5hrs. TFP 045 with cable and international adapters Optional two-bay charger CHG 102 Channels Up to 15 simultaneous channels (Interpretation mode) Up to 4 simultaneous groups (2 way mode) Operating frequencies 2.4GHz (ISM band) 2.402 – 2.476GHz FHSS Frequency response 150 – 11KHz S/N ratio 69dB (A weighted) THD 0.33 % Microphone input Internal microphone (disabled when MIC jack engaged) and 3.5mm stereo jack Audio output Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041), Internal speaker, 16mW @ 33Ω Range Up to 100ft outdoors and 200ft indoors Modulation GFSK, binary CDMA RF output 14dBm Max Security code 87 bit encryption Output 3.5mm stereo/mono jack 30 pin charging jack with audio out to base stations Side tone -12dB below volume Speaker Internal speaker (disabled when ear jack is engaged) Indicators LCD (Group, channel, volume level, battery status, mode, signal strength) LED’s Red LED around talk button when enabled. Amber LED signifying voting feature activated Maximum presenters Two presenters at any given time Dimensions (H x W x D) 4.1" (103 mm) x 2.4" (62 mm) x 0.4" (11 mm) Weight 0.18 lb (0.08 kg) including battery DLR 60 2.0 Receiver Frequency Band 2.4GHz (ISM band) Modulation GFSK digital transmission Range Up to 100ft outdoors, up to 200ft indoors Multi Channel Up to 15 simultaneous channels (one way mode) Maximum presenters Two presenters at any given time (two way mode) Battery life Alkaline Disposable (BAT 010-2): Up to 27 hrs; NiMH Rechargeable (BAT 022-2): Up to 21 hrs Battery type 2 x AAA Alkaline or NiMH Frequency response 150 – 11Khz S/N ratio 65dB (A weighted) THD 0.45% Dimensions (H x W x D) 3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) Weight 0.11 lb (0.05 kg) with no batteries MIC 044 2P Headset Microphone Color Black Plug 2 x 3.5mm Cord 39" Phantom Powered No Nominal Impedance 32Ω Freq. Response 150 - 18kHz Pick-Up Pattern Cardiod Transducer Type Electret Cond Sensitivity 105dB EAR Replacement Windscreen WND 008 Replacement Earpad EAR 035 Weight 0.16 lb (0.07 kg) EAR 022 Earphones Style Around-ear speaker Plug 3.5mm mono Cord 39" Driver Size 23 mm Nominal Impedance 32Ω Freq. Response 20 - 20kHz Max Power Input 30 mW Sensitivity 118 dB @ 1kHz Weight 0.03 lb (0.02 kg) CCS 044 Silicone Skin Dimensions (H x W x D) 4.38" (109 mm) x 2.75" (70 mm) x 0.5" (13 mm) Weight 0.11 lb (0.05 kg) CCS 030 DW 16 System Carry Case Dimensions (H x W x D) 18.25" (464 mm) x 7.0" (178 mm) x 14.13" (359 mm) Weight 6.80 lbs (3.08 kg) - In The Box
In The Box

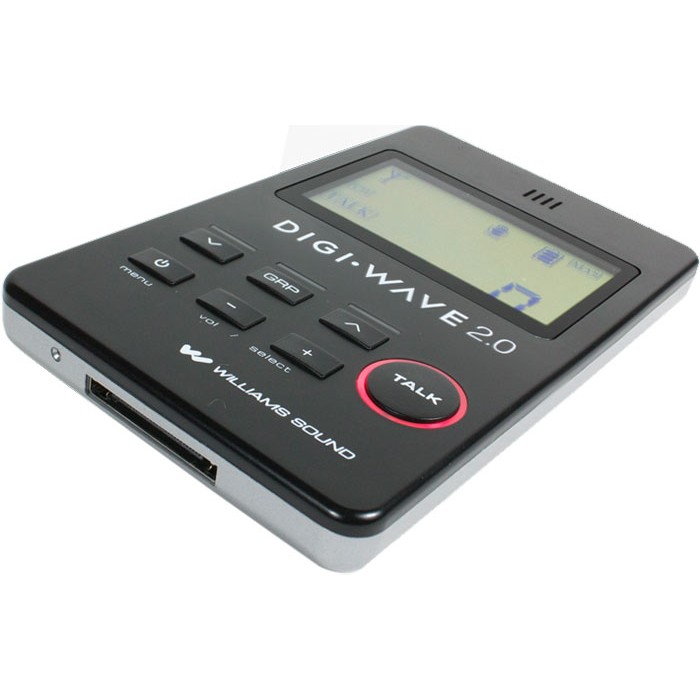

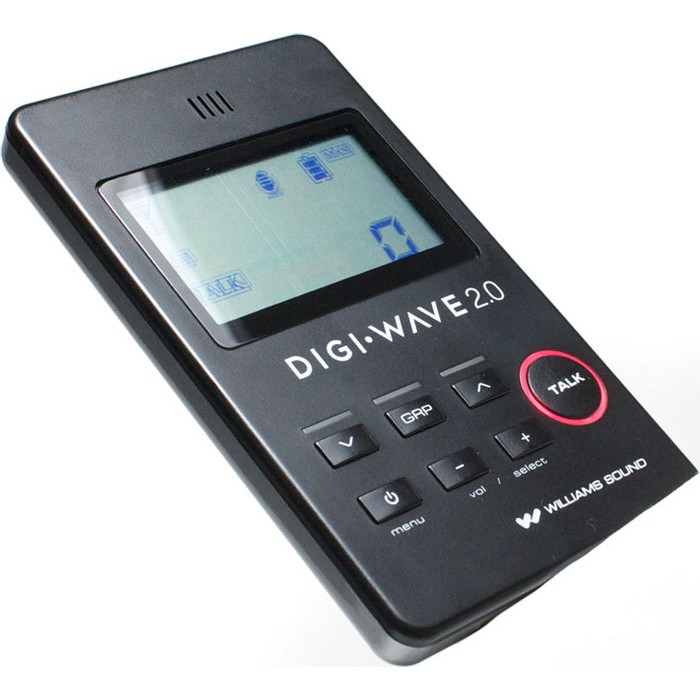

- (1) DLT 100 2.0 transceiver
- (20) DLR 60 2.0 receivers
- (20) BAT 010-2 AAA alkaline batteries

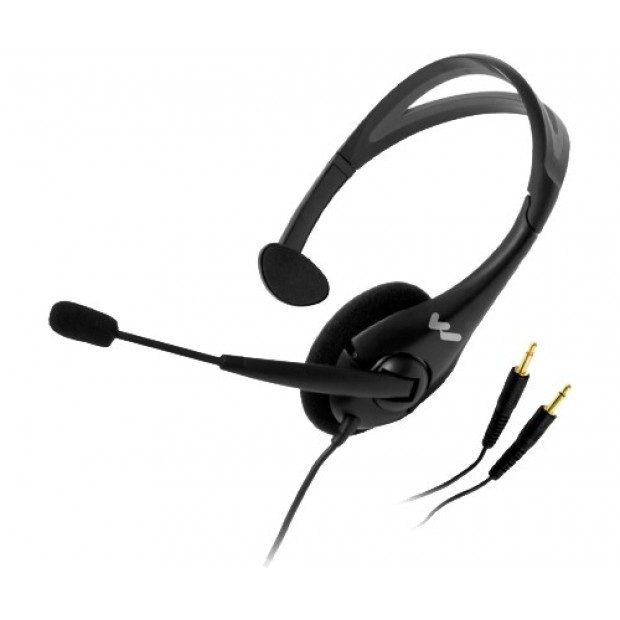

- (1) MIC 044 2P headset microphone
- (20) EAR 022 earphones
- (1) CCS 044 silicone skin

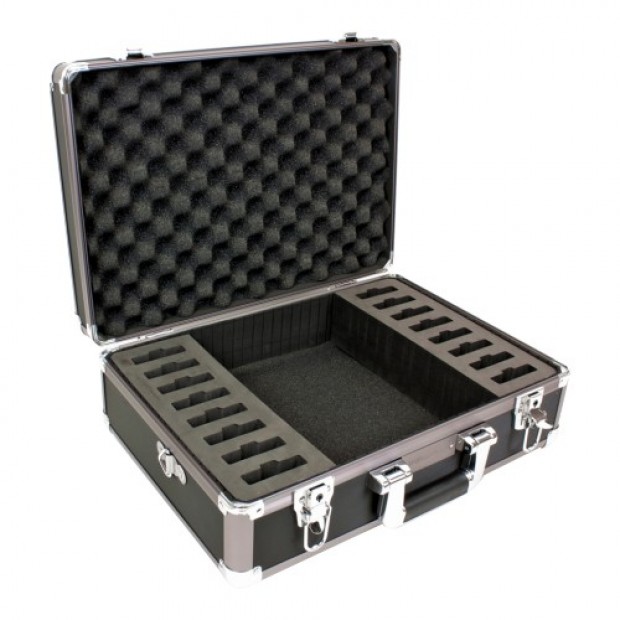

- (1) CCS 030 DW 16 system carry case
