| DLT 300 Transceivers |
| Color |
Black/Silver (Front/Back) |
| Case Material |
Black ABS Plastic |
| Battery Type |
Lithium Polymer with Smart Charge Built into Transceiver; 2000 mAH |
| Battery Life |
Up to 14 hrs Talk Time Per Charge Current Consumption Range: 39 mA @ Idle to 94 mA w/1 Ch Tx and 3 Ch Rx |
| Power Save |
Auto Sleep Mode after 5 Minutes of No RF Signal from Compatible Devices |
| Charge Time |
5 hrs. TFP 045 with Cable and International Adapters |
| Optional Chargers |
2-Bay CHG 102, 12-Bay CHG 1012, TFP 045 |
| Simultaneous Channels/Groups/Talkers |
Up to 15 Simultaneous Channels (0-14) (Interpretation Mode) Up to 4 Simultaneous Groups (2 Way Mode) Up to 4 Simultaneous Talkers Per Group (2-Way Mode) Up to 6 Simultaneous Talkers Per Group (2-Way Intercom Mode) |
| Operating Frequencies |
2.4 GHz (ISM Band); 2402 - 2476 MHz FHSS |
| Audio Frequency Response (-3dB Knee Level) |
Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz |
| SNR |
74 dB (A-Weighted, Maximum Output) |
| THD |
0.33 % |
| Microphone Input |
Internal Microphone (Disabled When MIC Jack Engaged) and 3.5 mm Phone jack (Tip/Sleeve) with Electret Microphone Bias, Adjustable Gain with 63dB Range. |
| Headphone Output |
3.5 mm Phone Jack; 33 Ω Load |
| Audio Output |
Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal Speaker (Disabled When Haedphone Jack in Use) |
| Range |
Up to 200 ft Outdoors and 300 ft Indoors (Depending Upon Environmental Conditions) |
| Modulation |
FSK |
| RF Output |
14 dBm Typical |
| Security |
87 Bit Encryption, Secure Key Code, Setup Lock (SLOC) |
| Controls |
Front Panel Push Buttons for Volume Up/Down, Group Select, Menu Access and Selection, Timer, Time, MIC On/Off, Power On/Off, Tone Control SLOC Access and Secure Key Access. System Reset Button (Rear Panel) |
| Outputs |
3.5 mm Stereo/Mono Headphone Jack; 30 Pin Charging Jack with Audio Out to Base Stations |
| Side Tone |
-12 dB Below Volume, Tone Variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB] |
| Indicators |
LCD (Group, Channel, Volume Level, Battery Status, Mode, Number of People with Talk Button On) |
| LED’s |
(Charge Status) Red LED Around Talk Button When Enabled |
| Docking Connector |
30-Pin Connector for Charging and Audio In/Out |
| Compatible Receiver |
DLR 360 Only |
| Approvals |
FCC, Industry Canada, CE, RoHS, WEEE, RCM |
| Warranty |
2 Years Parts and Labor (90 Days on Accessories); 6 Months on Internal Battery |
| Dimensions (H x W x D) |
2.43" (61.8 mm) x 4.07" (103.3 mm) x 0.44" (11.3 mm) |
| Weight |
0.062 lbs (0.082 kg) |

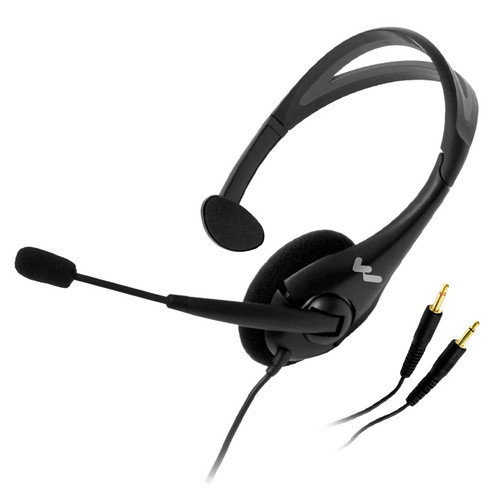

| MIC 044 2P Headset Microphones |
| Color |
Black |
| Plug |
2 x 3.5 mm |
| Cord |
39" |
| Phantom Powered |
No |
| Nominal Impedance |
32Ω |
| Freq. Response |
150 - 18kHz |
| Pick-Up Pattern |
Cardiod |
| Transducer Type |
Electret Cond |
| Sensitivity |
105dB EAR |
| Replacement Windscreen |
WND 008 |
| Replacement Earpad |
EAR 035 |
| Warranty |
90 Days |
| Weight |
0.1625 lbs (0.074 kg) |
