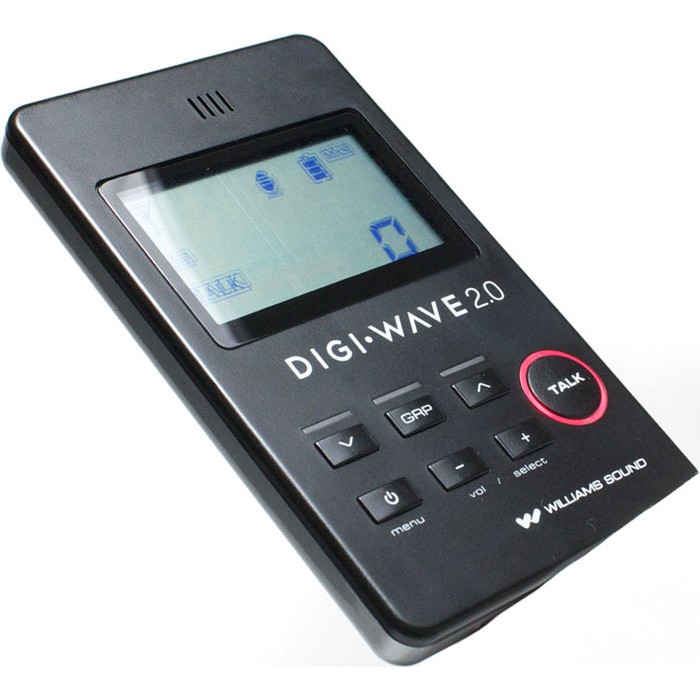

The Williams Sound DWS TGS VIP 12 Digi-Wave Portable Tour Guide System is a 2.4 GHz two-way, wireless tour guide system. It allows two or more tour guides to combine skills and guide as a team to a group. This helps in enhancing communication between tour guide and tour group members. One- and two-way simultaneous communication is available: two tour guides can speak simultaneously; group members can hear both tour guides; group can participate as listen-only or can access 2-way mode with the quick push of a button. Two-way capability allows for group Q&A. Tour guides always control the discussion.
| Color | Black and silver |
|---|---|
| Enclosure | Shatter resistant PC/ABS plastic |
| Battery type | Li Polymer with smart charge built into transceiver |
| Battery life | Up to 14hrs talk time per charge |
| Charge time | 5hrs. TFP 045 with cable and international adapters Optional two-bay charger CHG 102 |
| Channels | Up to 15 simultaneous channels (Interpretation mode) Up to 4 simultaneous groups (2 way mode) |
| Operating frequencies | 2.4GHz (ISM band) 2.402 – 2.476GHz FHSS |
| Frequency response | 150 – 11KHz |
| S/N ratio | 69dB (A weighted) |
| THD | 0.33 % |
| Microphone input | Internal microphone & 3.5mm stereo jack w/ electret microphone bias, adjustable gain with 63dB range |
| Audio output | Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041), Internal speaker, 16mW @ 33Ω |
| Range | Up to 100ft outdoors and 200ft indoors |
| Modulation | GFSK, binary CDMA |
| RF output | 14dBm Max |
| Security code | 87 bit encryption |
| Output | 3.5mm stereo/mono jack 30 pin charging jack with audio out to base stations |
| Side tone | Adjustable: Off (0dB), -6dB, -12dB below volume |
| Speaker | Internal speaker (disabled when ear jack is engaged) |
| Indicators | LCD (Group, channel, volume level, battery status, mode, signal strength) |
| LED’s | Red LED around talk button when enabled. Amber LED signifying voting feature activated |
| Maximum presenters | Two presenters at any given time |
| Dimensions (H x W x D) | 4.1" (103 mm) x 2.4" (62 mm) x 0.4" (11 mm) |
| Weight | 0.175 lbs (0.08 kg) including battery |

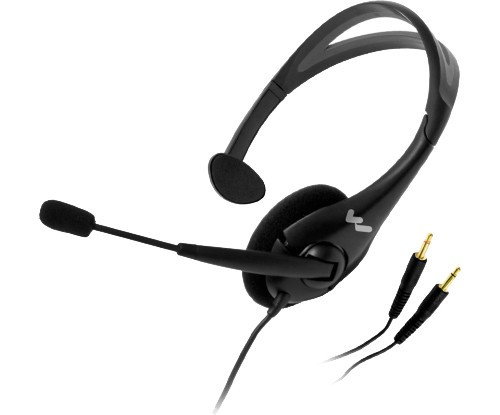

| Color | Black |
| Plug | 2 x 3.5mm |
| Cord | 39" |
| Phantom Powered | No |
| Nominal Impedance | 32Ω |
| Freq. Response | 150 - 18kHz |
| Pick-Up Pattern | Cardiod |
| Transducer Type | Electret Cond |
| Sensitivity | 105dB EAR |
| Replacement Windscreen | WND 008 |
| Replacement Earpad | EAR 035 |
| Weight | 0.163 lbs (0.074 kg) |
| Dimensions | 4.38" (111 mm) x 2.75" (70 mm) x 0.5" (13 mm) |
| Weight | 0.11 lb (0.05 kg) |
| Dimensions (H x W x D) | 21.5" (546 mm) x 17.5" (445 mm) x 8.5" (216 mm) |
| Weight | 9.5 lbs (4.31 kg) |
