The Americans with Disabilities Act (ADA) requires public facilities to provide equal access to people with disabilities, including those who are hard-of-hearing. The Williams Sound FM ADA Kit 1 is a convenient and economical solution for satisfying these requirements. This kit provides everything you need to accommodate individuals for hearing accessibility in large venues such as auditoriums, theaters, conferences and houses of worship. The PPA T27 transmitter broadcasts a speakers voice, music program or audio source wirelessly up to 1000 feet to a listening audience.
| Frequency Selector | External switches, 17 channels (lockable) |
|---|---|
| RF Field Strength | Does not exceed 80mV/m @ 3m |
| Nominal Range | Up to 1000 feet (305 m) |
| Modulation | FM, 75 kHz deviation (wide–band) max. |
| Frequency Response | 85Hz - 14kHz ±3dB |
| Signal to Noise Ratio | 65 dB with R35 Receiver |
| Microphone Input | 3.5mm mini phone jack, supplies +DC for electret mics |
| Mic Input Level | 1–10 mV, nominal |
| Line-Level Input | RCA Jack, Hi Z, unbal. |
| Line Input Level | .1–1 Vrms, nominal |
| Input Attenuator | Pot, screwdriver-adjustable |
| Dimensions (H x W x D) | 1.3" (33 mm) x 4.1" (104.1 mm) x 6.1" (154.9 mm) |
| Weight | 7.8 oz. (221 g) |
| Battery Type | (2) AA Alkaline or 2 x AA NiMH |

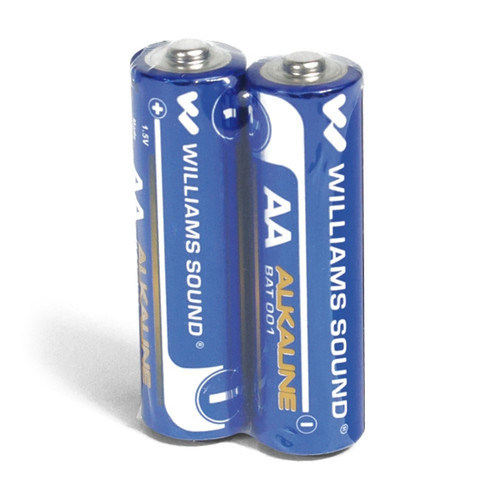

| Battery Life | Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs |
| Temperature Range | – 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Intermediate Frequency | 75 kHz |
| LED Indicator | Power: Green; Low Battery: Flashes Green |
| Frequency Response | 200 – 15 kHz |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 ohms |
| Output Connector | 3.5 mm stereo/mono phone jack |

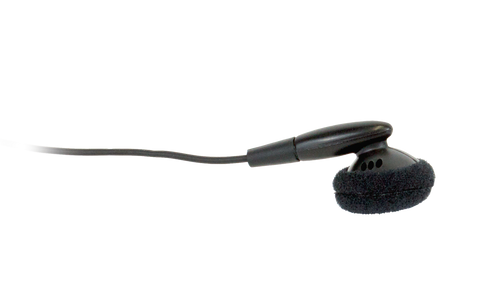

| Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 Ω |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Dimensions (H x W x D) | 4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Plug | 3.5 mm mono |
| Cord length | 39 inches |
| Impedance | 32 Ohms |
| Frequency Range | 20 - 20kHz |
| Max input power | 5mV |
| Sensitivity | 128dB @ 1kHz |
| Driver size | 13 mm |
| Weight | 0.019 lbs (9g) |
