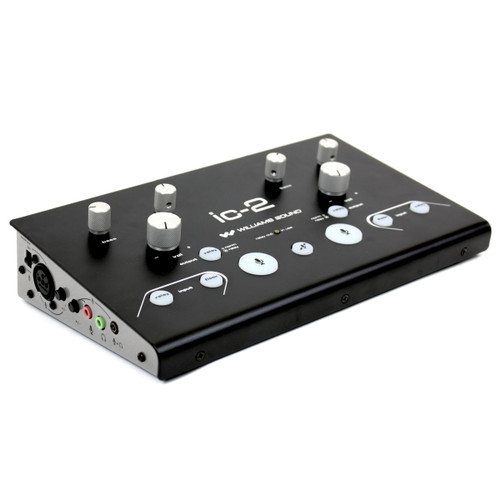

The IC-2 Interpreter Control Console is an audio control center for simultaneous interpretation of one or more languages. As a stand-alone unit, it allows one or two interpreters to monitor floor or relay sources, activate microphone inputs, and route the interpretation signal to one of two language groups. It is ideal for presentation-style conferences of up to 14 languages, where a floor and a single relay language are used. It can be used with Williams AV FM, infrared, and Digi-Wave transmitters for portable or fixed installations. It is also designed to meet international standards for portable interpretation consoles.
| Inputs/Outputs | Specifications |
|---|---|
| Floor In | 3-pin XLR female jack, balanced (or unbalanced) input with 24k Ω differential input impedance |
| XLR Microphone Inputs | 3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power |
| 3.5mm Microphone Inputs | Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black |
| 3.5mm TRRS Headphone Output | 3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. |
| 3.5mm Headphone Output | 3.5mm TRS phone jack, mono or stereo headphone, 8 Ω minimum |
| Norm Out, Relay Out | 3-pin XLR male jack, balanced output. Max output is +19dBu into 600 Ω balanced load impedance. |
| Volume | Left and Right rotary, controls headphone volume |
| Bass and Treble Tone | Left and right rotary with center detent, controls headphone bass and treble tone levels |
| Mute | Push button, backlit red, mutes left and right mics while pressed |
| Mic On | Push button, backlit bright red, activates microphone |
| Floor Input, Relay Input | Push buttons, backlit blue, select listening language group |
| Relay Output | Push button, backlit yellow, selects microphone output language group |
| Gain Adjust | Rotary gain pots control level of microphone and Floor audio |
| Phantom Power | Slide switch enables 12VDC Simplex power to XLR microphone |
| Norm Feedthrough | Slide switch enables Floor feedthrough to Norm Out XLR jack. |
| Relay Feedthrough | Slide switch enables Floor feedthrough to Relay Out XLR jack. |
| Ground Lift | Slide switch disconnects Chassis and Audio Grounds internal to the console. |
| Peak Level Indicator | Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking |
| Relay Output in Use Indicator | Yellow LED on front panel indicates when Relay Output is in use |
| Frequency Response | 45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble |
| Distortion at 1kHz | |
| Signal to Noise Ratio | >82dB @ 1kHz |
| Crosstalk Attenuation | >63dB @ 1kHz |
| Tone Controls | Bass: +12dB Boost or -12dB Cut @ 100HzTreble: +12dB Boost or -12dB Cut @ 10kHz |
| Power | External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A |
| Dimensions (H x W x D) | 10" (254 mm) x 6.35" (62 mm) x 2.45" (62 mm) |
| Weight | 3.4 lbs (1.5 kg) |
