Williams AV IR SYS32 SoundPlus T3 Medium-Area Infrared System with Headphones

Williams AV IR SYS32 SoundPlus T3® Infrared System with Headphones

The Williams AV IR SYS32 is a complete, high-performance infrared assistive listening system designed to deliver crystal-clear, secure audio while meeting ADA accessibility requirements. It is built around the advanced SoundPlus® T3 infrared transmitter, which features next-generation high-efficiency LED technology. This provides a powerful, reliable signal with superior coverage—up to 32,000 square feet in single-channel mode—while minimizing dropouts, background noise, and reverberation.

The dual-channel T3 transmitter operates on two carrier frequencies (2.3 MHz and 2.8 MHz), enabling simultaneous assistive listening and language interpretation or audio description. Its LED-based design ensures high reliability and efficiency, while maintaining signal privacy and eliminating audio spillover into adjacent rooms—ideal for sensitive or confidential environments.

The IR SYS32 includes everything needed to create a fully ADA-compliant listening environment: three four-channel WIR RX22-4 receivers, three HED 021 folding mono headphones, two NKL 001 neckloops (compatible with T-coil hearing aids or cochlear implants), an omnidirectional wall/ceiling mounting bracket, a power supply, and a "Hearing Assistance Available" wall plaque for clear accessibility signage. The system also supports Power-over-Ethernet (PoE) for flexible installation options.

Each receiver features dual infrared detectors, channel selectability, and long-lasting battery performance—up to 60 hours on alkaline batteries. The neckloops include breakaway safety connectors for added user protection. The transmitter also features balanced and unbalanced audio inputs, microphone input with gain control, and LED signal indicators, all housed in a slim, fanless, convection-cooled enclosure.

Applications

Infrared audio systems like the IR SYS32 are ideal for applications requiring privacy, confidentiality, or where sound must remain contained within a defined space. This includes:

• Medical centers and treatment rooms
• Courtrooms, jury deliberation rooms, and city council chambers
• Classrooms and lecture halls
• Auditoriums and theaters
• Conference rooms, corporate boardrooms, and training centers



Whether enhancing speech intelligibility, providing audio descriptions, or enabling multilingual interpretation, the Williams AV IR SYS32 delivers reliable, secure, and discreet audio performance for a wide range of professional environments.

• Delivers crystal-clear, secure audio using infrared technology
• Covers up to 32,000 sq ft in single-channel mode
• Operates on two IR channels (2.3 MHz and 2.8 MHz)
• Advanced high-efficiency LED emitters reduce dropouts
• Includes SoundPlus® T3 transmitter with wall/ceiling mounting bracket
• Ideal for confidential environments like courtrooms and boardrooms
• Includes 3 WIR RX22-4 four-channel receivers
• Includes 3 HED 021 folding mono headphones
• Includes 2 NKL 001 neckloops for T-coil hearing aids and cochlear implants
• ADA-compliant turnkey assistive listening system
• "Hearing Assistance Available" wall plaque included
• Balanced/unbalanced line and mic inputs with gain control
• Compatible with Power-over-Ethernet (PoE) or standard power supply
• Transmitter features sleep mode to conserve energy
• Receivers offer up to 60 hours of battery life
• Neckloop includes safety breakaway connector
• Fully compliant with ADA, FCC, CE, RoHS, WEEE, and other standards
• Backed by a 2-year parts and labor warranty

Spec Sheet

Manual

Wiring Guide

• (1) IR T3 Medium-area Infrared Transmitter

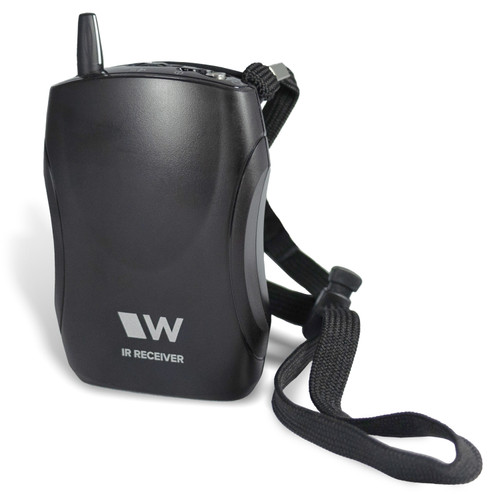

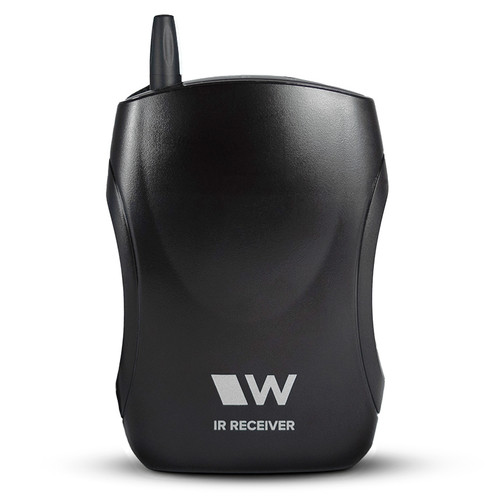

• (3) WIR RX22-4 Four-channel Infrared Receivers
• (3) HED 021 Mono Folding Headphones

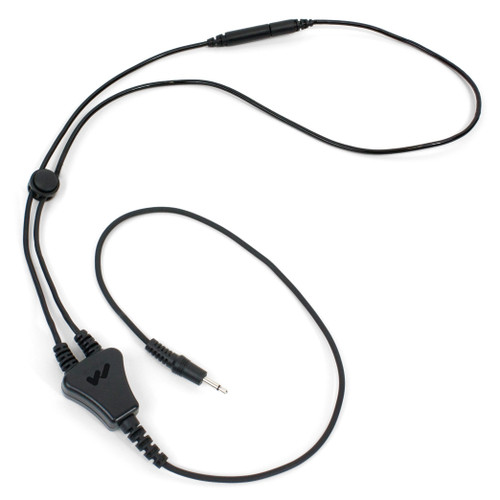

• (2) NKL 001 18" Mono Neckloops

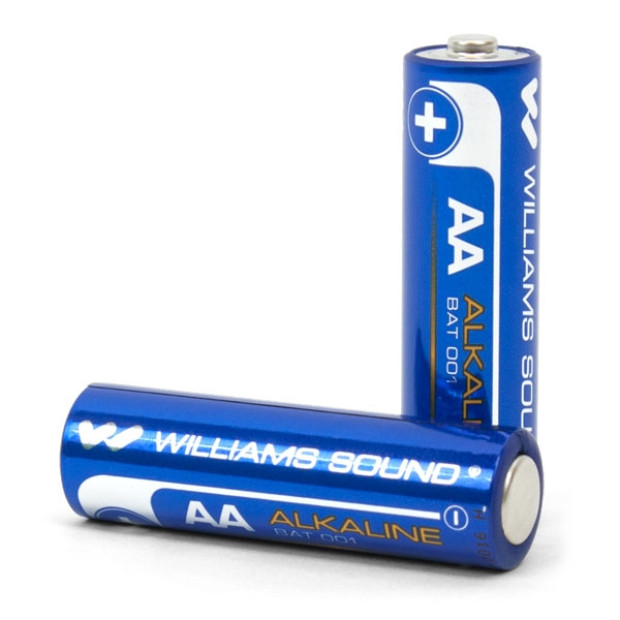

• (3) BAT 001-2 AA Alkaline Batteries
• (1) BKT 024 Wall/Ceiling Mount
• (1) IDP 008 ADA wall plaque
• (1) TFP 057 Power Supply
