Williams Sound MIC 102 Ear Set Microphone For DLTS (Discontinued)
Williams Sound MIC 102 Ear Set Microphone For DLTS (Discontinued)
By Williams AV

Williams Sound MIC 102 Ear Set Microphone For DLTS (Discontinued)

Write a Review
Part #:
MIC 102
Model #:
MIC 102
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

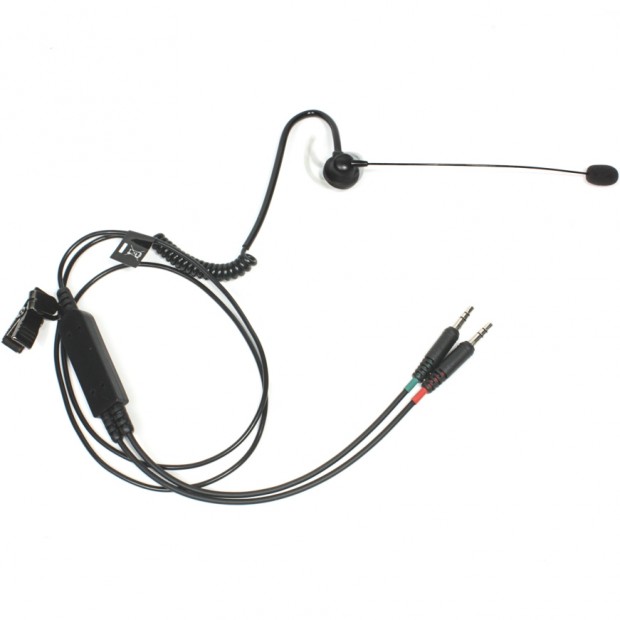

The Williams Sound MIC 102 is an in-the-ear style, discrete wire, unidirectional condenser microphone/headphone with 3.5 mm plugs and a silicone earpiece.

Description

The Williams Sound MIC 102 is an in-the-ear style, discrete wire, unidirectional condenser microphone/headphone with 3.5 mm plugs and a silicone earpiece. The MIC 102 can be used with all generation DLT transceivers.

Features
  • Discrete wire, omnidirectional condenser microphone/earpiece headphone
  • 3 silicone earpieces, different sizes
  • Lapel clip
  • 3.5 mm mono plugs
  • Recommended for all generation DLT transceivers

Specifications
Microphone
Sensitivity Range -47 ±3dB RL=2.2kΩ Vs=2.0VDC 1kHz 0dB-1V/Pa
Impedance Max 2.2kΩ 1kHz
(RL=2.2kΩ)
Frequency Response 50 - 16,000Hz
Current Consumption Max 0.5µA RL=2.2kΩ
VS=3.0VDC
Operating Voltage Range 2 - 10VDC
Speaker
Impedance 8Ω ±15% at 1200Hz at 1.0V
Rated Power 0.5W
Resonance Frequency Fo 750Hz ±20% at 1.0V
Frequency Range Fo ~ 20000Hz
Output SPL 89dB ±3dB at 0.3W/0.1m
1.0k, 1.2k, 1.5k, 2.0kHz
72dB ±3dB at 1W/1m
1.0k, 1.2k, 1.5k, 2.0kHz
Frame Material Metal
Operating/Storage Temp -20 to 85°C
Weight 0.010 lbs (0.0045 kg)

In The Box
  • Earphone/Headphone Unit, Corded with 3.5 mm Plugs
  • Lapel Clip
  • 2 Additional Silicone Earpieces
