Williams AV PPA T46 Personal PA Bodypack Transmitter
Part #:
PPA T46
Model #:
PPA T46
Availability:
2+ Week Lead Time
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
Williams AV FM PPA T46 Body Pack Transmitter
The PPA T46 personal PA bodypack transmitter will broadcast a speaker's voice or audio program on one of 17 available channels, 72 - 76 MHz, to listeners using PPA R35-8 or PPA R37 receivers or an R1600 speaker. The unit features flexible microphone and auxiliary input jacks, push-button on/off/mute controls, channel lock and selectable compression. The T46 has the ability to operate in dual channel mode, allowing the user to easily switch between two different transmitting channels, each with its own set up parameters. An OLED screen displays current operating status and menu information.
The T46 operates up to 30 hours on two (2) AA Alkaline batteries, and up to 20 hours with two (2) NiMH batteries. It has recharge capability when used with Williams AV drop-in chargers. Lightweight and portable, the PPA T46 will operate at a range of up to 150 feet (46m) from the listening audience. Ideal for providing hearing assistance to students in the classroom, tour group participants, employee training, business meetings and more.
Features
- Sleek, ergonomic design
- 17-channel selectable, 72 - 76 MHz
- Digitally synthesized frequencies
- 1.25" OLED interface displays:
- Master & aux volume level
- Mic mute
- Settings lock
- Battery level
- Easy-to-use menu-access controls:
- Microphone and auxiliary levels
- 8- or 17-channel mode selection
- Current frequency/channel number
- Display settings
- MIC input accepts electret mic with 3.5 mm mono plug
- AUX audio input accepts 2.5 mm stereo plug (i.e for MP3 or CD player)
- Range of up to 150' (with PPA R37 receiver)
- Belt clip for hands-free operation
- Meets ADA guidelines
- Made in the USA
- Lifetime PLUS Limited Warranty (90 days on accessories)
Specifications
| Color | Black/Silver |
|---|---|
| Enclosure Material | Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate |
| Operating Frequencies | Selectable, 17 channels, 72.1 – 75.9 MHz. Switchable 8 or 17 Channel Mode |
| Stability | ± .005%, frequency synthesized, crystal reference, PLL |
| Modulation | Wide-band FM, 75 kHz peak, 75 µS pre-emphasis |
| RF Output | 80 mV/m at 3 m (max. allowed by FCC rules) |
| Frequency Response | 180 Hz to 13 kHz, ± 3 dB at 1% max. THD |
| Signal-to-Noise Ratio | 65 dB (typical) transmitted |
| Transmit Antenna | Integral with microphone cord |
| Microphone | Electret type, 3.5 mm mono plug |
| External Indicators | Power LED - Green, flashes when battery is low |
| Mic Input | 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range |
| Aux Input | 2.5 mm stereo jack, adjustable gain with 60 dB range |
| Audio Compression | 1:1 (off) or 2:1 (on) selectable in menu |
| Dimensions (H x W x D) | 2.8" (71 mm) x 4.1" (104 mm) x 1.1" (28 mm) |
| Weight | 0.16 lbs (0.07 kg), no batteries |
DOCUMENTS
In The Box
- (1) PPA T46 Transmitter
- (1) WCA 087 Auxiliary Input Cable

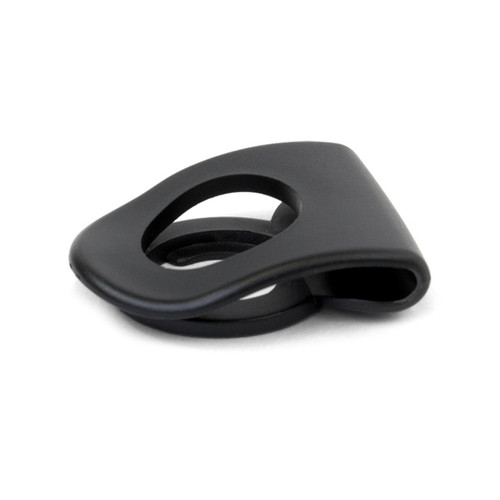

- (1) CLP 023 Belt Clip

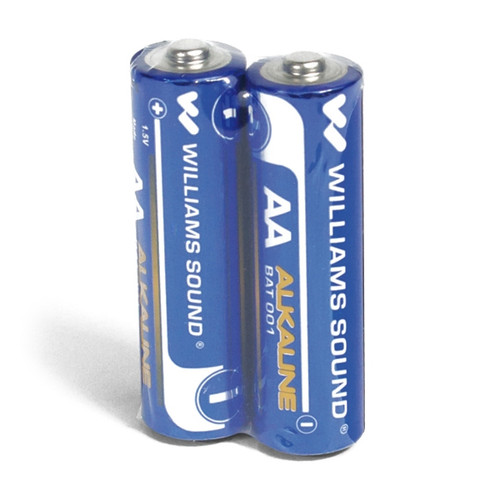

- (2) BAT 001-2 AA Batteries
