Williams Sound TGS PRO MULTI Personal PA FM Tour Guide System (Discontinued)

Description

Details

This Personal PA Tour Guide System is a lightweight, multi-channel system that helps people with hearing difficulties listen directly to the guide and control their own volume. This features eight selectable frequencies, which allows multiple tour groups to operate in the same vicinity, simultaneously, with no crosstalk or interference. No installation required — save time and money. Ensures wireless/effortless communication between guide and participants. Combines superior audio with easy-to-use controls. Designed to meet Americans with Disabilities Act (ADA) accessibility requirements.

Features

Features

Now featuring the sleek, PPA T46 FM body-pack transmitter
Allows full freedom of movement for tour groups
Easy set-up, simple operation
Eight selectable channels to meet hearing assistance needs
Auxiliary input—broadcast any audio source
150' operating range
Belt clips included for hands-free operation
Lifetime PLUS Limited Warranty (90 days on accessories)

Specification

PPA T46 FM Transmitter
Color	Black/Silver
Enclosure Material	Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum face plate

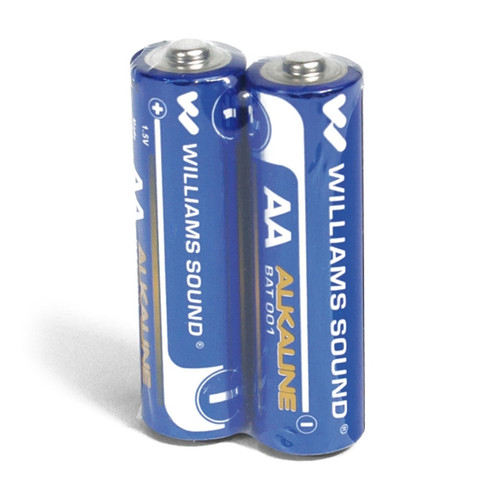

Battery Type Options	Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain
Operating Frequencies	Selectable, 17 channels, 72.1 – 75.9 MHz. Switchable 8 or 17 Channel Mode
Stability	± .005%, frequency synthesized, crystal reference, PLL
Modulation	Wide-band FM, 75 kHz peak, 75 μS pre-emphasis
RF Output	80 mV/m at 3 m (max. allowed by FCC rules)
Frequency Response	180 Hz to 13 kHz, ± 3 dB at 1% max. THD
Signal-to-Noise Ratio	65 dB (typical) transmitted
Transmit Antenna	Integral with microphone cord
Microphone	Electret type, 3.5 mm mono plug
External Indicators	Power LED - Green, flashes when battery is low
Mic Input	3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
Aux Input	2.5 mm stereo jack, adjustable gain with 60 dB range
Audio Compression	1:1 (off) or 2:1 (on) selectable in menu
Dimensions (H x W x D)	4.1" (104 mm) x 2.8" (71 mm) x 1.1" (28 mm)
Weight	0.16 lbs (0.07 kg)
PPA R35-8 Receiver
Color	Black
Battery Type Option 1	Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 50 hours battery life
Battery Type Option 2	Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 1500 mAh, up to 32 hours battery life per charge, recharges in 14–16 hours, uses CHG 3502 or CHG 3512 Charger
Operating Frequencies	8 channels: 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, or 75.9 MHz
FM Deviation	+/- 75 kHz
De-Emphasis	75 uS
LED Indicator	Power: Red. Low Battery: Flashes
Sensitivity	2 uV at 12 dB SINAD with squelch defeated
Input Overload	20 mV
Frequency Response	40 Hz to 15 kHz +/- 3 dB
Signal-to-Noise Ratio	60 dB at 100 uV
Receive Antenna	Integral with earphone/headphone cord
Audio Output	35 mW, max 16 ohm load
Output Connector	3.5 mm mono phone jack
Squelch	Located inside battery door. Factory set for 25 dB S/N. Squelch may be set with JFD-7104-5 from Sprague Goodman or any flat tipped tuning tool with tip size .095 x .016
Approvals	FCC, Industry Canada, RoHS, WEEE
Dimensions (H x W x D)	4.5" (115 mm) x 2.85" (72 mm) x 1.2" (30 mm)
Weight	4.6 oz (130 g)

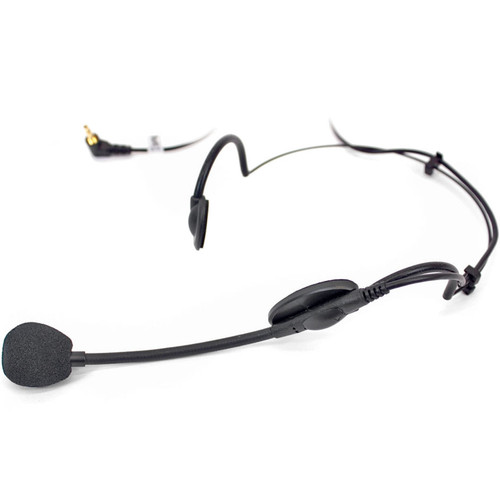

Mic 100
Color	Black
Plug	0.14" (3.5 mm) mono
Cord	39"
Phantom Powered	No
Pick-Up Pattern	Uni-direct
Replacement Windscreen	WND 009
Weight	0.09 lbs (0.04 kg)
