The Yamaha AC3M ARE, concert body cutaway guitar, features all-solid mahogany back and sides with sitka spruce top with Yamaha's original A.R.E. wood-torrefaction technology. Natural, dynamic plugged-in tone from the SRT2 pickup system perfectly suit your performance on the stage.

Description

A Series The Next Level

Designed to be the ideal performance acoustic guitar, the Yamaha A Series is crafted from the ground up to be perfectly suited to life on the road. With natural, dynamic plugged-in tone and stage-ready simplicity from the new SRT2 pickup system; played-in comfort out of the box thanks to hand-rolled fingerboard edges on a straight taper neck; a custom designed scalloped bracing pattern for an all-new powerful, expressive acoustic tone and Yamaha's legendary road-ready construction to make sure it's ready when you are, night after night, the A Series is the perfect guitar to take your playing to the next level.

The AC3M ARE, concert body cutaway guitar, features all-solid mahogany back and sides with sitka spruce top with Yamaha's original A.R.E. wood-torrefaction technology. Natural, dynamic plugged-in tone from the SRT2 pickup system perfectly suit your performance on the stage.

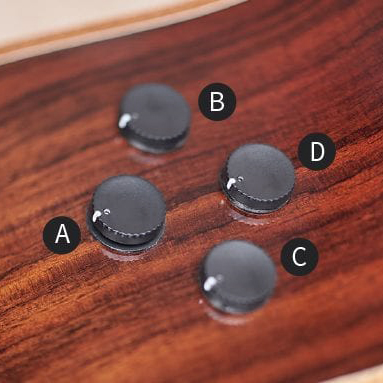

SRT2 Electronics

AC3M ARE SRT2 Electronics

SRT2 is a new pickup system developed independently by Yamaha, and optimized for stage performance. From a piezo sound that cut through when in a mix to a warm, pure acoustic sound that is like recorded by using the vintage microphone in the recording studio, SRT2 allows you to reproduce a sound that you can really use on stage. With SRT2 you can mix these two sounds to attain the exact balance you want to achieve a distinctive tone. What's more, the ability to select from two different mic types lets you choose the optimal sound for your playing style and for the song you are performing. (SRT2 is applied to the A5 and A3 only.)

A: Volume Control
B: Treble Control
C: Bass Control/AFR (Auto Feedback Reduction) [PUSH]
D: Blend Control/Mic Type Switch [PUSH]

SRT Pickup

Yamaha's proprietary SRT pickup design uses individual elements for each string to give an ultra-clear, ultra-wide bandwidth signal with far better dynamic response and tonal accuracy than a regular, ribbon-type piezo pickup.

Powerful Acoustic Sound

A new sound has been developed for the A-series that is louder and stronger in the low-mid ranges, thanks to cutting-edge acoustic analysA new sound has been developed for the A-series that is louder and stronger in the low-mid ranges, thanks to cutting-edge acoustic analysis technology developed by the Yamaha R&D Division. Their analysis led to the development of the new scalloped bracing for the top board and shorter bracing than normal for the back board.

Also, treating the tops with Yamaha's exclusive A.R.E. (Acoustic Resonance Enhancement) process gives the instrument a rich, vintage quality tone, making it sound as though you'd been playing it for years from the very first moment you pick an A-series guitar up. (A.R.E. processing is applied to the A5 and A3 only.)

AC3M ARE Acoustic Sound

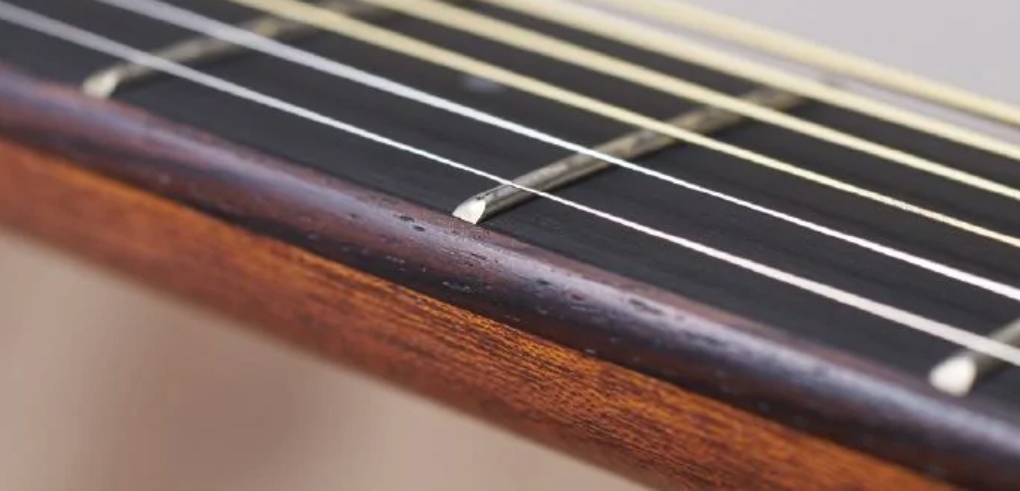

High Comfort Neck ProfileAC#M Neck

Extensive research with players, luthiers and guitar techs has given A-Series the feel and playability that today's acoustic-electric players want, whether switching from electric to acoustic on-stage, recording a session with intricate open tunings, or practicing at home. These superb guitars feature a straighter neck taper for easier high-fret playing, and hand-rolled fingerboard edges to achieve a played-in feel.

AC3M look

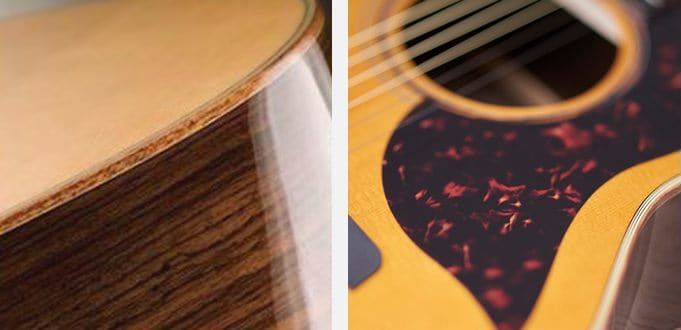

Simple and Distinctive Look

The simple, organic design features wood binding and other techniques that capture the warmth of wood. The distinctive shape of the pick guard, which stands out when performing, is a revival of the N1000 guitar that Yamaha released in 1975.


A series elixir strings

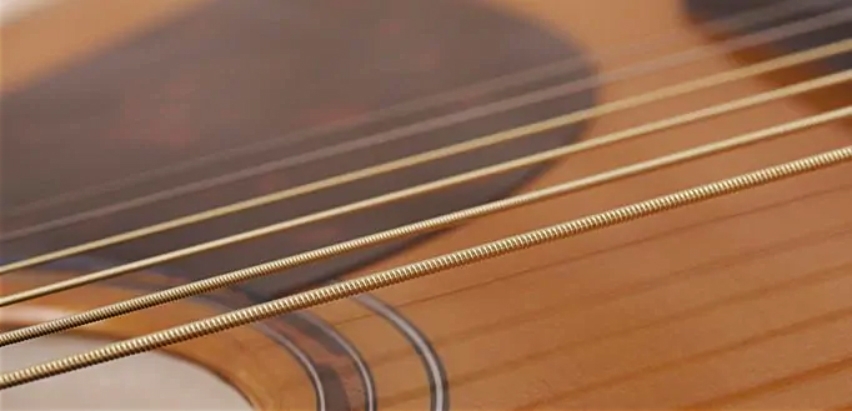

Elixir Strings

A-series guitars are equipped with Elixir NANOWEB 80/20 Bronze Light strings to deliver a lively tone together with extended tone life that players have come to expect from Elixir Strings.

Features

  • Concert body cutaway
  • Solid Sitka Spruce top with A.R.E.
  • Solid mahogany back and sides
  • New scalloped bracing for louder, richer acoustic sound
  • Natural, dynamic plugged-in sound by SRT2 system
  • High comfort neck profile
  • Simple and distinctive looks
  • Elixir strings
  • Hard bag included

Specifications

Body Shape Concert Body Cutaway
Scale Length 25 9/16" (650 mm)
Body Length 19 9/16" (497 mm)
Total Length 40 7/8" (1038 mm)
Body Width 14 15/16" (380 mm)
Body Depth 3 15/16" - 4 3/4" (100 - 120 mm)
Nut Width 1 11/16" (43 mm)
String Spacing 11 mm
Top Material Solid Sitka Spruce A.R.E. w/Scalloped Bracing
Back Material Solid Mahogany
Side Material Solid Mahogany
Neck Material African Mahogany (3-ply)
Fingerboard Material Ebony
Fingerboard Radius R400 mm (15 3/4")
Bridge Material Ebony
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS with White Dot
Tuners Die-Cast Chrome (TM29T)
Body Binding Mahogany + Cream
Soundhole Inlay Rosewood + Mahogany + Black + White
Pickguard Tortoise Pattern
Body Finish Gloss
Neck Finish Matte
Electronics SYSTEM71 (SRT2 System) + SRT Piezo Pickup
Controls Vol/Mic Type Select (2 types)/Treble/Bass/SRT-Piezo Blend/AFR
Connections LINE OUT
Strings Elixir NANOWEB 80/20 Bronze Light
Accessories Soundhole Cover, Hex Wrench
Case Hard Bag
