The Yamaha AG06MK2 is a clean white 6-channel live-streaming mixer with integrated USB audio interface, high-quality D-PRE preamps, built-in DSP effects, and flexible connectivity for Mac, Windows, iOS, and Android.

Description

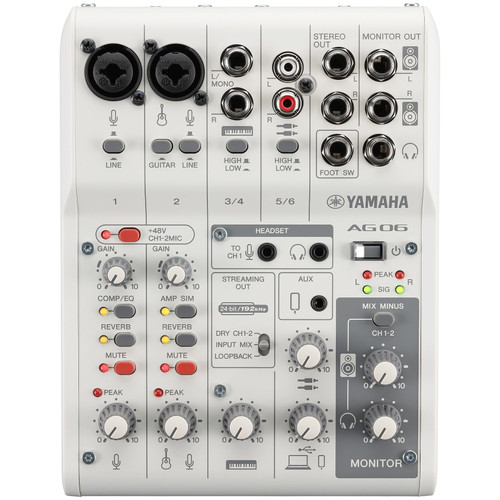

Yamaha AG06MK2 White 6-Channel Live-Streaming Mixer

The AG06MK2, finished in clean white, is a compact 6-channel live-streaming mixer and USB audio interface built for content creators, podcasters, musicians, and streamers. Its white chassis houses two mono channels with 48V phantom power for condenser microphones, a Hi-Z input for guitars, and versatile stereo line inputs for additional audio sources. With D-PRE class-A preamps and built-in DSP effects like compression, EQ, reverb, and amp simulation, the AG06MK2 delivers professional audio quality right out of the box.

Designed for live streaming and recording, the AG06MK2 features a loopback function for simultaneous input, mixing, and output, making it easy to blend voice, music, and other digital audio. High-resolution 24-bit/192kHz USB recording and playback ensure pristine sound, while connectivity options include USB-C for Mac/Windows, a 4-pole mini TRRS jack for smartphones, and iOS/Android support via adapters.

Despite its compact size, the AG06MK2 provides extensive control with mute buttons, streaming output selection, stereo analog outputs, and headphone monitoring. The included AG Controller software allows precise DSP adjustments, giving creators full command over live streaming or recording setups, all housed in a stylish, durable white enclosure.

Features

  • 6-channel live-streaming mixer and USB audio interface in white
  • Two mono channels with +48V phantom power for condenser mics
  • Hi-Z input for guitars on channel 2
  • Stereo line inputs on channels 3/4 (6.3 mm) and 5/6 (RCA)
  • 4-pole TRRS mini-jack for smartphone connectivity
  • D-PRE class-A preamps for professional audio
  • 1-Touch effects: compression/EQ, reverb, amp simulator
  • Loopback function for simultaneous mixing and streaming
  • 24-bit/192 kHz USB audio recording and playback
  • USB-C connectivity for Mac/Windows; iOS/Android compatible

Specifications

Frequency Response (MIC to MONITOR OUT) +0.5 dB/-1.5 dB (20 Hz - 48 kHz @ 192 kHz)
Total Harmonic Distortion (THD+N) 0.05% @ 0 dBu, 0.01% @ +4 dBu
Equivalent Input Noise -128 dBu (Mono Input, Rs: 150Ω, GAIN max)
Residual Output Noise -103 dBu (MONITOR OUT, MONITOR knob min)
Crosstalk -80 dB (1 kHz)
Input Channels Mono: 2 (CH1/CH2 + HEADSET MIC), Stereo: 2, USB IN: 1, AUX IN: 1
Output Channels Stereo OUT: 1, MONITOR OUT: 1, PHONES: 2 (includes headset), AUX OUT: 1
Input Channel PAD 26 dB (CH1, CH2)
DSP/Effects CH1: COMP/EQ, REVERB, MUTE; CH2: COMP/EQ, AMP SIM, REVERB, MUTE
Peak LED Lights 3 dB below clipping
USB Audio 2 IN/2 OUT, 24-bit, 192 kHz, USB Audio Class 2.0
Phantom Power +48V (CH1-2)
Color White
Power DC 5V, 900 mA; Max 4.5W
Dimensions (H x W x D) 2.5" (63 mm) x 6" (152 mm) x 7.9" (201 mm)
Weight 2 lbs (0.9 kg)
