The Yamaha C115V 15" 2-Way Speaker was engineered to perform flawlessly, delivering a powerful musical experience for both audience and musicians.

Description

The Club V loudspeakers with the C prefix are coated with a heavy-duty elastomeric spray coating. Designed as an installation alternative to the carpeted S versions. The finish is very tough and readily paintable to match surroundings. The steel grilles are foam-lined with acoustically transparent material to provide a more subdued appearance. Once again, with professional features, excellent sonic performance and great value, Club Series loudspeakers deliver premium quality night after night. Cabinets are constructed of high quality particleboard, chosen for its high strength and elasticity, consistent void free makeup and light weight. Another great benefit of this material is its environmental friendliness.

Made from southern yellow pine, this material is both abundant and quickly renewable. Accurate CNC routing machines are used to cut every part, assuring consistency with tolerances of one ten-thousandth of an inch. Skilled technicians assemble each cabinet by hand, rejecting any defects. Whether covered in durable carpet or the elastomeric spray coating, heavy steel handles and sturdy pole sockets make moving and positioning easy. Crossover networks that divide the signal going to the woofer and compression driver are constructed with oversized coils, high voltage capacitors, and power resistors designed to provide the best possible sound quality and minimize loss. Overload protection is also included to protect the components.

Features

  • 15" cast frame woofer
  • 1000 watt peak power handling
  • 90 x 45 degree CD horn
  • Excellent for live and recorded music
  • Heavy-duty elastomeric spray coating

Specifications

Frequency Response 55Hz - 16kHz
Nominal Coverage H: 90° x V: 40°
Components LF 15" cone
Components HF Horn, 2" voice coil driver
Power Handling NOISE: 250W; PGM: 500W; PEAK: 1000W
Nominal Impedance 8ohms
Sensitivity 99dB
Maximum SPL 129dB

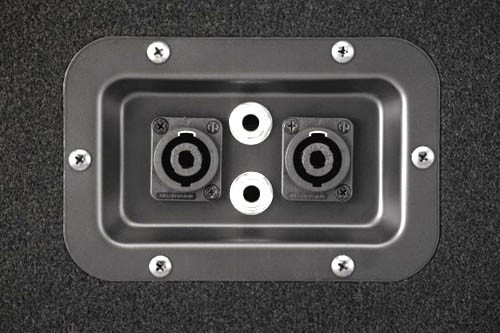

I/O Connetcors 2x Phone, 2x speakON
Dimensions (H x W x D) 28.13" (715 mm) x 19.13" (485 mm) x 14.63" (373 mm)
Weight 66.8 lbs (30.3 kg)
