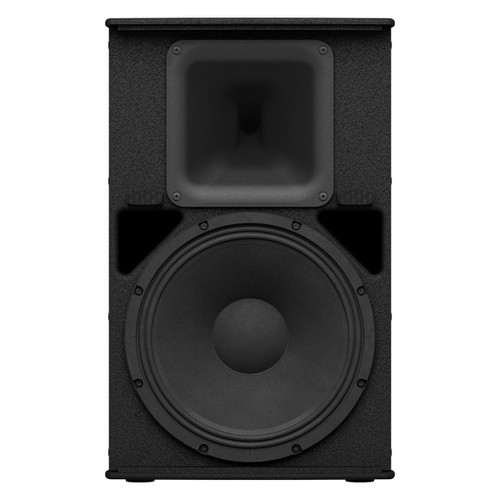

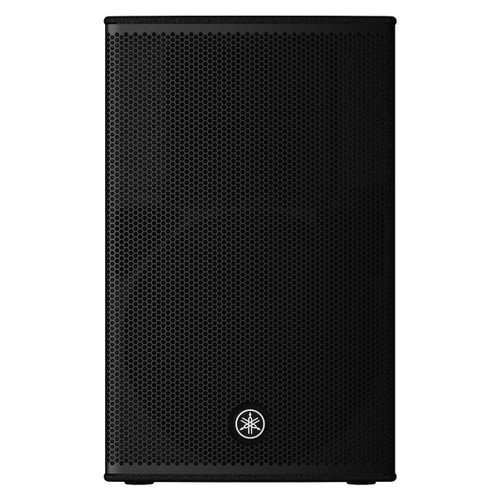

The DHR12 is a 2-way bi-amp powered loudspeaker equipped with a 12-inch woofer and a 1.4-inch HF driver, perfect for use as a main or utility speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha's high-end DZR Series, the DHR12 offers best-in-class sound quality and durability.
It features a plywood cabinet that delivers clear sound with minimal vibration and includes a polyurea coating for a robust, scratch-resistant surface. Despite housing a 12-inch low-frequency driver, the DHR12 maintains a compact size while still providing excellent low-frequency response. It can be installed in either a horizontal or vertical configuration, with a rotatable HF horn that adds flexibility for a wide range of environments. The optional UB-DXRDHR12 U-bracket supports both vertical and horizontal mounting. Dual-angle pole sockets allow for either a 0° or -7° down tilt, and rigging points are included for use with eye bolts. Yamaha’s proprietary FIR-X™ tuning provides FIR filtering and corrective EQ to minimize phase distortion.
| Configuration | Active 2-Way |
|---|---|
| Total Power Capacity | 465W and 1000W |
| LF Driver | 12" Cone |
| HF Driver | 1.4" PET |
| Frequency Range | 48Hz–20kHz |
| Maximum SPL | 130 dB SPL |
| Coverage Angle | H90° x V60° (Rotatable) |
| Audio I/O | 1x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 1x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input 1x Stereo RCA TS Female Unbalanced Line Input 1x XLR 3-Pin Male Balanced Line Thru/Output |
| Mounting | 2 x M10 Fly Point (Top) 1 x M10 Fly Point (Rear) 2 x M8 Fly Point (Bottom) 2 x M8 Fly Point (Side) 1 x 1.4" / 35 mm Pole Socket (Dual Angle, Bottom) |
| Dimensions (H x W x D) | 14.1" (359 mm) x 22.8" (578 mm) x 13.4" (340 mm) |
| Weight | 42.3 lbs (19.2 kg) |
