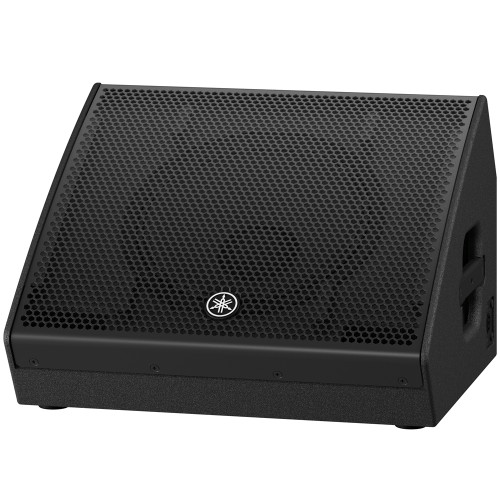

Yamaha DHR12M 12" 2-Way 1000W Powered Floor Monitor
The speaker features a 1000W Class-D amplifier that delivers 800W to the 12" woofer and 200W to the 1.75" compression driver, which are arranged in a coaxial configuration to deliver precise, smooth phase, and frequency response characteristics ideal for use in monitoring application. The monitor offers a frequency range of 55 Hz to 20 kHz. With a maximum SPL output of 129 dB, the floor monitor can easily cut through perilous stage volumes. When used as a main PA, a pair of DHR12M can provide plenty of volume to cover an audience of 300 patrons.
Two inputs are on the back. Inputs 1 and 2 feature combo XLR-1/4" connectors. Input 1 offers a Microphone/Line input switch, while input 2 provides a line-level input and includes a stereo RCA for unbalanced connections. Both inputs feature independent volume controls, allowing you to connect a microphone and line-level source or instrument DI for singer/song writer applications. An XLR output features a Thru/Mix switch that allows the signal from input 1 to pass through or combine the signals from input 1 and 2 together for greater flexibility in deployment.
Other notable features include a high-pass filter (120 or 100 Hz) for use with a subwoofer and a contour switch that utilizes FIR-X tuning technology for system tuning. The FOH/Main setting boosts the high and low frequencies suitable for a main speaker, while the Monitor setting reduces the low-frequency range for using the speaker as a floor monitor.
The plywood enclosure is finished with a durable Polyurea coating and features a rugged metal grille. A standard 1.4" pole socket is available on one side of the speaker, allowing it to be mounted on a speaker pole for side-fill monitoring or main FOH applications.
- Features
Features
- 12" powered loudspeaker with 1000W of class-D power
- The DHR12M delivers extremely high power from its compact, low profile enclosure
- Equipped with a 1.75" HF compression driver coaxially mounted to a high-output 12" LF unit
- Maximum 129dB SPL of power and wide frequency response range of 52Hz - 20kHz
- Ultra-Precise 48bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- 35mm socket to allow placement on a stand or pole
- Specification
Configuration Active 2-Way Total Power Capacity 465W RMS
1000W PeakLF Driver (1) 12" (304.8 mm) Woofer HF Driver (1) 1.75" (44.45 mm) Horn-Loaded Compression Driver with 1" (25 mm) Throat Frequency Range 55 Hz to 20 kHz -10 dB Maximum SPL 129 dB Coverage Angle 90° H x 90° V Audio I/O (1) Combo speakON-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
(1) Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
(1) Stereo RCA TS Female Unbalanced Line Input
(1) XLR 3-Pin Male Balanced Line Thru/OutputMounting (1) 1.4" (35 mm) Pole Socket (Bottom, Side) Dimensions (H x W x D) 13.5" (454 mm) x 19.7" (500 mm) x 17.9" (454 mm) Weight 36.4 lbs (16.5 kg) - Documents
Documents
- In the Box
In the Box
- DHR12M Loudspeaker
- AC Power Cable
- Owner's Manual
