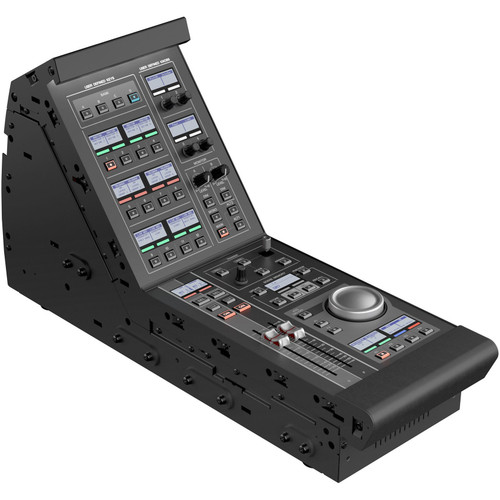

Yamaha DM7 Control Expansion Controller for DM7 Series Digital Mixing Consoles

Yamaha DM7 Control Expansion Controller

The DM7 Control is an expansion controller designed to extend the capabilities of DM7 Series digital mixing consoles. Equipped with a variety of physical controls, it allows convenient access to User Defined Keys, Scene Memory keys, Monitor Control, and Panner joystick functions, making it ideal for broadcast, theater, and live production applications. The Broadcast/Theatre Package is included, though side pads are not.

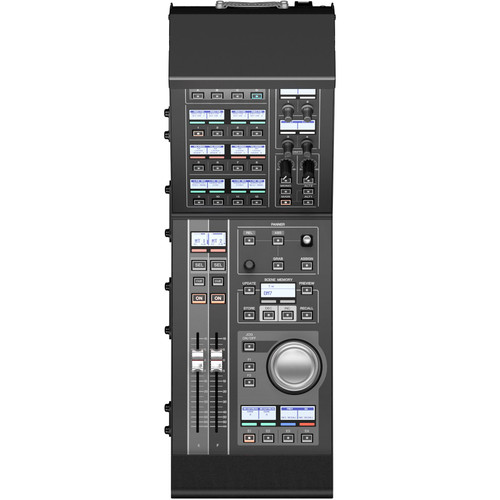

This controller features 2 high-resolution faders, 16 programmable User Defined Keys, 4 User Defined Knobs, a panner joystick, and a jog wheel, providing intuitive and precise control over audio routing, scene management, and monitoring functions. Scene Memory keys offer Update, Preview, Store, Recall, Increment, and Decrement operations, while the Monitor Control section manages Monitor A/B outputs efficiently.

Built with reliability in mind, the DM7 Control comes with dual power supplies (AC input and optional EXT DC input) for redundancy and low 20W power consumption. It seamlessly integrates with DM7 Series consoles, offering expanded control and workflow efficiency for professional audio engineers and production teams.

• 2 high-resolution faders for precise audio control
• 16 programmable User Defined Keys
• 4 User-Defined Knobs for custom adjustments
• Scene Memory Keys: Update, Preview, Store, Recall, Inc, Dec
• Monitor Control for Monitor A/B outputs
• 1 Panner joystick and 1 Jog Wheel for fine control
• Includes Broadcast/Theatre Package (side pads not included)
• Dual power supplies for redundancy (AC input + EXT DC input)
• Optional PA-700 AC adapter for backup power
• Low 20W power consumption
• Compatible with DM7 Series digital mixing consoles
• Ergonomic layout for easy operation
• Ideal for broadcast, theater, and live sound environments
