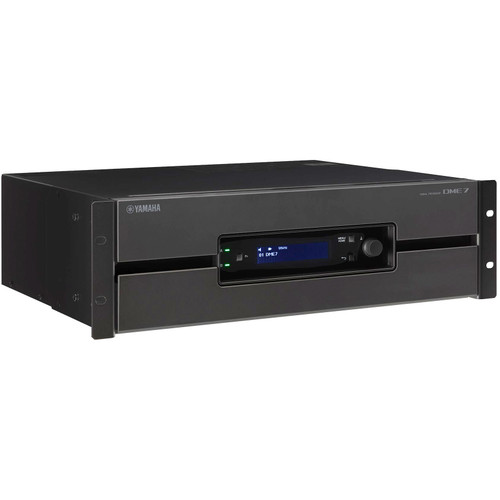

Yamaha DME7 96 kHz Dante-Enabled DSP
The DME7 is a state-of-the-art, open-architecture digital signal processor that delivers high-performance audio and advanced connectivity for both commercial installations and live performance applications. With 96 kHz sound quality and support for up to 256 input/output channels, it sets a new standard in professional audio processing.
Equipped with 64 channels of Dante I/O and a 64x64 matrix mixer as standard, the DME7's capacity can be expanded via optional DEK-DME7-DX64 licenses up to 256x256 channels. Dual redundant power supplies ensure mission-critical reliability, while built-in processing solutions like Dugan Automixer, FIR speaker processing, Acoustic Echo Canceller, and Delay Matrix provide flexible, high-quality sound control.
Control and integration are effortless with the ProVisionaire Design and Control software, network remote control via TCP/IP and OSC, and compatibility with DCP wall controllers. The DME7 also offers an 8-channel USB audio interface, SD card playback, MIDI control, GPI ports, and external event functionality for third-party device integration. Its low mechanical noise output meets NC20 standards, making it a quiet yet powerful solution for any professional environment.
- Features
Features
- 96 kHz open-architecture digital signal processor
- Dante I/O with 64 channels standard, expandable to 256x256
- Dual redundant power supplies for reliability
- 64x64 matrix mixer standard, expandable via DEK-DME7-DX64
- 8-channel USB 2.0 Type-C audio interface
- SD card playback for MP3/WAV audio files
- Built-in processing: Dugan Automixer, FIR speaker processing, Acoustic Echo Canceller, Delay Matrix

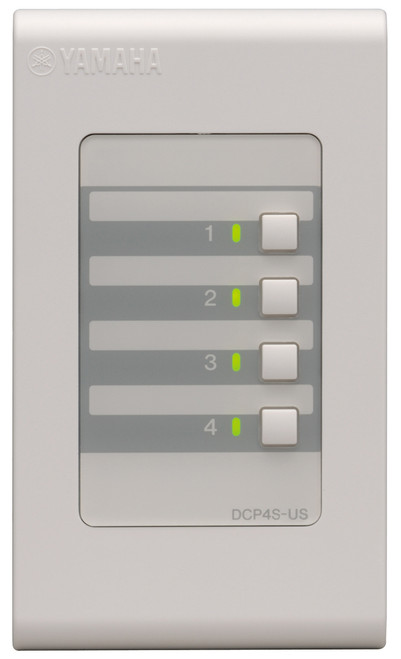

- Remote control via DCP series wall controllers
- Network remote control via TCP/IP and OSC
- External Event control for third-party devices via TCP/UDP
- 16 In/8 Out GPI ports for complex logic integration
- MIDI control for legacy system compatibility
- ProVisionaire Control, Control Kiosk, and Touch Kiosk software
- Extremely low mechanical noise output meeting NC20 standards
- Compact, professional design for performance and commercial use
- Specification
Max Channels 256 Input/Output (with expansion) Dante I/O 64 channels standard, expandable to 256 Matrix Mixer 64x64 standard, expandable to 256x256 Sampling Rate 96 kHz USB Audio Interface 8-channel USB 2.0 Type C Built-in DSP Functions Dugan Automixer, Acoustic Echo Canceller, Delay Matrix, FIR Speaker Processing Control Software ProVisionaire Design, Control, Touch Kiosk, Control Kiosk Remote Control DCP series wall controllers, TCP/IP, OSC GPI Ports 16 In/8 Out External Event Control TCP/UDP for 3rd party devices MIDI Control Yes, for legacy system interfacing Power Supply Dual redundant power supplies Noise Level Extremely low mechanical noise, meets NC20 Dimensions (H x W x D) 5.20" (132 mm) x 18.90" (480 mm) x 14.29" (363 mm) Weight 20.94 lbs (9.5 kg) - Documents
Documents
- In The Box
In The Box
- (1) DME7 Digital Signal Processor
- (2) Euroblock Plugs (16-pin, 3.50 mm pitch)
- (2) Power Cords
- (1) Cable Hook
- Setup Guide
