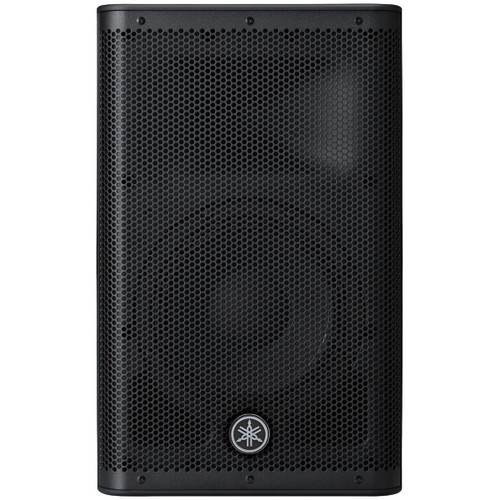

Yamaha DXR10mkII 10" 2-way Powered Portable Loudspeaker
with Maximum SPL of 132dB for Live Sound Applications
Portable, yet capable of producing an astonishing 132 dB SPL, the Yamaha DXR10mkII's compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75" Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you've come to expect from the DXR Series... only MORE.
| System Type | 2-way, Bi-amped Powered Speaker, Bass-reflex Type |
|---|---|
| Frequency Range (-10dB) | 56Hz – 20kHz |
| Coverage Angle | H90° x V60° Constant Directivity Horn |
| Crossover Type | FIR-X tuning™ (Linear Phase FIR Filter) |
| Crossover Frequency | 2.3kHz |
| Measured Maximum SPL (peak) | 132dB SPL (Pink noise @ 1m) |
| LF Transducer | Diameter: 10" Cone Voice Coil: 2" Magnet: Ferrite |
| HF Transducer | Voice Coil: 1.75" Diaphragm: PET Type: 1" Throat Compression Driver Magnet: Neodymium |
| Amplifier Type | Class-D |
| Power Rating | Dynamic: 1100W (LF: 950W, HF: 150W) Continuous: 700W (LF: 600W, HF: 100W) |
| Cooling | Fan cooling, 4 speeds |
| AD/DA | 24bit 48kHz sampling |
| Signal Processing | 48bit (Accumulator: 76bit) |
| HPF/LPF | OFF, 100, 120Hz 24dB/oct HPF |
| DSP Preset | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Connectors | Input: INPUT1: XLR3-31 type x 1, INPUT2: Phone x 2 (Unbalanced), INPUT3: RCA PIN x 2 (Unbalanced) Output: THRU: XLR3-32 type x 1 (Parallel with INPUT1), LINK OUT: XLR3-32 type x 1 |
| Input Impedance | INPUT1: LINE: 12kΩ, MIC: 8kΩ INPUT2, 3: L, R: 40kΩ, MONO: 20kΩ |
| Input Sensitivity (LEVEL: Maximum) | INPUT1: LINE: +1dBu, MIC: -32dBu INPUT2, 3: -13dBu |
| Input Sensitivity (LEVEL: Center) | INPUT1: LINE: +11dBu, MIC: -22dBu INPUT2, 3: -3dBu |
| Material, Finish, Color | ABS, Matte black |
| Floor Monitor Angle | 50° |
| Handles | Aluminium die-cast (Top x 1) |
| Pole Socket | Top x 2, Rear x 1 (Fits for M8 x 15mm eyebolts) |
| Rigging Points | ⌀ 35 mm x 2 (0° or -7°) |
| Optional Accessories | U-bracket: UB-DXR10 Cover: SPCVR-1001 |
| Dimensions (H x W x D) (with rubber feet) | 19.8" (502 mm) x 12" (305 mm) x 12.2" (310 mm) |
| Weight | 30.6 lbs (13.9 kg) |
