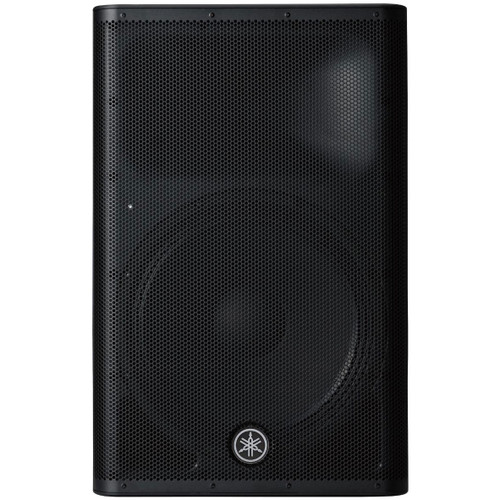

Yamaha DXR15mkII 15" 2-Way Powered Loudspeaker (Discontinued)
Write a Review
Yamaha DXR15mkII 15" 2-Way Powered Loudspeaker (Discontinued)
RELATED VIDEOS
Description
Yamaha DXR15mkII 15" 2-Way Powered Loudspeaker
with Max SPL of 134 dB for Fixed Applications or Mobile Live Performances
The Yamaha DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75" Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you've come to expect from the DXR Series... only MORE.
Features
- Yamaha ingenuity and Nexo expertise combine for a new lineup of DXRs
- Less weight, more power
- The power of "D"
- Ultra-precise 48bit DSP processing for high-definition sound
- Intelligent dynamic control for consistent clarity at any output level
- Extensive DSP protection functions for maximum output
- High-efficiency 1100W Class-D amplifiers
- Intelligent onboard 3-channel mixer
- Durable, compact ABS enclosures
- Symmetrical enclosure design for mirror-mode floor monitoring
- Dual-angle pole mount socket
- Rigging points for standard eye-bolts and optional U-brackets
Specifications
| System Type | 2-way, Bi-amped Powered Speaker, Bass-reflex Type |
|---|---|
| Frequency Range (-10dB) | 49Hz – 20kHz |
| Coverage Angle | H90° x V60° Constant Directivity Horn |
| Crossover Type | FIR-X tuning™ (Linear Phase FIR Filter) |
| Crossover Frequency | 2.1kHz |
| Measured Maximum SPL (peak) | 134dB SPL (Pink noise @ 1m) |
| LF Transducer | Diameter: 15" Cone Voice Coil: 2.5" Magnet: Ferrite |
| HF Transducer | Voice Coil: 1.75" Diaphragm: PET Type: 1" Throat Compression Driver Magnet: Neodymium |
| Amplifier Type | Class-D |
| Power Rating | Dynamic: 1100W (LF: 950W, HF: 150W) Continuous: 700W (LF: 600W, HF: 100W) |
| Cooling | Fan cooling, 4 speeds |
| AD/DA | 24bit 48kHz sampling |
| Signal Processing | 48bit (Accumulator: 76bit) |
| HPF/LPF | OFF, 100, 120Hz 24dB/oct HPF |
| DSP Preset | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Connectors | Input: INPUT1: XLR3-31 type x 1, INPUT2: Phone x 2 (Unbalanced), INPUT3: RCA PIN x 2 (Unbalanced) Output: THRU: XLR3-32 type x 1 (Parallel with INPUT1), LINK OUT: XLR3-32 type x 1 |
| Input Impedance | INPUT1: LINE: 12kΩ, MIC: 8kΩ INPUT2, 3: L, R: 40kΩ, MONO: 20kΩ |
| Input Sensitivity (LEVEL: Maximum) | INPUT1: LINE: +1dBu, MIC: -32dBu INPUT2, 3: -13dBu |
| Input Sensitivity (LEVEL: Center) | INPUT1: LINE: +11dBu, MIC: -22dBu INPUT2, 3: -3dBu |
| Material, Finish, Color | ABS, Matte black |
| Floor Monitor Angle | 50° Symmetrical |
| Handles | Aluminium die-cast (Side x 2) |
| Pole Socket | ⌀ 35 mm x 2 (0° or -7°) |
| Rigging Points | Top x 2, Rear x 1 (Fits for M10 x 18mm eyebolts) |
| Optional Accessories | U-bracket: UB-DXR15 Cover: SPCVR-1501 |
| Dimensions (H x W x D) (with rubber feet) | 27.6" (700 mm) x 17.5" (445 mm) x 15" (380 mm) |
| Weight | 48.1 lbs (21.8 kg) |
