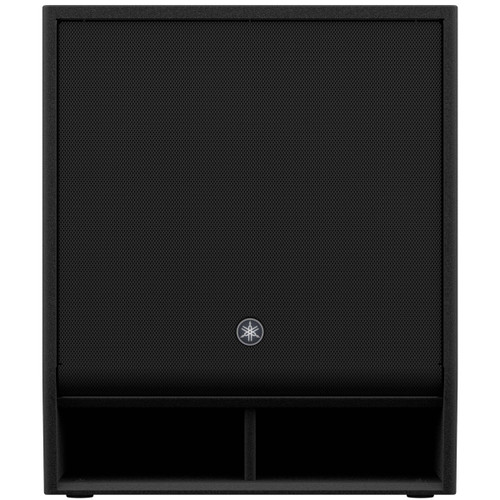

Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer
Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer with Dante - Black
Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer with Dante - Black
Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer with Dante - Black
Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer with Dante - Black
Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer with Dante - Black
By Yamaha

Yamaha DXS18XLF-D 18" 1600W Powered Bass-Reflex Subwoofer with Dante - Black

Write a Review
Part #:
DXS18XLF-D
Model #:
DXS18XLF-D
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

Perfectly suited for use with DZR full-range speakers, the Yamaha DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in-class maximum SPL of 136dB SPL with superb clarity and power.

Description

Yamaha DXS18XLF-D 18-Inch Dante-Equipped 1600W Powered Subwoofer

Perfectly suited for use with DZR full-range speakers, the Yamaha DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in-class maximum SPL of 136dB SPL with superb clarity and power.

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

Features
  • Powered 18" subwoofer with 4" Voice Coil
  • Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP for true high-resolution sound with super low latency
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

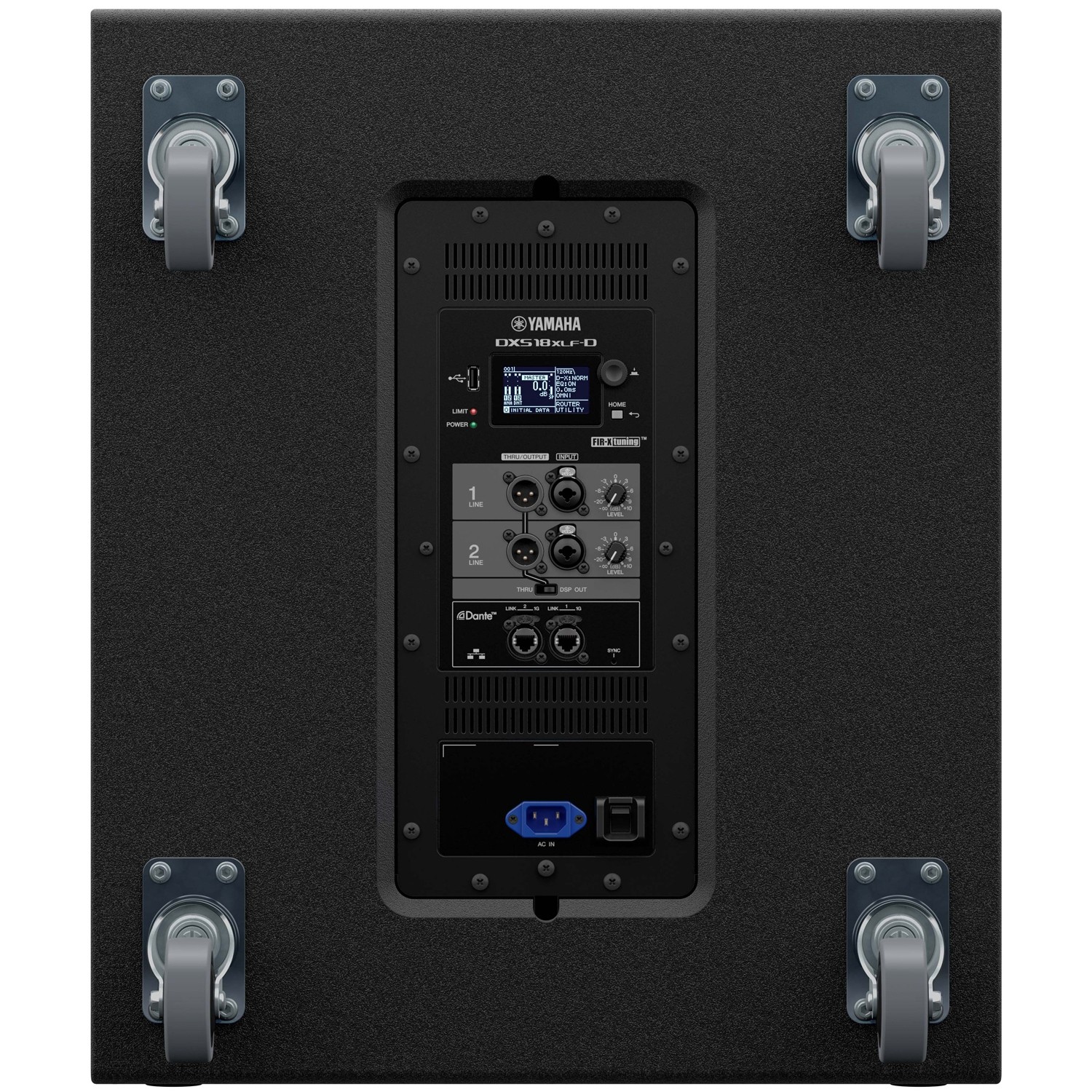

  • Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Specifications
Frequency Range (-10 dB) 30Hz - 150Hz
Power Rating 1600W
Maximum SPL 136dB SPL
LF Driver 18" Cone, 4" Voice Coil, Ferrite magnet
Optional Accessories Cover: SPCVR-DXS18X, Casters: SPW-1
Dimensions (H x W x D) 25.9" (657 mm) x 21.7" (550 mm) x 28.3" (720 mm)
Weight 107.8 lbs (48.9 kg)
