Yamaha EMX5 Portable 12-Channel Powered Mixer 2 x 630W
Usually arrives in 5-9 business days.

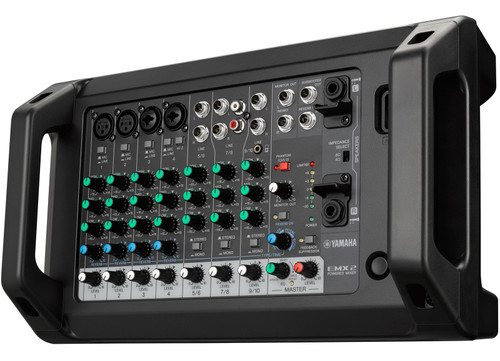

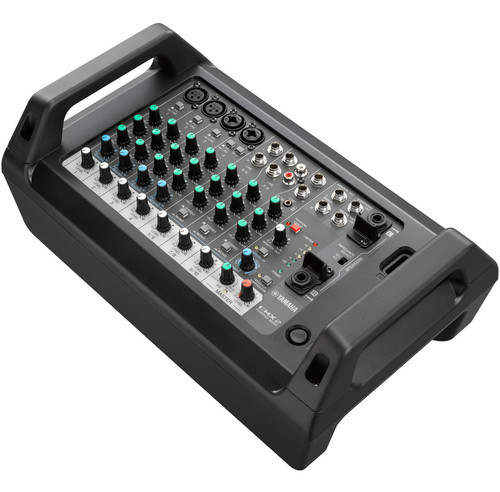

The Yamaha EMX2's lightweight and portable design make it very easy to carry and particularly useful for sudden, emergency meetings, planned presentations, or seminars.
Because the EMX2 is both a mixer and a power amplifier, you only need speakers and mics to have a fully functioning sound system. This makes it easy for newcomers, and even first-time users with no previous audio experience to easily configure their own sound reinforcement system. The EMX2's all-in-one design concept ensures that by just plugging in a single power cable and making a few simple, intuitive connections, anyone can be their own sound engineer.
The EMX2's lightweight and portable design make it very easy to carry and particularly useful for sudden, emergency meetings, planned presentations, or seminars. The onboard feedback suppressor can automatically cancel out the uncomfortable howling that convention rooms or small halls are often prone too, giving first-time users the added confidence of worry-free setup. The 1-Knob Master EQ™ features a SPEECH setting for EQ optimized for speaking engagements with a simple turn of the knob. Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
| Maximum Output Power (1 kHz) | THD+N |
|---|---|
| Input Channels | 10 channels (Mono (MIC/LINE): 4, Stereo (LINE): 3) CH4: Hi-Z input supported |
| Output Channels | Speakers (L, R): 1, Monitor Out (L, R): 1, Subwoofer Out: 1 |
| Bus | Stereo: 1, Effect: 1 |
| Input Channel Equalization | HIGH: 8 kHz ±15 dB MID: 2.5 kHz ±15 dB LOW: 100 Hz ±15 dB |
| Level Meter | 6 points (-20, -6, 0, +3, +6, LIMITER) |
| Phantom Power Voltage | +30 V (CH1, 2) |
| Built-in Effect/SPX Algorithm | 4 programs |
| Reverb Foot Switch | Effect Mute on/off |
| DSP Processing | Feedback Suppressor, Master EQ |
| Protection | Load Protection: DC-fault Amplifier Protection: Over heat protection, Over current protection Power Supply Protection: Over heat protection, Over current protection |
| Power Requirements | AC 100-240 V, 50 Hz/60 Hz |
| Power Consumption | 35W (Idle) / 90W (1/8 Power) |
| Optional Accessory | Foot Switch: FC5, Rack-Mount Kit: RK-EMX2, Mic Stand Adaptor: BMS-10A |
| Operating Temperature | 0 to +40˚C |
| Dimensions (H x W x D) | 5.8" (147 mm) x 14.8" (375 mm) x 8.7" (220 mm) |
| Net Weight | 9.3 lbs (4.2 kg) |
