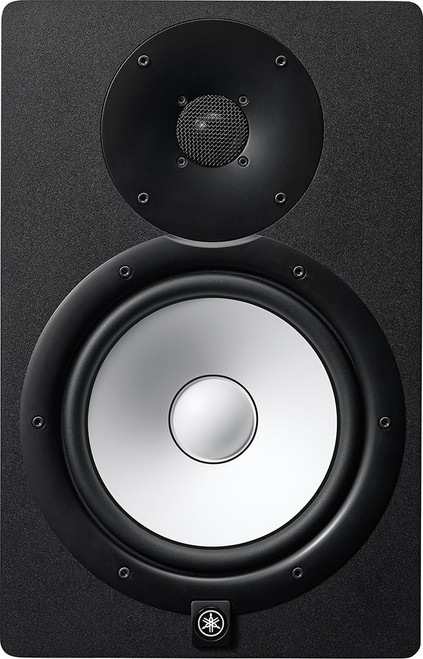

The Yamaha HS8 2-Way 8" Powered Studio Monitor is designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process.

Description

The HS8 features newly developed transducers that achieve astonishingly smooth response over a wide range of bandwidth. These transducers utilize an advanced magnetic field design that regulates the flow of magnetic response to provide seamless, natural sonic transitions. Each component's materials and design were carefully re-examined, then optimized, to drastically improve the accuracy of signal reproduction throughout the audio spectrum.

HS8 speaker employ an amplifier unit perfectly matched to the transducers utilized. Featuring a bi-amp design with a separate dedicated amp for both the woofer and the tweeter, this amplifier unit ensures consistently delivers high-resolution sound with exceptionally flat response across the sound spectrum.

HS8 cabinet is designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a very dense and resilient MDF with a damped acoustic response that is perfectly suited for reference monitors. Drawing from Yamaha's over 100 years of piano design experience, HS8 engineer also employed a traditional three-way mitered-joint technique. Common to architectural design this construction firmly anchors the corners of the enclosure to dramatically improve durability and eliminate unwanted resonance that can influence overall sound. Available in Black or White.

Features

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
  • High Performance Amp Unit
  • Low Resonance Enclosure Design
  • Cutting Edge Noise Reduction Technology
  • High frequency response
  • 120W power amplification
  • Room Control and High Trim response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals

Specifications

Frequency Range (-10dB) 38Hz - 30kHz
Components LF: 8" cone
HF:1" dome
Crossover 2kHz
Output Power 120W (LF: 75W, HF: 45W)
I/O Connectors XLR3-31 type (balanced), PHONE (balanced)
Power Consumption 60W
Shape Bass-reflex type
Cabinet Material MDF
Dimensions (H x W x D) 15.4" (390 mm) x 9.8" (250 mm) x 13.1" (334 mm)
Net Weight 22.5 lbs (10.2 kg)
