Yamaha IF2112M/99 12" Loudspeaker Medium Power 90° x 90° Coverage (Discontinued)

Part #:
IF2112M/99 YI
Model #:
IF2112M/99
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

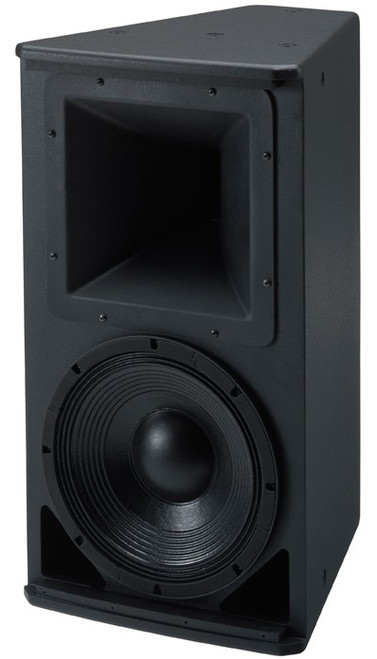

The Yamaha IF2112M/99 is a multi-purpose high-power 2-way trapezoidal speaker that delivers extraordinarily well-balanced sound.

Description

The IF2112M is the medium power version of the IF2112 respectively. These are multi-purpose high-power 2-way trapezoidal speaker systems that are suitable for smaller venues or auxiliary speakers. With three different horn dispersion pattern options for the installation series it allows optimum flexibility in cluster assemblies and effectively eliminating potential sound interference. Dispersion can be controlled by rotating the horn in 90-degree increments, allowing the speaker to easily be installed even in cramped locations with either vertical or horizontal mounting. Many eyebolt suspension points have been provided for different connections to the eyebolt, enabling flexible control over horn aiming. A single control allows you to easily switch the speaker between bi-amp mode, which provides greater sonic control and superior quality, than passive mode.

Features

  • 12" woofer
  • 90° x 90° Horn, can be mountted vertically or horizontally
  • Trapezoidal design eliminates interference in array use
  • 1.7" high-frequency compression driver with 1.4" exit

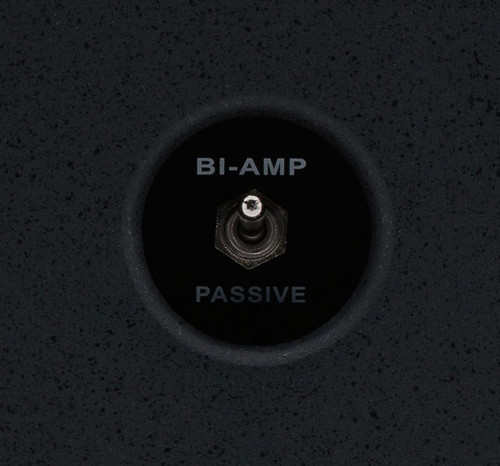

  • Switchable between single-amp and bi-amp operation
  • Fifteen 10 mm-screw (M10) and four 8 mm-screw (M8) suspension points provided for flexible rigging
  • Optional matching array frame and U-bracket available
  • Parallel-wired Neutrik NL4 and barrier strip connectors
  • Durable black or white finish (can be painted to match any interior)

Specifications

Nominal Coverage @-6dB 90° x 90°
Nominal Impedance Passive - 8Ω; Bi-amp LF/HF - 8Ω
Power Rating (Passive) NOISE: 350W; PGM: 700W; MAX: 1400W
Power Rating (Bi-amp) NOISE: LF - 400W, HF - 60W
PGM: LF - 800W, HF - 120W
MAX: LF - 1600W, HF - 240W
Recommended Amplifier Passive - T3n, PC6501N, XP7000; Bi-amp mode - LF: T3n, PC6501N, XP7000, HF:XP1000, PC2001N
Sensitivity (1W, 1m) Passive: 95dB SPL; Bi-amp mode - LF: 96dB SPL, HF: 108dB SPL
Continuous SPL (calculated) Passive: 120dB SPL; Bi-amp mode - LF: 121dB SPL, HF: 126dB SPL
Peak SPL (calculated) Passive: 126dB SPL; Bi-amp mode - LF: 127dB SPL, HF: 132dB SPL
Components (LF) 12" woofer, 3" voice coil
Components (HF) Rotatable constant directivity horn, 1/4" exit, 1.7 " voice coil compression driver
Frequency Range (-10dB) 55Hz - 20kHz
Connectors 1x NL4 and barrier strip, wired in parallel
Shape 30° Trapezoidal
Flying Hardware 15 x M10, 4 x M8
Optional Accessories UB2112(W), HAF2-2112(W), HAF3-2112(W), VAF2-2112(W)
Dimensions (H x W x D) 27.4" (695 mm) x 14.9" (378 mm) x 17.9" (454 mm)
Weight 61 lbs (28 kg)
