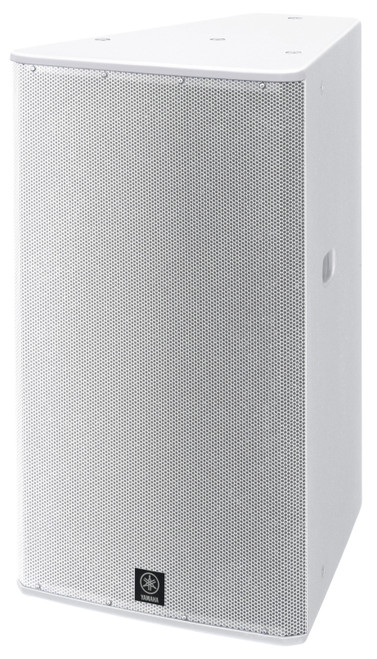

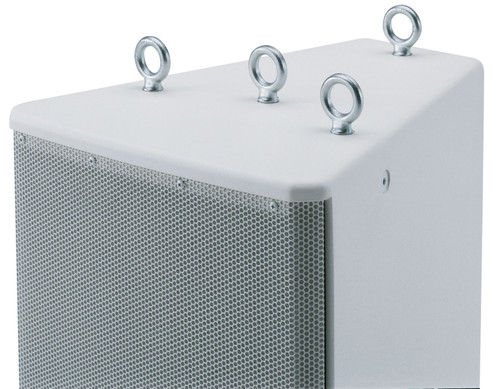

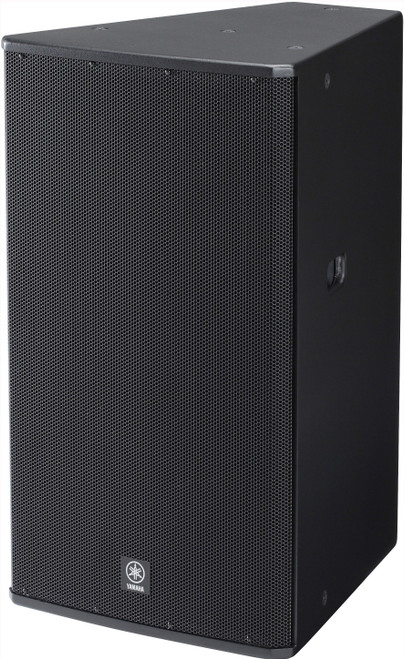

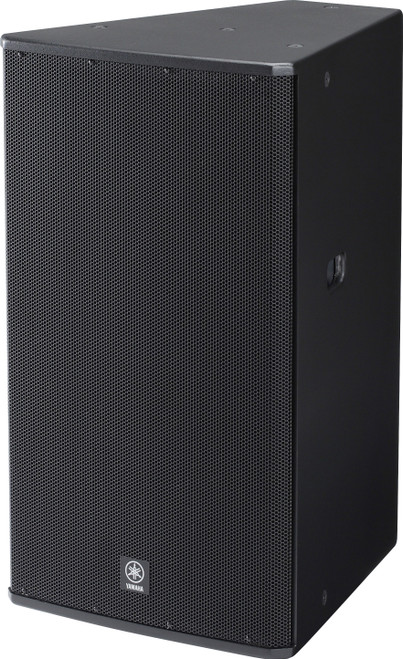

The Yamaha IF2115 is a multi-purpose high-power 2-way trapezoidal speaker systems. The IF2115M is the medium power versions of the IF2115 respectively. They are suitable for smaller venues or auxiliary speakers. The IF2115 series features a 15-inch woofer. The different dispersion options allow optimum flexibility in cluster assemblies and effectively eliminating potential sound interference. Dispersion can be controlled by rotating the horn in 90-degree increments, allowing the speaker to easily be installed even in cramped locations with either vertical or horizontal mounting. Many eyebolt suspension points have been provided for different connections to the eyebolt, enabling flexible control over horn aiming. A single control allows you to easily switch the speaker between bi-amp mode, which provides greater sonic control and superior quality, than passive mode.
Applications:
• Performing Art Facilities/Theaters
• Auditoriums
• Houses of Worship
• Live Clubs
• Sports Facilities
• Themed Entertainment Venues
• Delay/Fill Locations of Larger System
| Nominal coverage @-6dB (Horizontal x Vertical) | 90° x 50° (rotatable) |
|---|---|
| Nominal impedance | Passive - 8Ω Bi-amp LF/HF - LF: 8Ω, HF: 8Ω |
| Power rating (Passive) | NOISE - 600W; PGM - 1200W; MAX - 2400W |
| Power rating (Bi-amp) | NOISE - LF: 700W, HF: 110W PGM - LF: 1400W, HF: 220W MAX - LF: 2800W, HF: 440W |
| Sensitivity (1W, 1m) | Passive - 97dB SPL; Bi-amp mode - LF: 98dB SPL, HF: 108dB SPL |
| Peak SPL (calculated) | Passive - 131dB SPL; Bi-amp mode - LF: 132dB SPL, HF: 134dB SPL |
| Continuous SPL (calculated) | Passive - 125dB SPL; Bi-amp mode - LF: 126dB SPL, HF: 128dB SPL |
| Components (LF) | 15" woofer, 4" voice coil |
| Components (HF) | Rotatable constant directivity horn, 1/4" exit, 3" diaphram compression driver |
| Frequency range (-10dB) | 45 Hz-20k Hz |
| Connectors | 1x NL4 and barrier strip, wired in parallel |
| Shape | 30° trapezoidal |
| Flying hardware | 15x M10, 4x M8 |
| Optional accessories | UB2115(W), HAF2-2115(W), HAF3-2115(W), VAF2-2115(W) |
| Finish | Textured Black |
| Recommended amplifiers | Passive - T5n, PC9501N, XP7000 Bi-amp LF/HF - LF:T5n, PC9501N, HF:XP1000, PC2001N |
| Dimensions (H x W x D) | 30.3" (770 mm) x 17.6" (448 mm) x 21" (534 mm) |
| Weight | 86 lbs (39 kg) |
