- Description
Details

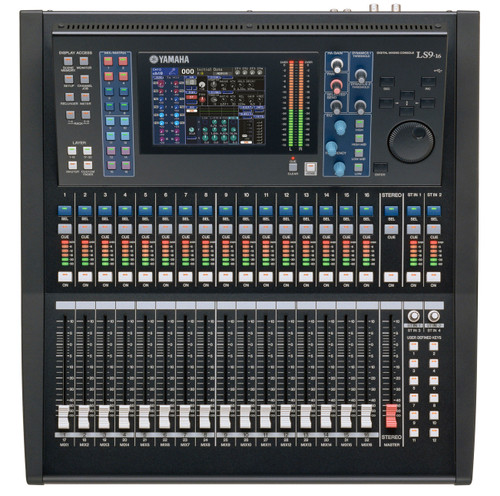

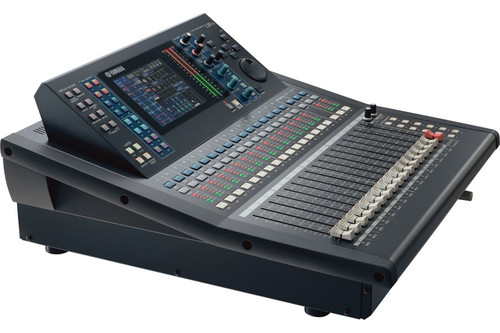

The Yamaha LS9-16 is a full-digital mixing console designed for installed systems or SR applications, and in spite of its compact size, provides functionality and a channel count comparable to large-format consoles. 24-bit linear AD/DA converters are used to deliver up to 108 dB of dynamic range and amazing sound quality.
As input channels, it provides 32 (LS9-16 model) or 64 (LS9-32 model) monaural INPUT channels, and four stereo ST IN channels. As output channels, it provides 16 MIX channels, eight MATRIX channels, a STEREO channel, and a MONO channel. L/C/R three-channel output using the STEREO/ MONO channels is also supported.
There are eight virtual racks, in which you can mount effects or graphic EQ and then patch them into the desired signal route. Graphic EQ can be mounted in racks 1–4, and effects or graphic EQ can be mounted in racks 5–8. You can simultaneously use up to four high-quality multi-effects, which include reverb, delay, multi-band compressor, and various modulation-type effects. These can be used via an internal bus, or inserted into a desired channel. For the graphic EQ you can select either 31-band graphic EQ or Flex 15 GEQ. These can be inserted into the desired channel or output. The Flex 15 GEQ allows you to adjust the gain for any fifteen of the thirty-one bands. Since two Flex 15 GEQ units can be mounted in a single virtual rack, a total of up to sixteen graphic EQ units can be used simultaneously.

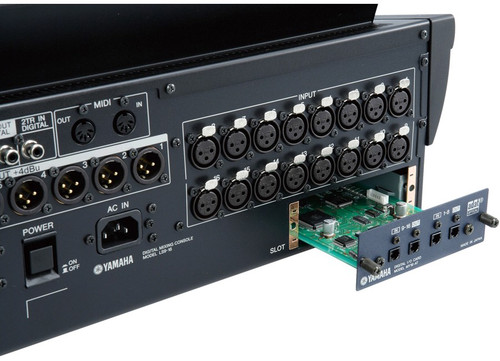

The rear panel provides one slot (LS9-16) or two slots (LS9-32) in which separately sold mini-YGDAI cards can be installed. AD cards, DA cards, or digital I/O cards can be installed in these slots to add inputs and outputs port.- Features
Features
- Lightweight and Compact for Superior Portability and Handling
- Choose the Model that Suits Your Needs
- No-compromise Analog Circuit Design Delivers the Best Sound in this Class

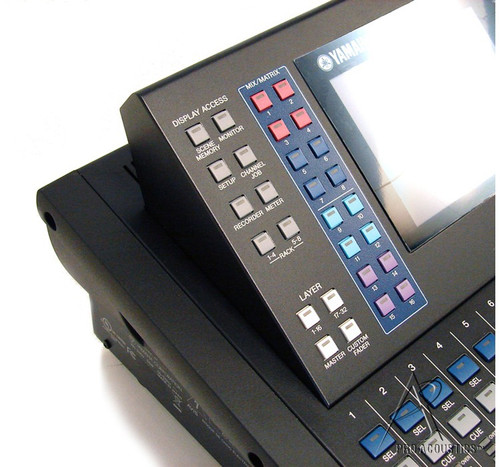

- Intuitive Interface
- 16 or 32 Mono Input Channels Plus 4 Stereo Input Channels expandable up to 32 or 64 channels in Two Layers
- Extensive Channel Functionality
- 16 Mix Buses, 8 Matrix Buses, Plus Stereo and Mono Buses with LCR Mode
- Virtual Rack with Top-quality Effects
- Recall Safe and Recall Focus…Right Down to Head Amp Gain
- USB Memory Recorder/Player for Convenient Recording and BGM or Effect Playback
- Detailed Access Management
- LS9 Editor Software for Enhanced Operability and Programmability
- Specification
Analog Input Characteristics Input Terminals INPUT 1-16 GAIN -62dB Actual Load Impedance 3kΩ For Use With Nominal 50-600 Ω Mics & 600 Ω Lines Input Level Sensitivity -82dBu (61.6μV) Nominal -62dBu (0.616mV) Max. before clip -42dBu (6.16mV) Connector XLR-3-31 type with latch (Balanced) Analog Output Characteristics Output Terminals OMNI OUT 1-16 Actual Source Imp. OMNI OUT: 75Ω PHONES OUT: 15Ω For Use With Nominal OMNI OUT: 600Ω Lines PHONES OUT: 8Ω Phones, 40Ω Phones Gain Switch +24dB (default), +18dB Output Level Nominal +4dBu (1.23 V) PHONES OUT 75mW65mW Max. before clip +18dBu (6.16V) PHONES OUT 150mW Connector XLR-3-32 type (Balanced), Stereo Phone Jack (TRS) (Unbalanced) Digital Input Characteristics Terminal 2TR IN DIGITAL, COAXIAL Format IEC-60958 Data Length 24bit Level 0.5Vpp/75Ω Connector RCA Pin Jack Digital Output Characteristics Terminal 2TR OUT DIGITAL, COAXIAL Format IEC-60958 Consumer Use Data Length 24bit Level 0.5Vpp/75Ω Connector RCA Pin Jack General Sampling Frequency Internal: 44.1kHz, 48kHz External: 39.69 - 50.88kHz Fader 100mm motorized x17 LCD Display 320 x 240 dots Graphic Color LCD Phantom Power 48V Power Requirements 95 W, 110–240 V, 50/60 Hz Temperature Range Operation free-air +10°C to +35°C Storage Temperature Range -20°C to +60°C Dimensions (H x W x D) 8.69" (220 mm) x 18.88" (480 mm) x 19.69" (500 mm) Net Weight 26.5 lbs (12 kg) - Reviews
