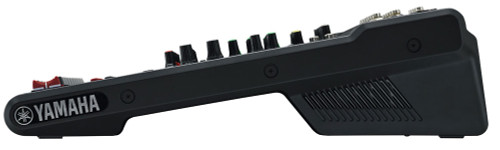

For a more precise control and enhancement of your sound, the Yamaha MG12XU 12-channel mixing console comes equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multi-effects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivaled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.
| Mixing Capability | |
|---|---|
| On-Board Processors | SPX algorithm: 24 programs, PARAMETER control: 1, FOOT SW: 1 (FX RTN CH on/off) |
| I/O | |
| Phantom Power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
| Input Channels | |
| Mono [MIC/LINE] | 4 |
| Mono/Stereo [MIC/LINE] | 2 |
| Stereo [LINE] | 2 |
| Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 2 |
| GROUP OUT | 2 |
| Bus | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) |
| Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu |
| COMP | Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec |
| COMP | Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
| General | |
| Total Harmonic Distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & Noise Level | |
| Equivalent Input Noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power Requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power Consumption | 22W |
| Others | Operating Temperature: 0 to +40°C |
| Dimensions (H x W x D) | 2.8" (118 mm) x 9.6" (308 mm) x 11.6" (422 mm) |
| Net Weight | 9.3 lbs (4.2 kg) |
