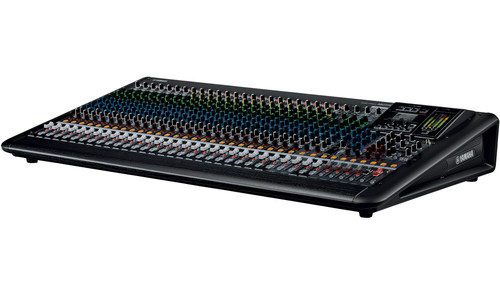

Yamaha MGP32X 32 Input 24 Mic Input Digital/Analog Mixer with USB Rec/Play and Effects (Discontinued)
Description
The latest addition to the ground-breaking MGP Series that created a new paradigm for compact mixers combining analogue authenticity with comprehensive digital capabilities. This console offers expanded mixing capabilities with more channels and three new digital features; USB device recording and playback, Graphic EQ and a multi-band compressor.
Drawing from our decades of experience crafting innovative, premium analog gear, we originally developed our new discrete Class-A microphone preamps for professional use in our high-end recording equipment. Utilizing an inverted Darlington circuit design, our newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ we've managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.
At the heart of the MGP's compact configuration, we've taken an innovative new approach to the utilization of digital technology in an analog mixer; adding high-resolution effects, iPod/iPhone integration and the superb functionality of our new Stereo Hybrid Channel to the warmth and musicality of premium analog sound.
Features
- 24 Mic Inputs with 48V Phantom Power and HPF per Channel
- 32 Line Inputs (24 mono and 4 stereo)
- 6 AUX Sends + 2 FX Sends
- 4 GROUP Buses + ST Bus
- 2 Matrix out
- 1 Mono out
Specifications
| Mixing Capability | |
|---|---|
| Mixing Channels | 32 Line Inputs (24 mono and 4 stereo) |
| GROUP | 4 GROUP Buses + ST Bus |
| AUX | 6 AUX Sends + 2 FX Sends |
| MATRIX | 1 Matrix out |
| On-Board Processors | FX1:REV-X (8 PROGRAM, PARAMETER control) / FX2:SPX (16 PROGRAM, PARAMETER control) |
| I/O | |
| Mic Inputs | MIC: 24 (INPUTS HPF: 100Hz 12dB/oct) |
| Phantom Power | 48V phantom power per channel |
| Line Inputs | LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo |
| Digital I/O | USB Device, iPod / iPhone |
| Total Harmonic Distortion | 0.02% (20Hz-20kHz@ +14dBu) |
| Frequency Response | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz |
| Hum & Noise Level | |
| Equivalent Input Noise | -128 dBu Equivalent Input Noise |
| Residual Output Noise | -94 dBu Residual Output Noise |
| Crosstalk | -74dB @ 1kHz |
| Power Requirements | 100-240V 50Hz/60Hz |
| Power Consumption | 86W max |
| Dimensions (H x W x D) | 6.7" (169 mm) x 40.4" (1027 mm) x 22.2" (565 mm) |
| Net Weight | 41.9 lbs (19 kg) |
