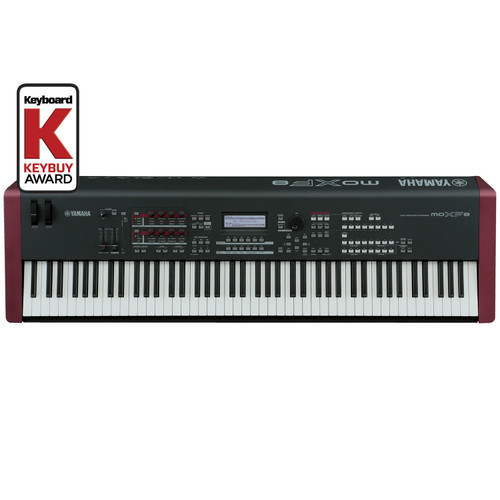

The Yamaha MOXF8 88-Key Weighted Synthesizer is a convenient tool which lets you edit and save the various parameters of your MOXF8 tone generator. These include Voice and Mixing parameters (edited in the Voice or Mixing mode of the MOXF8) such as Volume, Pan, EG, and Cutoff and other settings. Thanks to its easy-tounderstand graphical interface, you can edit various parameters of the MOXF8 right from your computer — using the mouse to adjust the virtual knobs, sliders, and buttons and entering values from the computer keyboard. Finally, all the changes you have made can be saved to your computer or transmitted to the MOXF6/MOXF8 instrument.
The MOXF8 Editor, based on the “VST3 technology” by Steinberg, works as a VST3 plug-in with the Cubase series. The MOXF8 Editor also works as the same way as other VST instrument software, allowing you to save the edited settings of the MOXF8, or use them for another project. In addition, you can handle the MOXF8 Voices in the Media Bay window in Cubase series when using the MOXF8 Editor with Cubase series, allowing you to search for, listen, and load the MOXF8 Voices within Media Bay in Cubase series. The MOXF8 Editor provides a comprehensive and seamless music production environment — making the use of hardware and software both easier and much more efficient. And, the MOXF8 Editor can also be used as a stand-alone application. The MOXF8 Editor lets you adjust the hue as desired.
| Keyboards | |
|---|---|
| MOXF8 | 88 keys, GHS keyboard (Initial Touch) |
| Tone Generator | |
| Tone Generator | AWM2, with Expanded Articulation |
| Maximum Polyphony | 128 notes |
| Multi Timbral Capacity | 16 parts (Internal), A/D input part |
| Wave | 741MB (when converted to 16-bit linear format), 3,977 waveforms |
| Voices | Preset: 1,152 Normal Voices + 72 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 384 Normal Voices + 32 Drum Kits |
| Performance | User: 256 (up to 4 parts) |
| Filter | 18 types |
| Effects | Reverb x 9 types, Chorus x 22 types, Insertion (A, B) x 54 types x 8 parts, Vocoder x 1 (uses both Insertion Effect A and B blocks), Master Effect x 9 types, Master EQ (5 bands), Part EQ (3 bands, stereo) |
| Sequencer | |
| Note Capacity | Approx. 226,000 notes |
| Note Resolution | 480 ppq (parts per quarter note) |
| Maximum Polyphony | 124 notes |
| Tempo (BPM) | 5 – 300 |
| Song recording type | Real time replace, Real time overdub (with the exception of the Pattern Chain), Real time punch in/out (Song only), Step (with the exception of the Pattern Chain) |
| Song tracks | Song: 16 sequence Tracks (Loop on/off can be set for each Track), Tempo Track, Scene Track , Pattern: 16 Phrase Tracks , Pattern Chain: Pattern Track, Tempo Track, Scene Track |
| Songs | 64 Songs, Mixing Voices: 16 Voices per Song/Pattern (up to 256 Voices) , Mixing Templates: 32 for all Songs and Patterns |
| Patterns | 64 Patterns (x 16 sections), Measures: 256 maximum |
| Phrases | User Phrases: 256 per Pattern |
| Arpeggio | Preset: 7,981 types, User: 256 types (MIDI Sync, MIDI transmit/receive channel, Velocity Limit, and Note Limit can be set. 4 Arpeggio parts can be played simultaneously.) |
| Scene Memory | 6 per Song |
| Sequence formats | Original format, SMF format 0, 1 (Format 1 load only) |
| Other | |
| Master | User:128 (Each master includes Master keyboard settings with 4 Zones, Assignable Knob settings, Program Change table.) |
| Sequence Software compatible with the Remote Control function | For Windows®: Cubase 7 series, SONAR X2, For Mac®: Cubase 7 series, Logic Pro 9, Digital Performer 7 (Functions to be controlled differ depending on the software.) |
| Controllers | Pitch Bend wheel, Modulation wheel, Assignable Knob x 8, [DATA] dial x 1, Assignable Function buttons x 2 |
| Display | 240 x 64 dot, backlit LCD |
| Connectors | OUTPUT [L/MONO]/[R] (standard phone jack), A/D INPUT [L]/[R] (standard phone jack), [PHONES] (standard stereo phone jack), [FOOT CONTROLLER], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], MIDI [IN]/[OUT]/[THRU], USB [TO HOST]/[TO DEVICE], DC IN |
| Power Supply | 13W |
| Accessories | AC adaptor (PA-150 or an equivalent recommended by Yamaha), USB cable, Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), CUBASE AI DOWNLOAD INFORMATION |
| Size/ Weight | |
| Dimensions (H x W x D) | 6.6" (168mm) x 52" (1,320mm) x 16" (405mm) |
| Weight | 32.8 lbs (14.9 kg) |
